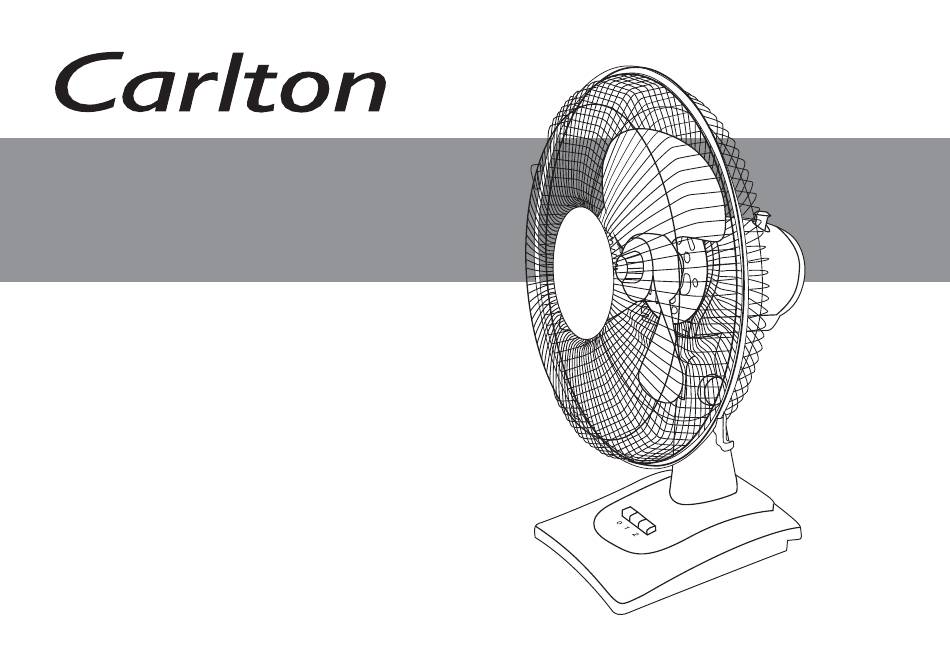

- Page 1 9" Desk Fan FW9D Instruction Book...

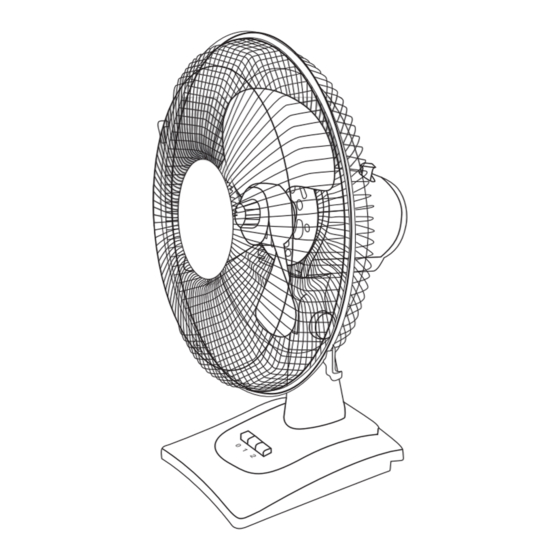

- Page 2 Getting to know your desk fan Please read these instructions and have a good look at the illustrations before using your desk fan. Rear guard Front guard Oscillating pin Power cord On / off and speed buttons We continually strive to improve our products, specifications may change without prior notice...
- Page 3 Safety first ! Your desk fan should be used in such a Your desk fan should be unplugged way that it is protected from moisture. e.g. from the wall socket when left unused condensation, splashed water etc for a long time. Stand your desk fan on a stable, level Your desk fan should be placed away surface during use.
- Page 4 How to assemble your desk fan Rear Guard Screw Front Guard Blade Plastic nut Oscillating pin Screw cover Make sure Motor your desk fan is unplugged Adjusting Knob before you Base attempt to assemble Power Cord On / off and speed button Push the BLADE onto the MOTOR Align the rear guard with the three Tighten the screw cover to secure...
- Page 5 Fit the front guard by securing it with Insert a screw into the hole at the the three locking grips. Ensure that top of the fan guards and tighten the hole is aligned at the top of the with a nut. fan.
- Page 6 How to use your desk fan Ensure the fan is switched off at the control switch before inserting the plug into the mains socket. Plug into a mains socket and To make the fan move from side to switch on at the wall. side, push the OSCILLATING PIN into the MOTOR HOUSING.
- Page 7 Cleaning Specifications Always unplug your desk fan from the mains supply Supply..230V~ 50Hz Power before attempting cleaning. Do not use harsh cleaners Rated Power ..25W or solvents on the fan as they may damage the casing. The fan blade and body of the unit should be cleaned using a cloth dampened with warm water and detergent.
