Summary of Contents for Brandt BWF5712A

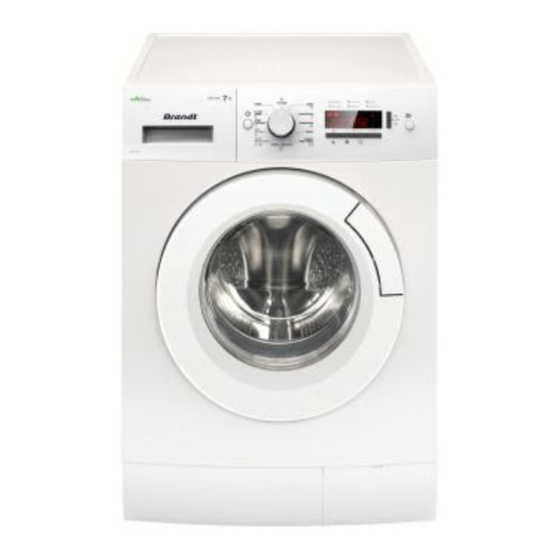

- Page 1 User Manual Washing Machine BWF5712A BWF5714A...
- Page 2 Contents Contents ....................................2 Safety Warning ..................................3 Unpacking .................................... 6 Installation ................................... 7 Installing Your Washing Machine ............................7 Choosing the Right Location for Your Washing Machine ......................... 7 Moving and Installing ................................. 8 Removing the Transit Bolts ....................................8 Moving the Washing Machine from One Location to Another ......................
- Page 3 Safety Warning For your continued safety and to • Keep burning objects such as reduce the risk of injury or electric candles or cigarettes, away from shock, please follow all the safety the washing machine. They may precautions listed below. cause a fire or damage.
- Page 4 Power Source and Cable • Make sure your home voltage matches the voltage displayed on • Use an independent household the washing machine. If you are dedicated mains socket, rated not sure, contact an electrician. at 10 Amp 220V to 240V AC. If the washing machine is plugged • The mains plug must remain in with other appliances, it may...
- Page 5 WARNING • Do not dismantle, repair or modify the washing machine. IT IS HAZARDOUS FOR The washing machine could ANYONE OTHER THAN malfunction and cause a fire or AUTHORISED SERVICE injury. PERSONNEL TO CARRY OUT • This appliance is not intended SERVICING OF REPAIRS for use by persons (including WHICH INVOLVE THE...
- Page 7 Installation INSTALLATION Installing Your Washing Machine Please read and follow the instructions carefully. • In addition to the instructions mentioned here, special regulations of the relevant water and power supply companies may apply. If in doubt, have the washing machine connected by a qualified technician.
- Page 8 INSTALLATION Moving and Installing Removing the Transit Bolts Four transit bolts keep the interior of the washing machine in place while it’s being moved. They need to be removed before installation. Use a spanner (not supplied) and follow the instructions detailed below. Don’t run the washing machine without removing the transit bolts, as this can cause excessive vibrations and may damage your machine.
- Page 10 INSTALLATION Connecting the Water Supply Hose 1. To prevent leakage from the connection 3/4” 3/4” joints, ensure the rubber washer seals are fitted to each end of the water supply min. 10 mm min. 10 mm hose. Do not use without the seals in Plastic joint place.
- Page 11 INSTALLATION Connecting to the Mains Supply For your safety: • Do not use a mains plug adapter or extension cable. • If the mains cable or mains plug are damaged, stop using them and call a qualified technician for assistance. • An earthed plug has been attached to the power cable of your washing machine.
- Page 12 Product Overview The unit Detergent Control Panel Compartment Door Handle Window Service Panel...
- Page 14 Preparation Read the following to understand how best to prepare your laundry for washing. Organising Laundry • Read the washing label on each garment to help you sort your washing into different loads. • Sort the laundry by colour, type of fabric and by how soiled it is. This will help you choose the correct programme and temperature for each wash.
- Page 15 7.0kg 7.0kg 3.5kg 2.0kg Delicate 2.5kg...
- Page 18 Muting & Turning On the Sound • The machine will beep. • To mute the sound, press “TEMP” for 3 Seconds after starting the wash programme. • To turn on the sound, press “TEMP” again for 3 seconds. The setting will be kept until the next programme. Important Information Washing Delicates (Wool and Silk Programmes) These programmes rock the drum gently for best results on delicate laundry.
- Page 20 Maintenance - Cleaning the Washing Machine Always unplug the washing machine before cleaning. Cleaning the Drum Any rust left inside the drum by metal articles must be removed immediately with chlorine-free detergent. Never use steel wool. Don’t put laundry in the washing machine during the drum cleaning. Cleaning the Exterior of your Washing Machine • Clean the outside of your washing machine with a soft cloth and mild detergent such as kitchen detergent.
- Page 21 Cleaning the Drain Filter Be careful not to burn yourself while cleaning the drain filter. Water draining from the filter compartment may be hot after a high temperature wash. Before cleaning the drain filter, switch off and unplug the washing machine. 1.
- Page 22 Hints and Tips Issues Solutions Buttons don’t work • Child lock is activated. Deactivate the child lock function. • The washing machine is operating a wash programme. • The Programme Dial was turned to a different programme. Door doesn’t open • Door lock may be active.
- Page 23 There’s not much foam. • This can happen if you’ve put powder detergent directly into the drum – you must put it in the detergent drawer. • The amount of foam can vary, depending on the temperature, level and softness of your water. • You may not be using enough detergent.
- Page 24 Questions and Answers Issues Reasons Solutions • Check if the door is closed tightly. • Check if power plug is inserted well. Washing machine cannot • Check if water supply tap is opened. start up • Check if button Start/Pause is pressed. • Check if button Power is pressed.
- Page 25 Models BWF5712A BWF5714A Washing Capacity 7.0kg 7.0kg Dimension(W *D*H) 595*495*850 595*495*850 Net Weight 61kg 61kg Gross Weight 65kg 65kg Rated Power 1950W 1950W Pow er Supply 220-240V~,50Hz 220-240V~,50Hz Rated Current Standard Water Pressure 0.05MPa~1MPa 0.05MPa~1MPa 1200 1400...
- Page 26 Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct to your door the very next day. Visit www.partmaster.co.uk or call 0844 800 3456 (UK customers only) Calls charged at National Rate. This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste.
