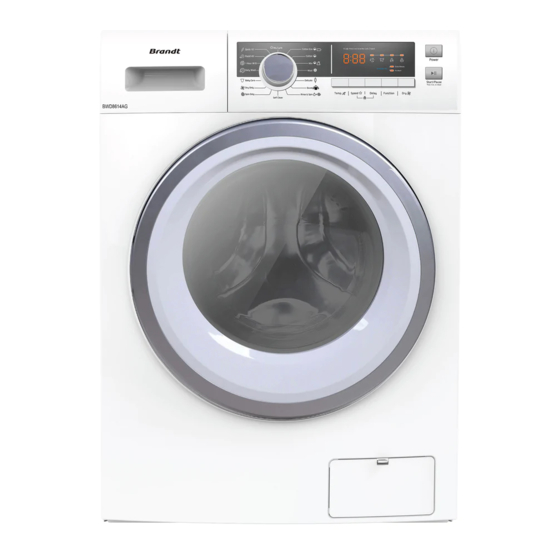

- Page 1 BWD8614AG...
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS Safety Instructions ..........INSTALLATION Installation ............Product Description ..........OPERATIONS Quick Start ............. Before Each Washing ..........Detergent Dispenser ..........Control Panel ............Option..............Other Functions ............Programmes............Washing Programmes Table ........MAINTENANCES Cleaning And Care ..........Trouble Shooting ............ -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS Safety Instructions For your safety,the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury or loss of life. Explanation of the symbols: ！ Warning! This combination of symbol and signal word indicates a potentially dangerous situation which may result in... - Page 4 SAFETY INSTRUCTIONS • Always unplug the machine and turn off the water supply after use. The max. inlet water pressure, in pascals. The min. inlet water pressure, in pascals. • To ensure your safety, power plug must be inserted into an earthed three-pole socket.
- Page 5 SAFETY INSTRUCTIONS • Glass door may be very hot during the operation. Keep kids and pets far away from the machine during the operation very wet rooms as well as in the rooms with explosive or caustic gas. • Remove all packages and transport bolts before using the appliance.
- Page 6 SAFETY INSTRUCTIONS hot water and cold water supply. • Plug must be accessible after installation. • The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the washer dryer. •...
- Page 7 SAFETY INSTRUCTIONS • Before washing the clothes at first time, the product shall be operated in one round of the whole procedures without the clothes inside. • Flammable and explosive or toxic solvents are forbidden. Gasoline and alcohol etc.Shall not be used as detergents. Please only select the detergents suitable for machine washing, especially for drum.
- Page 8 SAFETY INSTRUCTIONS • Items such as foam rubber (latex foam), shower caps, water proof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the machine. • Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.
-
Page 9: Installation
INSTALLATION Installation Installation area ！ Warning! • Stability is important to prevent the product from wandering! • Make sure that the product should not stand on the power cord. W> 20mm Before installing the machine, the location characterized follows shall be selected: 1.Rigid, dry, and level surface 2.Avoid direct sunlight 3.Sufficient ventilation... -
Page 10: Product Description
INSTALLATION Product Description Top cover Water supply hose Control panel Power supply cord Detergent dispenser Drum Door Service filter Drain hose Note! • The product line chart is for reference only, please refer to real product as standard. Accessories Transport Drain hose support Owner’s manual... - Page 11 INSTALLATION Levelling the washer dryer ！ Warning! • The lock nuts on all four feet must be screwed tightly against the housing. Check if the legs are closely attached to the cabinet. If not, please turn them to their original positions tighten the nuts. 2.Loosen the lock nut turn the feet until it closely contacts with the floor.
- Page 12 INSTALLATION Connect the other end of inlet pipe to the inlet valve at the backside of product and fasten the pipe tightly clockwise. water supply hose water Inlet valve Drain Hose ！ ！ Warning! Warning! • Do not kink or protract the drain hose. •...
-
Page 13: Operations
OPERATIONS Quick Start Caution! • Before washing, please make sure it’s installed properly. • Before washing at first time, the washing machine shall be operated in one round of the whole procedures without clothes in as follows. 1. Before Washing Main wash Softener... -
Page 14: Before Each Washing
OPERATIONS Before Each Washing • The working condition of the washer should be(0-40) °C .If used under 0 °C ,the inlet valve and draining system may be damaged. If the machine is placed under condition of 0 °C or less, then it should be transferred to normal ambient temperature to ensure the water supply hose and drain hose are not frozen before use. -
Page 15: Detergent Dispenser
OPERATIONS Detergent Dispenser Pre wash detergent Main wash detergent Softener Dam-board Dam-board Liquid detergent Powder detergent Pull out the dispenser Caution! • Detergent only need to be added in "case I “after selecting pre-washing for machines with this function. Programme Programme Cotton Dry Only... -
Page 16: Control Panel
OPERATIONS Control Panel 1 1 1 Note! • The chart is for reference only, Please refer to real product as standard. Power Start/Pause Product is switched Power. Press the button to start or pause the washing cycle. Programmes Option Available according to the laundry type. This allows you to select an additional function and will light when selected. - Page 17 OPERATIONS Option Delay Set the Delay function: 1. Select a programme 2.Press the Delay button to choose the time(the delaying time is 0-24 H.) 3.Press [ Start/Pause ] to commence the delay operation Delay On/Off Setting time Start Choose the Programme (Power) Cancel the Delay function: Press the [Delay] button until the display be 0H.It should be pressed before...
- Page 18 OPERATIONS Dry Level Press the Dry button continuously to choose the dry level: Extra Dry/Normal Dry/ Gentle Dry. Extra Dry:Need to wear clothes immediately ,we can choose this function Normal Dry:The normal dry procedure Gentle Dry:Only to dry slightly and then is just ok . Note! •...
-
Page 19: Other Functions
OPERATIONS Other functions Mute the buzzer Temp. On/Off (Power) Press the [Temp.]button for 3sec.the buzzer is mute. To act the buzzer function, press the buttons again for 3 seconds. The setting will be kept until the next reset. Caution! • After ting the buzzer function, the sounds will not be activated any more. -
Page 20: Programmes
OPERATIONS Programmes Programmes are available according to thelaundry type. Programmes Cotton Hard-wearing textiles, heat-resistant textiles made of cotton or linen. Cotton ECO To increase the washing effects, washing time is increased. Synthetic Wash synthetic articles, for example: shirts, coats, blending. While washing the knitting textiles, detergent quantity shall be reduced due to its loose string construction and easily forming bubbles. - Page 21 OPERATIONS Programmes Programmes are available according to thelaundry type. Programmes Self Clean Specially set in this machine to clean the drum and tube. It applys 90 °C high temperature sterilization to make the clothes washing more green. When this programme is performed, the clothes or other washing cannot be added.
-
Page 22: Washing Programmes Table
OPERATIONS Washing Programmes Table Washing/Drying Load Programme Temp. °C Default Time (H) (kg) 10.0 Default 10.0 10.0 1400 1600 Cotton ECO 10.0 1:07 1:07 Sport Wear – – – 1:19 Quick(15') 0:15 0:15 Cold Cold Delicate 1:00 1:00 Wool 1:07 1:07 Colors –... -
Page 23: Maintenances
MAINTENANCES Cleaning The Inlet Filter Note! • Inlet filter must be cleaned if there is less water. Washing the filter in the tap 1.Close the tap. 2.Remove the water supply hose from the tap. 3.clean the filter. 4.Reconnect the water supply hose Washing the filter in washer dryer: 1.Screw off the inlet pipe from the backside of the machine. - Page 24 MAINTENANCES Cleaning Drain Pump Filter ！ Warning! • Be careful of the hot water! • Allow detergent solution to cool down. • Unplug the machine to avoid electrical shock before washing. • Drain pump filter can filter the yarns and small foreign matters from the washing.
-
Page 25: Trouble Shooting
MAINTENANCES Trouble Shooting The start of the appliance does not work or it stops during operation. First try to find a solution to the problem, If not, contact the service centre. Description Reason Solution Washer dryer Restart after the door is closed Door is not closed properly cannot start up Check if the clothes is stuck... -
Page 26: Technical Specifications
MAINTENANCES Technical Specifications MAX.Current Standard Water Pressure 0.05MPa~1MPa Model BWD8614AG Power Supply 220-240V~,50Hz Washing Capacity 8.0kg Drying Capacity Dimension(W*D*H) 595*475*850 Weight 64kg Rated Power 1900W Drying Power 1300W 10 24 10 25... -
Page 27: Product Fiches
MAINTENANCES Product Fiches Model BWD8614AG Washing Capacity Drying Capacity 1400 rpm Spin Speed Energy efficiency class Energy consumption of per cycle 5.44kwh/Cycle (to wash and dry a full capacity wash load at 60°C) Water consumption of per cycle(Total) 152 L/cycle... - Page 28 MAINTENANCES Note! • Programme setting for testing in accordance with applicable standard EN 50229:2015+Commission Directive 96/60/EC. • When using the test programmes, wash the specified load using the maximum spin speed. • The actual parameters will depend on how the applicance is used,and maybe different with the parameters in above mentioned table.
