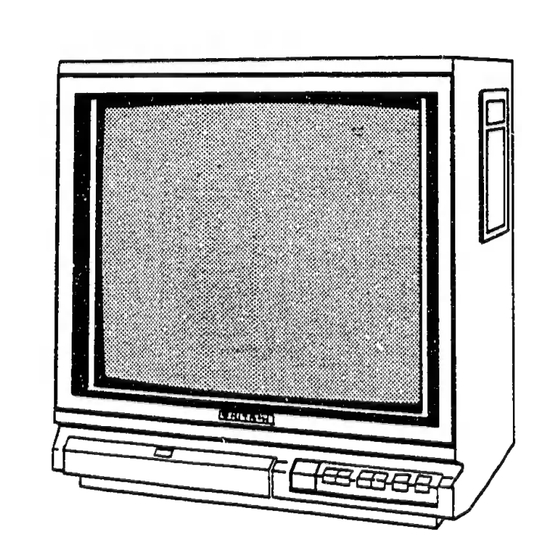

Hitachi CT2000S Service Manual

CT2000S
CT2000W
This service manual shows only essential items.
Our complete service manual including "alignment proce-
dure', and ''technical information" are issued by manual
No. 895.
CAUTION: Before servicing this chassis, it is important that the service technician read the "Safety
Precaution" and ''Product Safety Notices" in this Service Manual.
CONTENTS
SAFETY PRECAUTIONS...............0 005 2
PRODUCT SAFETY NOTICE............. 005 3
TECHNICAL SPECIFICATIONS .............. 3
TECHNICAL CAUTIONS ............0..0 005 4
CONTROES tae t% ne oe nae oF Cad aad 5
OPERATING SUMMARY............0.00 006 6
WIRING DIAGRAM ....... 00.00. e ener es 8
TUNER CIRCUIT DIAGRAM................ 9
BASIC CIRCUIT DIAGRAM ................ (271
PRINTED WIRING BOARD................- 19
REPLACEMENT PARTS LIST ............00. 31
SPECIFICATIONS AND PARTS ARE SUBJECT TO CHANGE FOR IMPROVEMENT
COMPONENT COLOR TELEVISION
October 1983 YOKOHAMA WORKS
