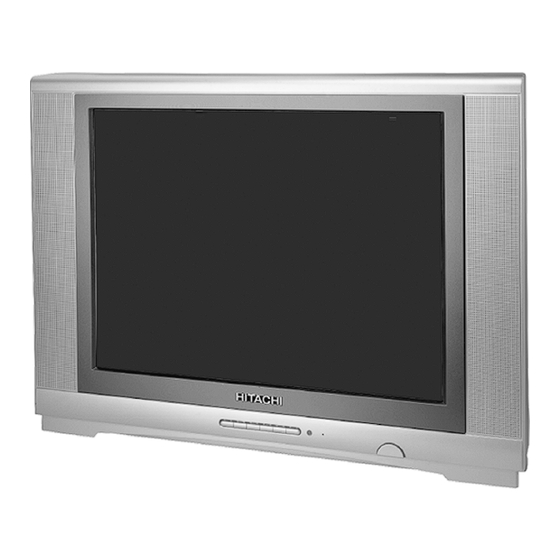

- Page 1 Hitachi Colour TV C29-F880S C29-F880SN C29-F880SNT...
-
Page 2: Table Of Contents
Thank you for purchasing this colour TV. Please read this instruction manual carefully before using the TV, especially the Safety Precautions in page 3-4. Keep it carefully for future reference. CONTENTS SAFETY PRECAUTIONS SETUP Insert The Batteries FUNCTIONAL PARTS Front View of TV Set Rear View of TV Set Side Panel of TV Set Remote Control Unit... -
Page 3: Safety Precautions
SAFETY PRECAUTIONS MAINTENANCE When the power cord or plug is damaged or frayed, unplug this TV from the wall outlet and refer servicing to qualified service personnel. Do not overload wall outlets and extension cords as this can result in fire or electric shock. - Page 4 MAINTENANCE Choose a place where light (artificial or sunlight) does not shine directly on the screen. If the set does work properly: If you are unable to restore normal operation by following TROUBLESHOOTING section in your operating manual, do not attempt any further adjustment.
-
Page 5: Setup
SETUP Insert The Batteries Remove the battery cover by pressing it and sliding it down. Insert the two 1.5V (AAA size) batteries making sure the polarity (+ or -) of the batteries matches the polarity marks inside the unit. Replace the battery cover by sliding it in until you hear a click sound. Precautions when using batteries Do not use old and new batteries together. -
Page 6: Functional Parts
FUNCTIONAL PARTS To turn the TV power ON Press the power switch on the TV set to switch on the TV. When the TV set is ON ,the power indicator lights up dimly in red. Standby Mode At standby mode, the power indicator lights up brightly in red. You can switch on the TV set or switch it to standby mode using the remote control unit. -
Page 7: Rear View Of Tv Set
Rear View of TV Set 1. YCbCr IN Terminals (YUV) Antenna Input Socket (75 Ohm) 3. S-Video In Terminals 4. AV IN 1 Terminals 5. AV OUT Terminals 6. AC Power Cord YCbCr IN AUDIO LEFT Side Panel of TV Set 1. -
Page 8: Remote Control Unit
Remote Control Unit SOUND SLEEP SYS. RECALL SOUND MODE PIC. TV/AV MODE --/--- LANG. SOUND PIC. SETUP TUNE REVEAL U.N.L HOLD SUBPAGE CLOCK GAME LST-CH TV/TEXT TYPE SUBTITLE CANCEL POWER ON / STANDBY button Press this button to switch on the TV when at standby mode or vice versa. - Page 9 Remote Control Unit SOUND SLEEP SYS. RECALL SOUND MODE PIC. TV/AV MODE --/--- LANG. SOUND PIC. SETUP TUNE REVEAL U.N.L HOLD SUBPAGE CLOCK GAME LST-CH TV/TEXT TYPE SUBTITLE CANCEL MUTE button Press once to mute the sound. Press again to restore the sound volume. RECALL button Press this button to display the settings on the screen.
- Page 10 Remote Control Unit SOUND SLEEP SYS. RECALL SOUND MODE PIC. TV/AV MODE --/--- LANG. SOUND PIC. SETUP TUNE REVEAL U.N.L HOLD SUBPAGE CLOCK GAME LST-CH TV/TEXT TYPE SUBTITLE CANCEL NOTE Only applicable to models with NICAM and Sound Multiplex function only. See "Teletext Operations"...
-
Page 11: Teletext Operations
TELETEXT OPERATIONS For models with Teletext function only. This page shows the function of the buttons on the remote control unit when in Teletext mode. SOUND SLEEP SYS. RECALL SOUND MODE PIC. TV/AV MODE --/--- LANG. SOUND PIC. SETUP TUNE REVEAL U.N.L HOLD... - Page 12 SOUND SLEEP SYS. RECALL SOUND MODE PIC. TV/AV MODE --/--- LANG. SOUND PIC. SETUP TUNE REVEAL U.N.L HOLD SUBPAGE CLOCK GAME LST-CH TV/TEXT TYPE SUBTITLE CANCEL HOLD button Press this button to hold the Teletext page on display to prevent the page from changing. Press again to release the hold state.
-
Page 13: Menu Screens
MENU SCREENS This TV set allows you to adjust any settings by selecting from the menu screens. SOUND PIC. SETUP TUNE REVEAL U.N.L HOLD SUBPAGE TV/TEXT CLOCK GAME LST-CH TYPE SUBTITLE CANCEL This menu allows you to adjust the picture settings [PICTURE]menu according to your preference. -
Page 14: Sound Menu
This menu allows you to adjust the sound settings according to your [SOUND] menu preference. Press the SOUND VOLUME BASS Select the desired item using the TREBLE BALANCE TRUBASS SURROUND Use the Press the to TV mode. Selected Items Functions VOLUME Adjust volume level. -
Page 15: Setup Menu
This menu allows you to adjust the various setup functions. [SETUP] menu Press the directly. SETUP Select the desired item using the LANG. ENGLISH BACKGROUND NOISE REDUCE CHILD LOCK Use the Press the to TV mode. Selected Items Functions LANG. Select the on-screen display language. -
Page 16: Exchange Menu
This menu allows you to arrange channel numbers by [EXCHANGE] exchanging between 2 preset channel numbers. menu Press the EXCHANGE PROGRAM Select the first PROGRAM item using the PROGRAM EXCHANGE Use the want to exchange from. Select the second PROGRAM item using the Use the want to exchange to. -
Page 17: Troubleshooting
TROUBLESHOOTING The following problems do not always indicate a hardware failure. Therefore, please use the troubleshooting guide below before calling for repair service. If, after following the guide none of the remedies work, unplug the TV set and call for service. GHOST: Please change the direction, height or position of... - Page 18 Please make these simple checks as indicated ( ) on the chart for the respective symptoms and their possible remedies. Symptoms No picture, no sound Poor sound, picture OK Poor picture, sound OK Weak picture Blurred picture Double image Lines in picture Distorted picture Weak reception on some channels Horizontal bars...
-
Page 19: Specifications
Teletext function will only operate in countries where Teletext transmission service is available. If such transmission is unavailable (e.g. in Hong Kong), Teletext function will not operate. C29-F880S C29-F880SN 74 cm (29 inch) diagonal Please refer to the values as indicated on the rating label pasted at the back of the TV set.
