MILI23
MANUAL
V1.1

Advertisement

loading
Need help?

Need help?

Do you have a question about the MILI23 and is the answer not in the manual?

Questions and answers

Related Manuals for Axair MILI23

Summary of Contents for Axair MILI23

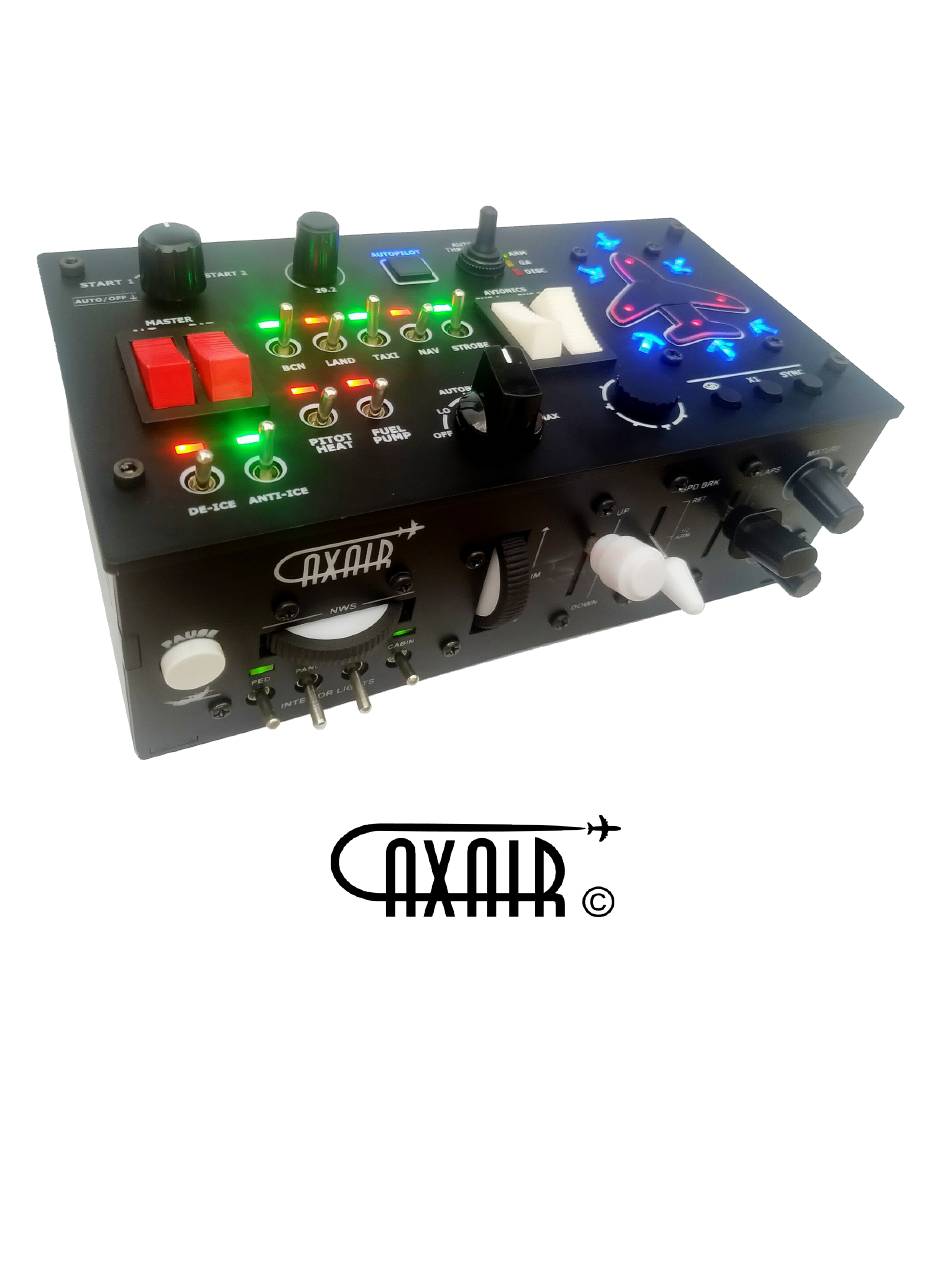

  • Page 1 MILI23 MANUAL V1.1...
  • Page 2 2. Detailed Feature Overview • Universal Compatibility • Engineering • Streamlined Design • Customizable Options • Perfect Pairing: AXAIR MILI23 & MIAP Integration 3. Getting Started • Unboxing Your AXAIR MILI23 • Installation • Initial configuration 4. Assigning Controls in Simulation Software •...
  • Page 3 Compatibility The MILI23 is compatible with major simulation software on both PC and gaming consoles. It serves as a versatile tool for flight simulation, designed as a universal gamepad and keyboard emulator to ensure accessibility across different platforms. This design philosophy aims to enhance the accessibility of flight simulation on both PC and Gaming Console, without positioning itself as a brand-specific controller.
  • Page 4 • Detailed Adjustment Controls: Dials and levers allow for precise control over flight settings, including barometric pressure and propeller pitch/RPM. Streamlined Design The MILI23's ergonomic layout is designed for intuitive access to essential flight controls, reducing the learning curve and enhancing the user experience for pilots of all skill levels. Customizable Options •...
  • Page 5 This integration ensures a streamlined experience, as MSFS for Xbox recognizes them not as separate controllers but as a single keyboard input. • Distinct Controllers for PC: On PC, the MILI23 and MIAP PRO 24 iswitched to PC mode are recognized as separate gamepad controllers, allowing for individual configuration and customization to suit any flight scenario or preference, offering precision and adaptability.
  • Page 6 Installation PC and Xbox Connectivity 1. Connect the AXAIR MILI23 to Your Device: Use a USB-C cable to connect the MILI23 to your PC or Xbox. Ensure the connection is secure for optimal performance. 2. Device Recognition: Your device should automatically recognize the AXAIR MILI23 for PC but on the Xbox it will merge with your existing keyboard or a keyboard will show up if other keyboards are connected to the Xbox.
  • Page 7 The AXAIR MILI23, when used with MSFS on Xbox, is recognized as a general keyboard. This unique setup means you’ll be mapping actions to your MILI23 as though it were a keyboard, using its buttons, dials, and switches to control your flight. "As you familiarize...
  • Page 8 While a recommended initial setup is provided, you have the flexibility to customize your control assignments. 1. Navigate to Controls: Within MSFS, go to the "Controls Options" menu. Your MILI23 is shown only as "Keyboard," representing its input method. Remember that only 1 keyboard can show up in MSFS so if you already use a keyboard no additional keyboard will show up in the settings menu.
  • Page 9 MSFS will prompt you to press a key, at which point you’ll press the corresponding control on your MILI23. 4. Scan Your Control: Press the MILI23 control you wish to use for the selected action. MSFS recognizes this as a keyboard key press, assigning the action to that control. If not shown up correctly try again.
  • Page 10 Recommended initial assignments for Xbox version of Microsoft Flight simulator SYNC BUTTON EXTERIOR LIGHTS • BEACON LIGHTS • LANDING LIGHTS • TAXI LIGHTS • NAV LIGHTS • STROBE LIGHTS INTERIOR LIGHTS • PEDESTAL LIGHT SWITCH • PANEL LIGHT SWITCH • GLARESHIELD LIGHT SWITCH •...
  • Page 11 • How: After loading your flight, the airplane's configuration may not match the position of the switches and levers on the MILI23. To synchronize the cockpit with the MILI23, simply press the sync button once and watch the airplane configure itself to the settings of the controller.
  • Page 12 EXTERIOR LIGHTS BEACON LIGHTS ON • What It Does: Activates the beacon light on the aircraft's tail, signaling its presence to others on the ground. • SCANRESULT: ; + LEFT_SHIFT + RIGHT_ALT BEACON LIGHTS OFF • What It Does: Deactivates the beacon light. •...
  • Page 13 LANDING LIGHTS ON • What It Does: Turns on the landing lights, enhancing visibility during approach and landing. • SCANRESULT: ; + LEFT_CTRL + RIGHT_ALT LANDING LIGHTS OFF • What It Does: Turns off the landing lights. • SCANRESULT: ; + LEFT_ALT + RIGHT_ALT...
  • Page 14 TAXI LIGHTS ON • What It Does: Activates the taxi lights, providing illumination for ground movement. • SCANRESULT: / + LEFT_SHIFT + LEFT_ALT TAXI LIGHTS OFF • What It Does: Deactivates the taxi lights. Taxi lights are a bright light mounted in the wings or landing gear to light up the runway when you start taxiing.
  • Page 15 NAV LIGHTS ON • What It Does: Activates the navigation lights, improving the aircraft's visibility to other aircraft. • SCANRESULT: . + LEFT_ALT NAV LIGHTS OFF • What It Does: Deactivates the navigation lights. • SCANRESULT: . + RIGHT_ALT...
  • Page 16 STROBES ON • What It Does: Activates the strobe lights, providing additional visibility to other aircraft. • SCANRESULT: . + LEFT_SHIFT + LEFT_CTRL STROBES OFF • What It Does: Deactivates the strobe lights. • SCANRESULT: . + LEFT_SHIFT + LEFT_ALT...
  • Page 17 INTERIOR LIGHTS PEDESTAL LIGHTS ON • What It Does: Activates the pedestal lights, illuminating the aircraft's control pedestal. • SCANRESULT: p + LEFT_ALT PEDESTAL LIGHTS OFF • What It Does: Deactivates the pedestal lights. • SCANRESULT: j + RIGHT_ALT PANEL LIGHTS ON •...
  • Page 18 GLARESHIELD LIGHTS ON • What It Does: Activates the glareshield lights, illuminating the glare shield area of the cockpit. • SCANRESULT: j + LEFT_SHIFT + RIGHT_ALT GLARESHIELD LIGHTS OFF • What It Does: Deactivates the glareshield lights. • SCANRESULT: j + LEFT_CTRL + LEFT_ALT CABIN LIGHTS ON •...
  • Page 19 INSTRUMENTS & SYSTEMS SET STARTER 1 (HOLD) (Turn the Starter Knob to the left) • What It Does: Engages the starter motor for engine 1, which cranks the engine until it starts running under its own power. • SCANRESULT: , + LEFT_SHIFT SET STARTER 2 (HOLD) (Turn the Starter Knob to the left) •...
  • Page 20 ALTERNATOR ON • What Does: Activates the alternator, providing electrical power to the aircraft's systems and recharging the battery. • SCANRESULT: ; + LEFT_CTRL + RIGHT_ALT MASTER BATTERY ON What It Does: Connects the battery to the electrical system, powering up essential aircraft electrical components.
  • Page 21 AVIONICS MASTER 1 ON • What It Does: Powers up avionics system 1, enabling communication, navigation, and other electronic instruments. • SCANRESULT: ; + LEFT_ALT AVIONICS MASTER 2 ON • What It Does: Powers up avionics system 2, enabling communication, navigation, and other electronic instruments.
  • Page 22 ANTI-ICE/DE-ICE SET WINDSHIELD DEICE ON • What It Does: Activates the windshield DE-icing system, preventing ice buildup on the windshield. • SCANRESULT: , + LEFT_ALT + RIGHT_ALT SET WINDSHIELD DEICE OFF • What It Does: Deactivates the windshield DE-icing system. •...
  • Page 23 PITOT HEAT ON • What It Does: Activates the pitot heating system • SCANRESULT: . + LEFT_SHIFT + RIGHT_ALT PITOT HEAT OFF • What It Does: DE-activates the pitot heating system • SCANRESULT: . + LEFT_CTRL+ LEFT_ALT...
  • Page 24 FUEL SELECTOR 1 ALL (note that fuel pump on/off does not work in MSFS currently) • What It Does: ? • SCANRESULT: . + LEFT_CTRL + RIGHT_ALT FUEL SELECTOR 1 OFF • What It Does: ? • SCANRESULT: . + LEFT_ALT+ RIGHT_ALT...
  • Page 25 TOGGLE AUTOPILOT MASTER • What It Does: Toggles the Autopilot system on & off • SCANRESULT: z...
  • Page 26 ALTIMETER SETTING INCREASE ALTIMETER • What It Does: When rotated clockwise, it increases the QNH • SCANRESULT: j + LEFT_CTRL INCREASE ALTIMETER • What It Does: When rotated counter clockwise, it decreases the QNH • SCANRESULT: i + LEFT_CTRL SET ALTIMETER TO MSL PRESSURE •...
  • Page 27 BRAKES DISARM AUTOBRAKE • What It Does: Disarms the automatic brake system, allowing manual control of braking. • SCANRESULT: i + LEFT_SHIFT + LEFT_CTRL SET AUTOBRAKE LO • What It Does: Sets the autobrake system to low sensitivity. • SCANRESULT: i + LEFT_SHIFT + LEFT_ALT SET AUTOBRAKE MED •...
  • Page 28 SET AUTOBRAKE HI • What It Does: Sets the autobrake system to sensitivity. • SCANRESULT: i + LEFT_CTRL + LEFT_ALT SET AUTOBRAKE MAX • What It Does: Sets the autobrake system to maximum sensitivity. • SCANRESULT: i + LEFT_CTRL + RIGHT_ALT...
  • Page 29 SECONDARY FLIGHT CONTROLS ELEVATOR TRIM UP (NOSE UP) • What It Does: Adjusts the elevator trim to raise the aircraft's nose, pitching it upward. • SCANRESULT: Keypad 1 ELEVATOR TRIM DOWN (NOSE DOWN) • What It Does: Adjusts the elevator trim to lower the aircraft's nose, pitching it downward.
  • Page 30 DECREASE STEERING • What It Does: Will turn the nosewheel of the aircraft to the left. • SCANRESULT: ` + LEFT_CTRL INCREASE STEERING • What It Does: Will turn the nosewheel of the aircraft to the right. • SCANRESULT: . + LEFT_CTRL SET STEERING •...
  • Page 31 FLAPS RETRACT • What It Does: Retracts the flaps, reducing lift and drag. • SCANRESULT: F5 FLAPS 1 • What It Does: Extends flaps to the first notch, increasing lift and drag for takeoff or landing. • SCANRESULT: ` + LEFT_SHIFT + RIGHT_ALT FLAPS 2 •...
  • Page 32 FLAPS 3 • What It Does: Extends flaps to the third notch, increasing lift and drag for takeoff or landing. • SCANRESULT: ` + LEFT_CTRL + RIGHT_ALT EXTEND FLAPS • What It Does: Extends the flaps, increasing lift and drag for takeoff or landing. •...
  • Page 33 SPOILERS / SPEEDBRAKES RETRACT SPOILERS • What It Does: Retract the spoilers or speedbrakes. • SCANRESULT: ` + LEFT_ALT ARM AUTO SPOILERS • What It Does: Arms the spoilers or speedbrakes. • SCANRESULT: ` + RIGHT_ALT EXTEND SPOILERS • What It Does: Extends the spoilers or speedbrakes. •...
  • Page 34 LANDING GEAR GEAR UP • What It Does: Raises the landing gear, retracting it into the aircraft's fuselage. • SCANRESULT: ` + LEFT_SHIFT (GEAR OFF) • What It Does: Puts the landing gear handle in the center position. • SCANRESULT: / + LEFT_SHIFT + LEFT_ALT GEAR DOWN •...
  • Page 35 POWER MANAGEMENT INCREASE MIXTURE • What It Does: Rotating clockwise increase the fuel to air mixture. • SCANRESULT: \ + LEFT_CTRL DECREASE MIXTURE • What It Does: Rotating counter clockwise decrease the fuel to air mixture. • SCANRESULT: ; + LEFT_CTRL SET MIXTURE RICH •...
  • Page 36 INCREASE PROPELLER PITCH • What It Does: Rotating clockwise increase the propeller pitch. • SCANRESULT: F3 + LEFT_CTRL DECREASE PROPELLER PITCH • What It Does: Rotating counter clockwise decrease the propeller pitch. • SCANRESULT: F2 + LEFT_CTRL PROPELLER PITCH HIGH •...
  • Page 37 MISCELLANEOUS SET PAUSE ON • What It Does: Activates the pause function, temporarily halting the simulation. • SCANRESULT: j + LEFT_SHIFT SET PAUSE OFF • What It Does: Deactivates the pause function, resuming the simulation. • SCANRESULT: , + LEFT_ALT...
  • Page 38 CAMERA VIEW CONTROLS COCKPIT/EXTERNAL VIEW MODE • What It Does: Switches between cockpit and external camera views. • SCANRESULT: END SAVE CUSTOM CAMERA Xx • What Does: Saves current camera view as a custom preset. • SCANRESULT: x + LEFT_CTRL...
  • Page 39 HAT UP (pre assigned) • What It Does: Look UP or translate UP • SCANRESULT: Up Arrow HAT RIGHT (pre assigned) • What It Does: Look RIGHT or translate RIGHT • SCANRESULT: Right Arrow HAT DOWN (pre assigned) • What It Does: Look DOWN or translate DOWN •...
  • Page 40 AIRPLANE VIEWS Controller Views Navigation Our controller provides an intuitive system for navigating views both inside and outside the airplane, ensuring a seamless and immersive flying experience tailored to your preferences. Controller Layout Overview • The controller features a layout with programmable buttons for easy access to specific views.
  • Page 41 • In the default or standard profile, the view navigation and customization functions are readily available. • However, if you create a new profile, you'll need to assign the custom view keys beforehand to ensure seamless integration and functionality. You can do this by simply scanning the buttons to the ‘LOAD CUSTOMS CAMERA’...
  • Page 42 "Although we supply a recommended initial setup for getting started, we encourage you to explore and customize your AXAIR MILI23. Every button, dial, or switch can be assigned to any function within your flight simulation software, allowing you to tailor your control setup to your unique flying style and preferences."...
  • Page 43 Microsoft Flight simulator known limitations In the realm of Microsoft Flight Simulator, players have encountered a variety of limitations and challenges related to control mapping and command functionalities. These issues, while significant, stem from the game's development by Microsoft/Asobo and are not a result of any shortcomings in the controllers themselves.
  • Page 44 Assigning Controls in Microsoft Flight Simulator for PC • Coming Soon Assigning Controls in X-Plane 12 for PC • Coming Soon Assigning Controls in Aerofly FS4 for PC • Coming Soon...
  • Page 45 • Weight: 600 grams • Dimensions: 195mm (Length) x 104mm (Width) x 68mm (Height) These specifications ensure the MILI23 is both stable on your desk and comfortable for long gaming sessions, offering an optimal balance between usability and immersive experience.
  • Page 46 • Check for Assignments in Your Flight Sim: Ensure the button or switch is correctly assigned to a function within your flight simulation software. • Reset the MILI23: Unplug and then re-plug the MILI23 to reset its connection to your device.
  • Page 47 Warranty and Customer Service Warranty Coverage Your AXAIR MILI23 comes with a 6-month warranty from the date of purchase, covering defects in materials and workmanship under normal use. This warranty does not cover damages resulting from improper handling, installation, maintenance by third parties, or unauthorized modifications, including opening the device’s casing.
