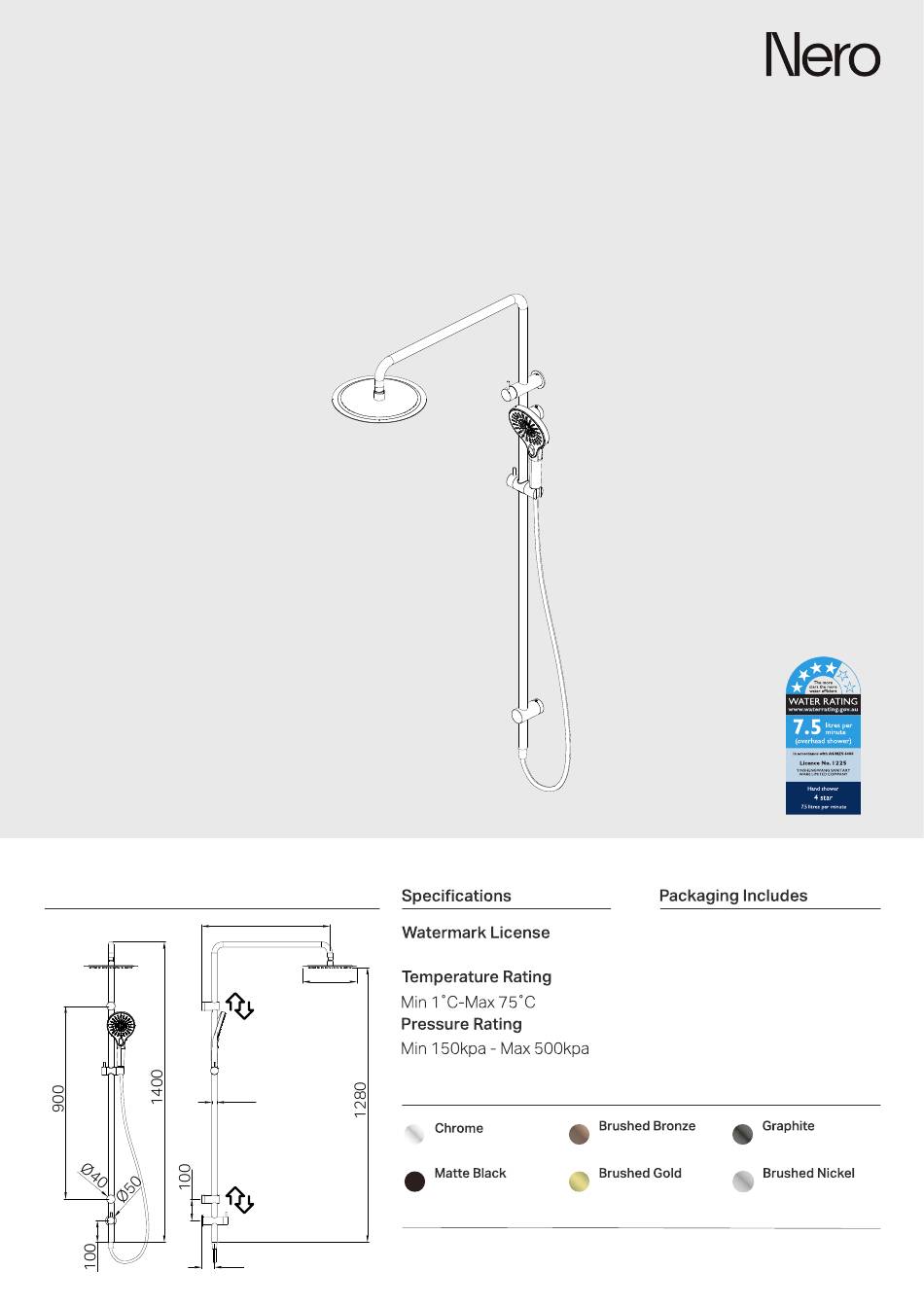

Mecca Care
25mm Grab Rail 900mm
Twin Shower Set
Versions:202405
Drawing
596.5
WM-060093
Ø250
Top/Bottom
Inlet
(Switchable)
Finish & SKU
Ø25
*Dimensions are nominal measurements only.
**Dual-check valve pre-installed.
59
***Top or bottom divertor compatible.
NRCS007CH
NRCS007BZ
NRCS007MB
NRCS007BG
1x Hand Shower
( Built - In Check Valve)
1x Shower Head
1x Shower Arm
1x Shower Rail
1x 1.5m PVC Hose
1x Installation Kit
NRCS007GR
NRCS007BN
Advertisement
Related Manuals for Nero Mecca Care NRCS007CH
Summary of Contents for Nero Mecca Care NRCS007CH
- Page 1 Mecca Care 25mm Grab Rail 900mm Twin Shower Set Versions:202405 Drawing 596.5 1x Hand Shower ( Built - In Check Valve) WM-060093 1x Shower Head 1x Shower Arm Ø250 1x Shower Rail Top/Bottom Inlet 1x 1.5m PVC Hose (Switchable) 1x Installation Kit Finish &...
- Page 2 WARNINGS: - These rails are designed to be mounted onto wall studs or masonry walls. Installation is recommended to be completed by qualified trades person who complies with the AS 1428.1- 2009 design for access and mobility standard. - It is recommended rail location is determined by a qualified occupational therapist or trained professional to the AS 1428.1-2009 standard.
- Page 3 Installation Instruction GENERAL INSTRUCTIONS: - This product must be installed by a licensed plumber. Ensure that your plumbing installation conforms to the Australian/New Zealand Standard AS/NZS 3500. - All pipework must be thoroughly flushed prior to the installation of the shower. In-line filters must be fitted on both hot and cold supplies to prevent foreign particles from damaging the shower components.
- Page 4 Wall Plugs Drill pilot holes into the wall stud to a depth of approximately 60mm, ensuring the holes are suitable for the mounting screws (and wall plugs if necessary). Tip: Use a 3mm drill bit for screws into timber, or an 8mm drill bit if using wall plugs. Apply a small amount of silicone to the back of the mounting bracket, focusing on the area around the screw holes.
- Page 5 Insert shower arm into shower rail, firm it with grub screw, do not over tighten the screws. Screw the adapter onto the prepared outlet thread. Slide the backplate onto the divertor and attach the divertor to the water inlet and secure it in place. Mount the shower brackets onto the wall at the desired height along the shower rail.
- Page 6 Top Divertor Installation 20-30 Ensure that the G1/2 outlet thread is at the correct length, trim the outlet if necessary to achieve the desired fit. The recommended height for the water inlet is 1700mm from the finished floor surface. Apply the G1/2 water outlet connection with Teflon tape to ensure a watertight seal. Locate the wall studs and ensure that at least one bracket is anchored into a stud for secure installation.
- Page 7 Wall Plugs Drill pilot holes into the wall stud to a depth of approximately 60mm, ensuring the holes are suitable for the mounting screws (and wall plugs if necessary). Tip: Use a 3mm drill bit for screws into timber, or an 8mm drill bit if using wall plugs. Apply a small amount of silicone to the back of the mounting bracket, focusing on the area around the screw holes.
- Page 8 Disassemble the shower rail as indicated in the figure above. Swap the positions of the mounting brackets and divertor. Then, reassemble the shower rails, and secure them with grub screws. Insert shower arm into shower rail, firm it with grub screw, do not over tighten the screws.
- Page 9 Screw the adapter onto the prepared outlet thread. Slide the backplate onto the divertor and attach the divertor to the water inlet and secure it in place. Mount the shower brackets onto the wall at the desired height along the shower rail. Once both brackets are securely mounted, tighten all the grub screws on the shower rail and the diverter to ensure everything is firmly in place.
