Summary of Contents for Musical Fidelity M6xTT

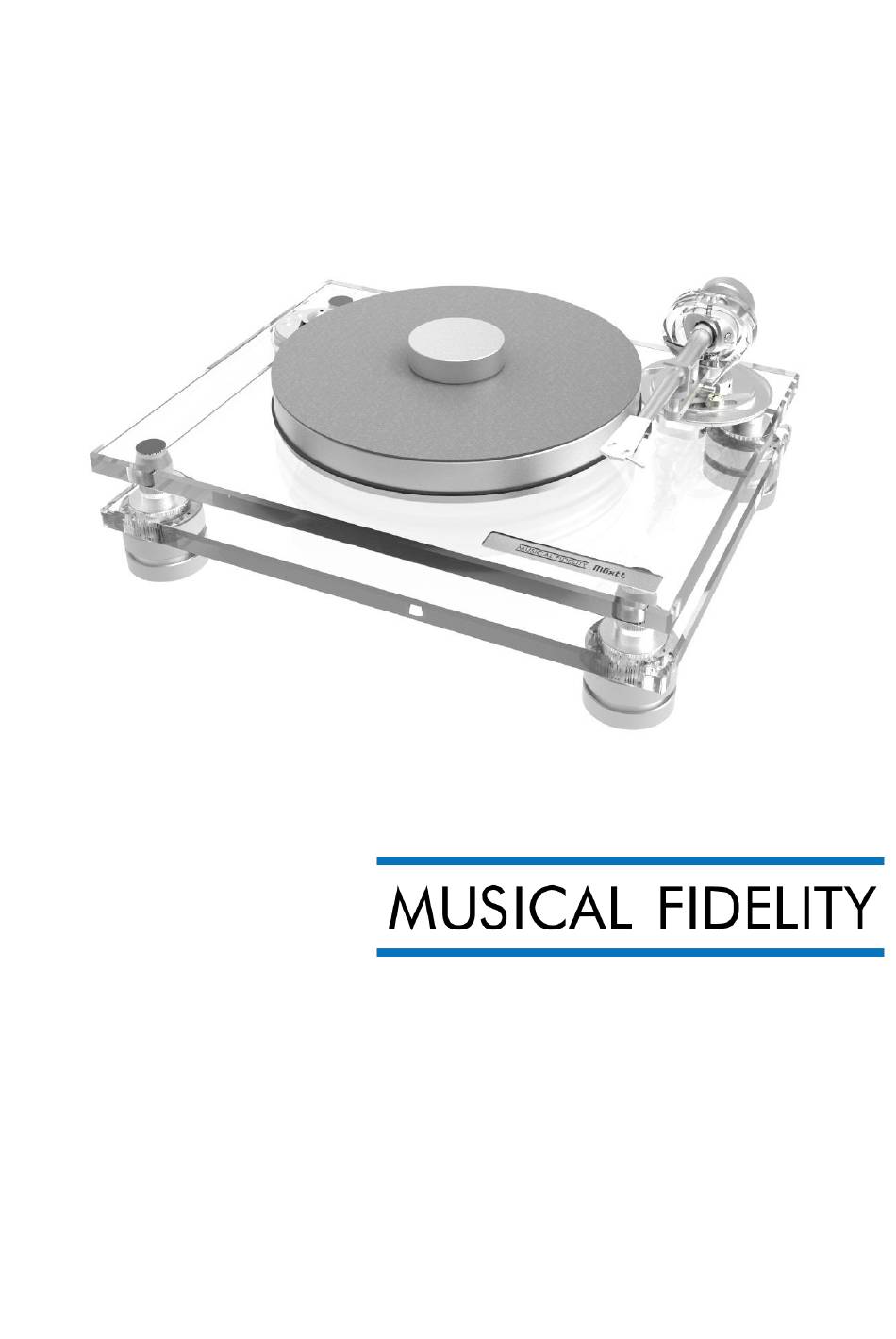

- Page 1 INSTRUCTIONS FOR USE M6xTT...
- Page 2 © Musical Fidelity · M6xTT · Revision 30.09.2024...
- Page 3 Counterweight no. 12 (6 – 14g) and no. 15 (11.5 – 20.5g) Single adaptor Connect IT E RCA 1,23m Power supply White cotton gloves (10) Cloth (11) Record puck (12) Leather mat (13) Tonearm flange LINN standard (14) Grease for inverted platter bearing © Musical Fidelity · M6xTT · Revision 30.09.2024...
- Page 4 7. SWITCHING ON AND OFF / CHANGING REPLAY SPEED 8. TONEARM SETTINGS a) CARTRIDGE INSTALLATION 11-12 b) CARTRIDGE DOWNFORCE ADJUSTMENT VERTICAL TRACKING ANGLE ADJUSTMENT 12-13 d) AZIMUTH ADJUSTMENT e) ANTI-SKATING FORCE ADJUSTMENT 13-14 TECHNICAL SPECIFICATIONS WARRANTY, SERVICE PACKAGING © Musical Fidelity · M6xTT · Revision 30.09.2024...
- Page 5 Dear music lover, Thank you for purchasing a Musical Fidelity record player. In order to achieve maximum performance and reliability, please study these instructions carefully. Warning of a hazard for the user, the unit or possible misuse Important notice The following instructions for adjusting the cartridge are provided in case the cartridge is replaced by a different model at a later date.
- Page 6 Remove the bottom acrylic chassis and place it on top of the foam inserts you just removed. e) Remove another set of white foam inserts to get to the feet and main platter © Musical Fidelity · M6xTT · Revision 30.09.2024...
- Page 7 Use the provided A3 template to precisely position the turntable feet so that you can comfortably fit the lower part of the acrylic chassis over them. © Musical Fidelity · M6xTT · Revision 30.09.2024...
- Page 8 Fit the drive belt around the platter and the motor pulley. Avoid getting sweat or grease on the belt as these will deteriorate the performance and reduce the belt's lifespan. Use absorbent kitchen paper to remove any oil or grease from the outer edge of the platter and the belt. © Musical Fidelity · M6xTT · Revision 30.09.2024...
- Page 9 If your amplifier does not have an input suitable for phono cartridges, a separate phono amplifier stage for MM or MC cartridges is required. For detailed product information regarding Musical Fidelity phono amplifiers please visit our website: www.musicalfidelity.com © Musical Fidelity · M6xTT · Revision 30.09.2024...
- Page 10 45 r.p.m. The selected speed is shown respectively by the flashing LED. When the platter has attained full speed, the LEDs stop flashing. To stop the turntable, hold the STBY button for 3 seconds. © Musical Fidelity · M6xTT · Revision 30.09.2024...
- Page 11 Please note: adjusting a cartridge and tonearm calls for the greatest care in order to avoid damaging the cartridge or tonearm bearings. Ask your local dealer for help if you are unsure in any of the necessary steps and precautions which must be taken. © Musical Fidelity · M6xTT · Revision 30.09.2024...
- Page 12 Retighten the hexagon screws without applying excessive force (which would deform the arm pillar) – finger tight is quite sufficient. © Musical Fidelity · M6xTT · Revision 30.09.2024...
- Page 13 The anti-skating force must be adjusted corresponding to the downforce as follows: Downforce Groove in the stub (15) 10 - 14mN from bearing rings 15 - 19mN " " " 20mN and bigger " " " © Musical Fidelity · M6xTT · Revision 30.09.2024...
- Page 14 Overhang 18mm Power consumption 5W/ 0.3W standby mode Outboard power supply 15V/ 0.8 A DC, universal power supply Dimensions (W x H x D) 480 x 210 x 370mm Weight 19.1 kg © Musical Fidelity · M6xTT · Revision 30.09.2024...
- Page 15 Potential incorrect use and fault conditions Musical Fidelity turntables are manufactured to the highest standards and undergo strict quality controls before leaving the factory. Faults that may possibly occur are not necessarily due to material or production faults but can sometimes be caused by incorrect use or unfortunate circumstances. Therefore, the following list of common fault symptoms is included.
- Page 16 © Musical Fidelity · M6xTT · Revision 30.09.2024...
