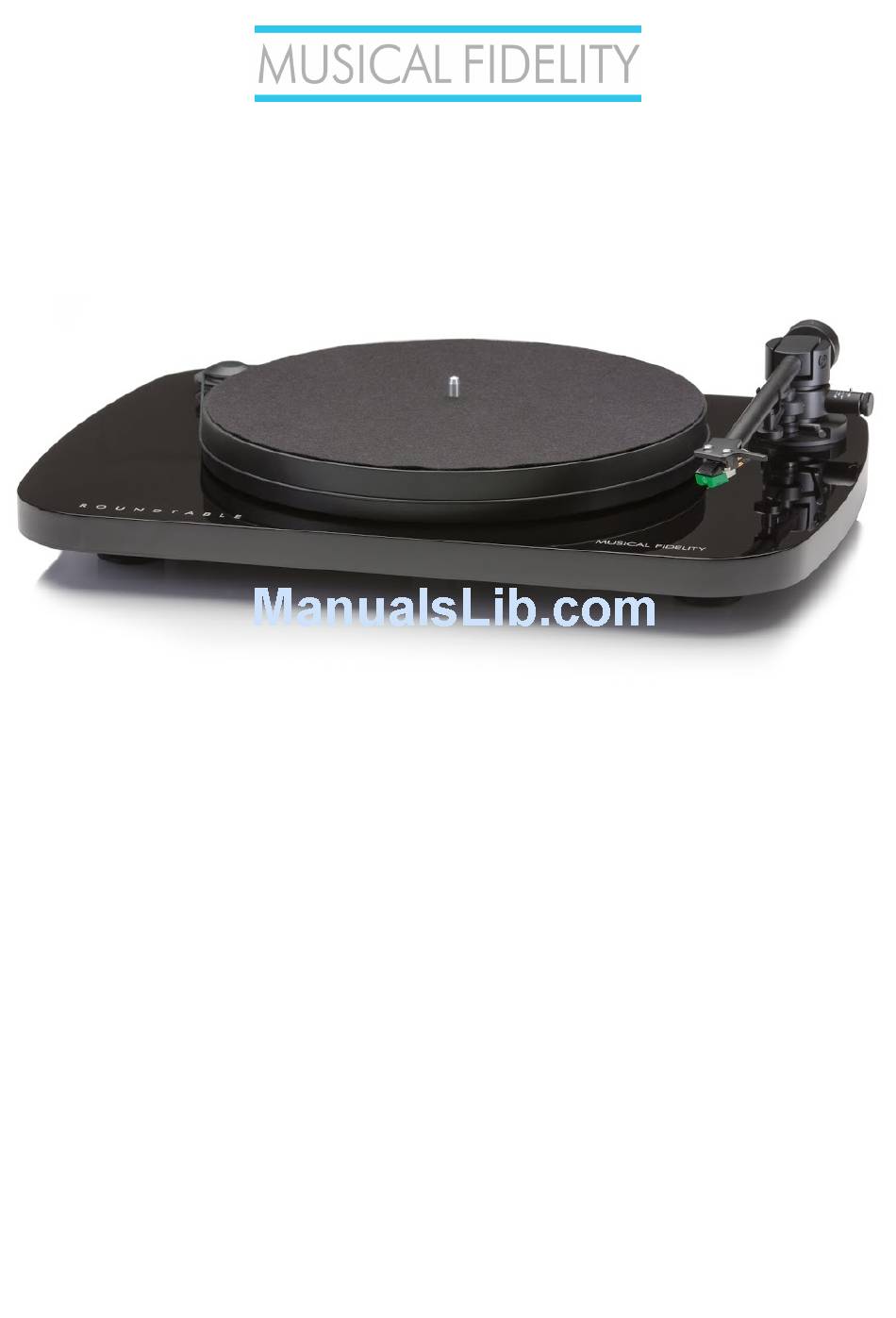

Musical Fidelity ROUNDTABLE Manual

Musical Fidelity ROUNDTABLE Manual

Advertisement

Quick Links

R O U N D T A B L E
Record Player

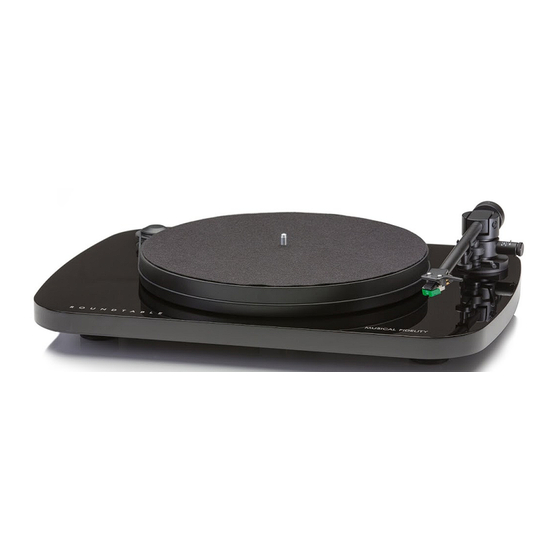

The Round Table is a high quality but competitive turntable solution.
It features a high quality low resonance 9" pickup arm, and magnetic anti skating
compensation, and vertical bearings are ABEC7 ball bearings. These bearings are steel
tipped and housed in Zirconium with rubber damping, similar in principle to shock
protection used in high quality watches. Adjustable counter weight, vertical tracking
height and magnetic anti-skate mechanism allows different cartridges to be used, as
desired
.
The Round Table plinth and platter are made from low resonance material and feet
have vibration-isolation properties. The mass of the round table has also been carefully
tuned so the centre is located at the bearing location.
The unit is supplied mostly assembled and an Audio Technica 95E cartridge has also
been factory fitted.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ROUNDTABLE and is the answer not in the manual?

Questions and answers

Summary of Contents for Musical Fidelity ROUNDTABLE

  • Page 1 R O U N D T A B L E Record Player The Round Table is a high quality but competitive turntable solution. It features a high quality low resonance 9” pickup arm, and magnetic anti skating compensation, and vertical bearings are ABEC7 ball bearings. These bearings are steel tipped and housed in Zirconium with rubber damping, similar in principle to shock protection used in high quality watches.
  • Page 2 Round Table Record Player TOP VIEW PULLEY BELT SPINDLE POWER ON/OFF PLINTH PLATTER CARTRIDGE SWITCH HEADSHELL REAR VIEW TONEARM PLATTER SPINDLE BELT PULLEY PLINTH ASSEMBLEY EARTH FRONT POWER MOTOR RCA OUTPUTS TERMINAL FOOT SOCKET ASSEMBLEY - 2 -...
  • Page 3 Round Table record player Unpacking And Setting Up Place box right way up on floor and ensure designated area where record player is to be used is clear, level and stable. Try to route any nearby significant current carrying (e.g. mains and speaker cables) as far away as possible. Open up top of box carefully, taking care not to damage contents inside.
  • Page 4: Maintenance And Cleaning

    Round Table Record Player Supplied Cartridge Counter Weight Setup Locate counterweight and loosen screw with the 1.5mm (thin) hex Allen key. Slide counterweight halfway down counter balance support rod (see next page), making sure screw stays uppermost. Remove felt mat temporarily, and place plastic stylus pressure gauge on platter by tonearm. Place tonearm on the gauge with needle on the mN scale point at 20mN (2 grams).
  • Page 5: Tonearm Assembly

    Round Table record player Tonearm Assembly CARTRIDGE TONEARM TONEARM PIVOT COUNTER BALANCE COUNTER WEIGHT HEADSHELL TUBE REST SUPPORT ROD RELEASE SCREW FINGER TONEARM LIFT ANTI-SKATE ANTI-SKATE VERTICAL TRACKING COUNTER LIFT LEVER SCALE CONTROL RELEASE SCREW WEIGHT Changing Cartridge Please note this information is for guidance only and is not required if using the factory installed cartridge.
  • Page 6 Round Table Record Player Cartridge Counter Weight Adjustment Loosen counterweight screw with the 1.5mm (thin) hex Allen key to counterweight moves easily. Slide counterweight to halfway down counter balance support rod, making sure screw stays uppermost. Remove felt mat and place plastic stylus pressure gauge on platter by tonearm. Place tonearm on the gauge with needle on the mN scale point as follows: 10mN - 1.0 grams 15mN - 1.5 grams...
  • Page 7 Plastic single adapter for “large hole” singles Stylus pressure gauge – white plastic instrument with mN scale WARNING: ANY MODIFICATIONS TO THIS PRODUCT NOT EXPRESSLY APPROVED BY MUSICAL FIDELITY WHO IS THE PARTY RESPONSIBLE FOR STANDARDS COMPLIANCE COULD VOID THE USER'S AUTHORITY TO OPERATE THIS EQUIPMENT Musical Fidelity reserves the right to make improvements which may result in specification or feature changes without notice.
  • Page 8 Round Table Record Player FACHGERECHTE ENTSORGUNG: Das auf der Geräterückseite angebrachte Label deutet darauf hin, dass das Produkt nicht mit konventionellem Hauskehricht entsorgt werden darf. Um Schäden und Verschmutzungen Umwelt Mensch vermeiden, muss das Produkt fachgerecht entsorgt und von anderem Abfall getrennt werden. Wenden Sie sich bei Fragen hierzu an Ihren Fachhändler oder an eine öffentliche Informationsstelle.
