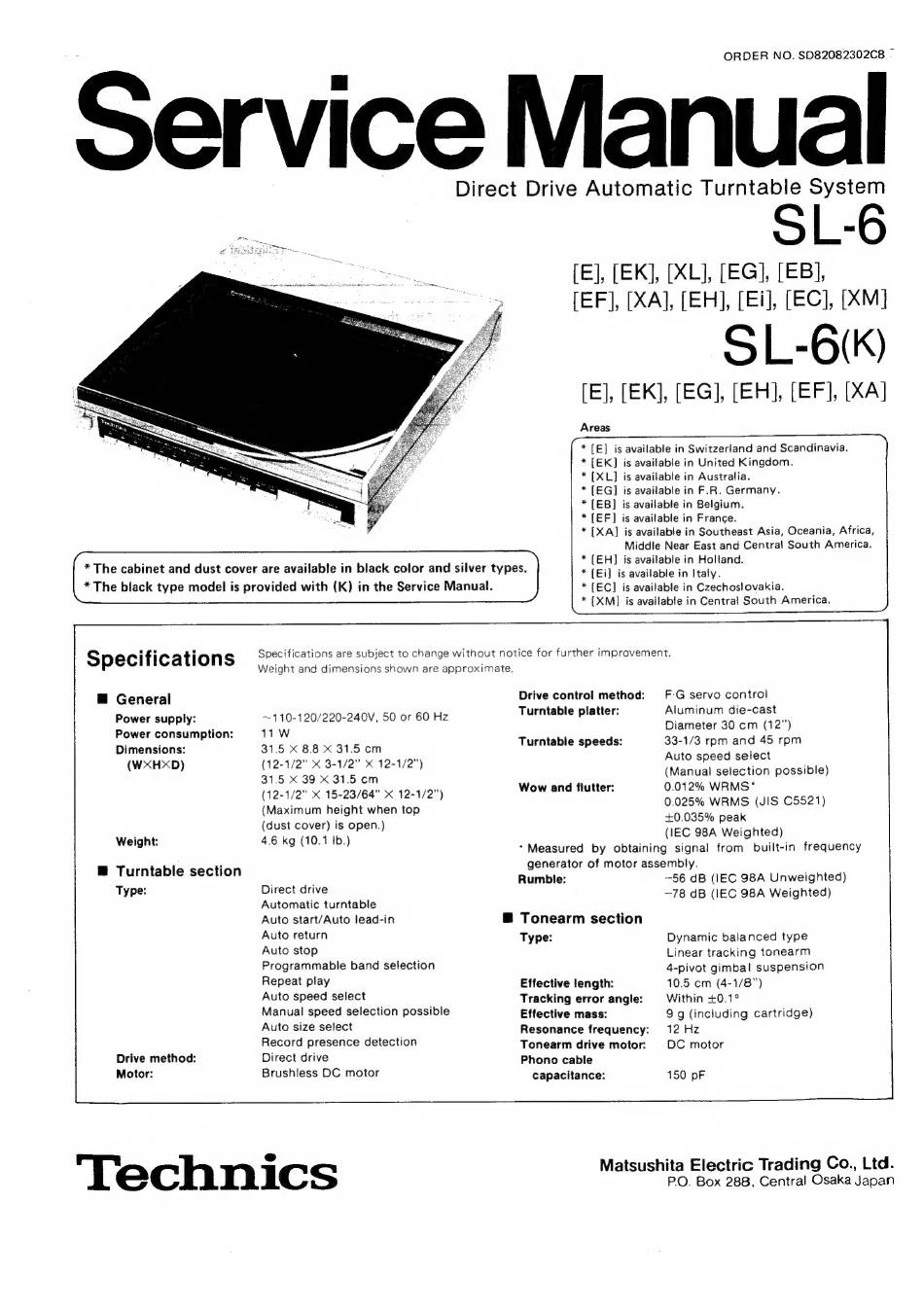

Technics SL-6 Service Manual

ORDER NO. $D82082302C8 ~
Direct Drive Automatic Turntable System
OL-6
[E], [EK], [XL], [EG], [EB],
[EF], [XA], [EH], [Ei], [EC], [XM]
SL-6(K)
(E], [EK], [EG], (EH), (EFI, (XA)
Areas
* [E] is available in Switzerland and Scandinavia.
* [EK] is available in United Kingdom.
* [XL] is available in Australia.
* [EG] is available in F.R. Germany.
* [EB] is available in Belgium.
* [EF] is available in France.
* [XA] is available in Southeast Asia, Oceania, Africa,
Middle Near East and Central South America.
* [EH] is available in Holland.
* [Ei] is available in Italy.
* [EC] is available in Czechostovakia.
* [XM] is available in Central South America.
* The cabinet and dust cover are available in black color and silver types.
* The black type model is provided with (K) in the Service Manual.
iff 1 Specifications are subject to chan ith notice for further im : Specifications pe ificati s su j ge wi out otice for fur improvement
Weight and dimensions shown are approximate.
Auto start/Auto lead-in @ Tonearm section
Auto return Type: Dynamic balanced type
Auto stop Linear tracking tonearm
Programmable band selection 4-pivot gimbal suspension
Repeat play Effective length: 10.5 cm (4-1/8")
Auto speed select Tracking error angle: = Within +0.1°
Manual speed selection possible Effective mass: 9 g (including cartridge)
Auto size select Resonance frequency: 12 Hz
Record presence detection Tonearm drive motor: | DC motor
Drive method: Direct drive Phono cable
Power supply:
Power consumption: 11W
Dimensions: 31.5 X 8.8 XK 31.5 cm
(WXHXD) (12-1/2"" & 3-1/2" X 12-1/2")
31.5 X 39 X 31.5 cm
(12-1/2" X 15-23/64" X 12-1/2")
(Maximum height when top
(dust cover) is open.)
Weight: 4.6 kg (10.1 Ib.)
