KoolMore KM-MD-1SS Installation Manual

Built-in stainless steel microwave drawer
Hide thumbs Also See for KM-MD-1SS:
1
2
3
4
5

Advertisement

Quick Links

Download this manual
BUILT-IN STAINLESS STEEL
MICROWAVE DRAWER
MODEL:
KM-MD-1SS
Intended for household use. Unit must be
kept clear of combustibles at all times.
For any service-related Issues, please contact
INSTALLATION MANUAL
us: Phone Number: 718-576-6342
Email address: support@koolmore.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the KM-MD-1SS and is the answer not in the manual?

Questions and answers

Related Manuals for KoolMore KM-MD-1SS

Summary of Contents for KoolMore KM-MD-1SS

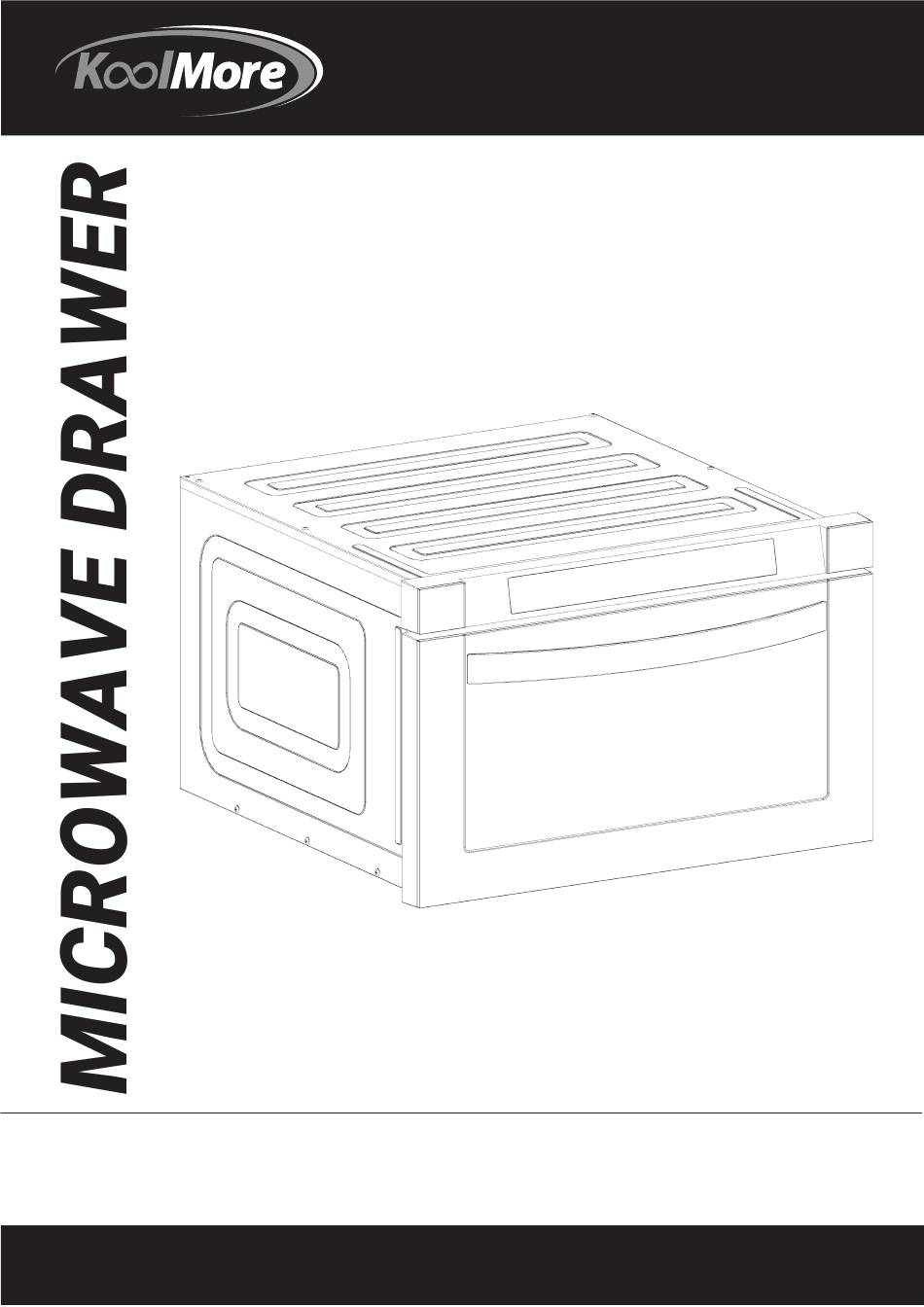

  • Page 1 INSTALLATION MANUAL BUILT-IN STAINLESS STEEL MICROWAVE DRAWER MODEL: KM-MD-1SS Intended for household use. Unit must be kept clear of combustibles at all times. For any service-related Issues, please contact us: Phone Number: 718-576-6342 Email address: support@koolmore.com...
  • Page 2 Microwave Drawer INSTALLATION MANUAL SPECIAL WARNING INSTALLATION AND SERVICE MUST BE PERFORMED BY A QUALIFIED INSTALLER. IMPORTANT: SAVE this installation manual FOR LOCAL ELECTRICAL INSPECTOR'S USE. READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE. CLEARANCES AND DIMENSIONS For SAFETY CONSIDERATIONS do not install drawer in any combustible cabinetry, which is not in accord with the stated clearances and dimensions on pages 2 and 3.
  • Page 3 CLEARANCES AND DIMENSIONS · · Dimensions that are shown in Figure 1 must be Check location where the Microwave Drawer will used. Given dimensions provide minimum be installed for proper electrical supply · clearance. Locate electrical outlet in the shaded Your oven can be built into a cabinet or wall by area in the upper left-hand corner of the cutout.
  • Page 4 ANTI-TIP BLOCK ELECTRICAL OUTLET Su gge ste d el ect ric al out let loc ati on Anti Tip block 4 '' Figure 4 Figure 3 The electrical requirements are a 120 volt 60 Hz, AC NORMAL INSTALLATION STEPS only,l5 amp. or more protected electrical supply. It is ANTI-TIP BLOCK INSTALLATION INSTRUCTIONS To reduce the risk of tipping of the drawer, the Anti-Tip recommended that a separate circuit serving only this...
  • Page 5 DRAWER INSTALLATION Mounting flange Figure 5 Screws 1. Place the drawer adjacent to the wall or cabinet opening.Plug the power supply cord into the electrical outlet. 2. Carefully guide the drawer into the prepared opening. Avoid pinching the cord between the oven and the wall. 3.
