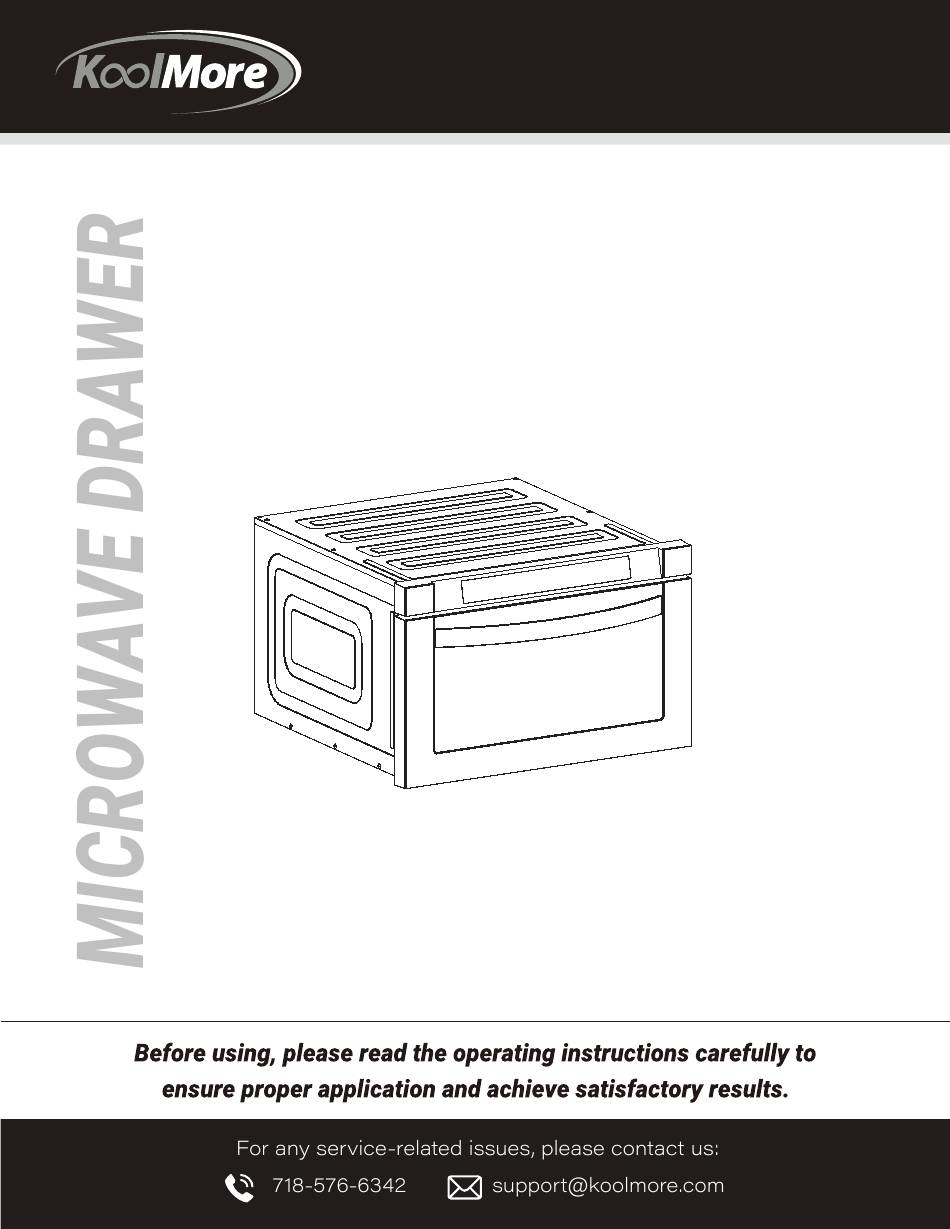

- Page 1 INSTALLATION MANUAL KoolMore Built-in Stainless Steel Microwave Drawer Model: KM-MD-1SS...
- Page 2 Stay informed with the latest information for your KoolMore Appliance. If you need any assistance or have questions, our customer support team is here to help.
- Page 3 SPECIAL WARNING INSTALLATION AND SERVICE MUST BE PERFORMED BY A QUALIFIED INSTALLER. IMPORTANT: SAVE this installation manual FOR LOCAL ELECTRICAL INSPECTOR'S USE. READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE. CLEARANCES AND DIMENSIONS For SAFETY CONSIDERATIONS do not install drawer in any combustible cabinetry, which is not in accord with the stated clearances and dimensions on pages 2 and 3.
- Page 4 WARNING To reduce the risk of tipping, the Microwave Drawer must be secured by a properly installed Anti-Tip block. This Microwave Drawer must be electrically grounded in accordance with local codes. Make sure the wall coverings and the cabinets around the Microwave Drawer can withstand the heat generated by the Microwave Drawer.
- Page 5 ANTI-TIP BLOCK ELECTRICAL OUTLET Su gge ste d el ect ric al out let loc ati on Anti Tip block 4 '' NORMAL INSTALLATION STEPS NORMAL INSTALLATION STEPS ANTI-TIP BLOCK INSTALLATION INSTRUCTIONS ANTI-TIP BLOCK INSTALLATION INSTRUCTIONS To mitigate tipping risk, the Anti-Tip block must be properly installed below the microwave drawer, precisely 13/16 inches above the floor.
- Page 6 Do not use an extension cord. If the power supply cord is too short, an outlet should be installed near the appliance by a qualified technician. DRAWER INSTALLATION Figure 6 Mounting flange Screws Figure 5 Installation Instructions: 1. Position the drawer adjacent to the wall or cabinet opening. Connect the power supply cord to the electrical outlet.
- Page 7 At its sole discretion, Koolmore Supply Inc. may decide to replace the product. In such an event, your replacement appliance will carry the warranty for the remaining term of the original unit's warranty period.
