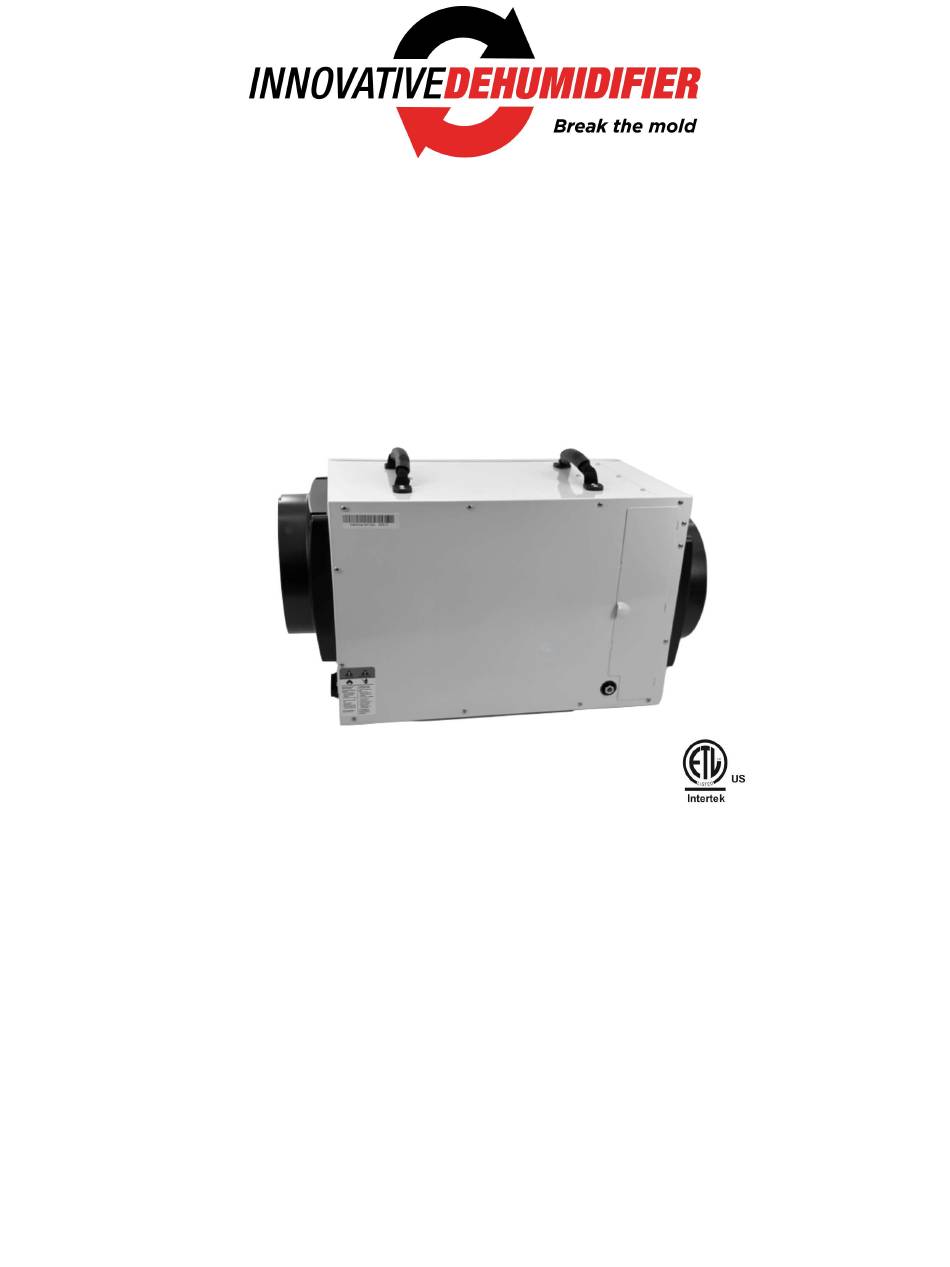

- Page 1 WH60 & WH85 Whole Home Dehumidifiers Installation and Operation Manual Read This Manual Carefully Before Proceeding Innovative Dehumidifier Systems www.HumidityHappens.com...
- Page 2 Table of Contents Page Safety Instructions Warranty Registration How the Dehumidifier Works Dehumidifier Specs Basic Set Up - All Applications Set Up - Connecting to HVAC System - Dedicated Return - Bypass Method - Injection Method Set Up - Remote Control System - How to Use a Remote Control Set Up - Standalone Installation - Using the Dehumidifier Controls...
- Page 3 Safety Instructions Please read these instructions carefully and completely before continuing to install and operate this product. Failure to properly install and use this product will void the warranty. Please save these instructions for future reference. Warning: Failure to follow these instructions could result in serious injury or death. ...
- Page 4 The air is then reheated as it flows across the condenser coil and distributed back into the conditioned space. Dehumidifier Specs Model WH85 WH60 Capacity (80°F / 60%) 85 ppd 60 ppd Capacity (73°F / 60%) 53.0 ppd 44.5 ppd...
- Page 5 Basic Set-Up - All Applications 1. Place the dehumidifier in an appropriate location. (NOTE: If the unit has been turned or flipped so that the compressor did not remain upright, wait a minimum of 2 hours after placement to operate the unit.) a.
- Page 6 • If an E4 error occurs immediately, remove the wires from terminal strip, unplug the dehumidifier and replace the jumper. Plug in the dehumidifier with nothing attached to terminal strips. If E4 occurs again, contact Innovative Dehumidifiers. If not, remove the jumper, move to the next step.
- Page 7 HVAC Connection Options Option #1 - Dedicated Return In this setup, the dehumidifier is connected to either the supply side or the return side of the air handler (supply side is shown). Notes: • The maximum combined length of ducting for the dehumidifier is 10’. •...
- Page 8 Option #2 - Bypass Method In this method, some air bypasses the air handler to be conditioned by the dehumidifier. Notes: • For this method, you may need a damper to prevent back flow. • The maximum combined length of ducting for the dehumidifier is 10’ •...
- Page 9 Set Up - Remote Control System You also have the option to give the dehumidifier independent ducts when you use a wired remote control. The remote plugs into a CAT 5 port on the dehumidifier. This port is located next to the terminal strip on the back of the unit.
- Page 10 How to Use a Remote Control (See diagram) 1. On / Off Power Button: Press the on / off button and the machine will start running. Press the button again to turn the machine off. 2. Up / Down Arrows: Use the Up and Down arrow buttons to adjust the humidity level. 3.
- Page 11 Using the Dehumidifier Controls Note: While connected to the HVAC system, display functions on the dehumidifier will not work. 1. Power Button a. Use this button to turn the machine “ON” and “OFF”. b. Press once to turn the machine “ON”. You will hear two beeps and the light will illuminate green (solid or flashing depending on mode).
- Page 12 3. Continuous Mode / Auto Defrost Light a. When this light illuminates green, it indicates that the dehumidifier is in continuous mode. b. When the light illuminates red, it indicates the unit is in auto defrost mode and is clearing the evaporator coils of ice buildup.
- Page 13 Maintenance Warning: Always unplug the dehumidifier before performing any maintenance. Cleaning the Exterior Use a soft, damp cloth to clean the exterior of the unit. Do not use soap or solvents. Coil Maintenance At least once per year, spray the coils with an approved coil cleaner. The coil cleaner should be a self-rinsing, foaming cleaner, such as WEB®...
- Page 14 Troubleshooting...
- Page 15 5 Year Warranty Innovative Dehumidifier Systems warrants the equipment to be free from defects in workmanship and materials for a period of 60 months after shipment. This warranty is limited, however, to the repair or replacement of defective equipment at the manufacturer’s discretion. If it is necessary to return unit for service, customer is solely responsible for proper packaging and transportation costs to and from the service center.
