Black & Decker BD-HS600 Manual

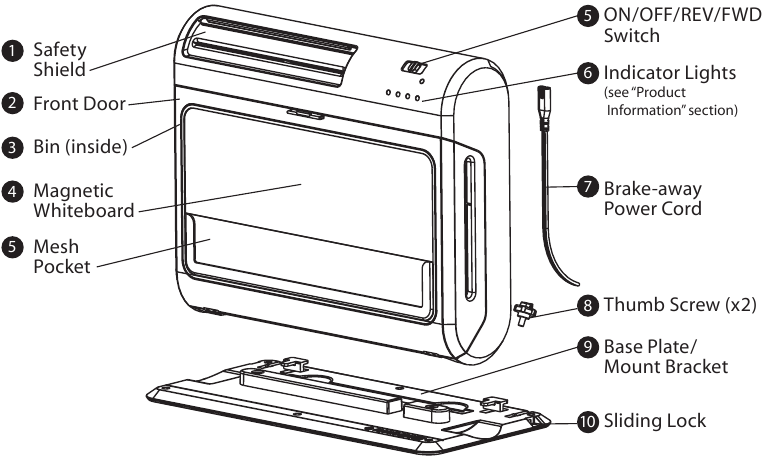

Parts and Features

Parts and Features
figure 1

Setup

The Black & Decker® Paper Shredder & Messaging Center can be wall mounted or set up on a desk or floor surface.

TO WALL MOUNT

Your shredder must be securely attached to studs in your wall. It is recommended to hang your shredder at a maximum height of 5-feet (152 cm).

Before hanging the shredder, you must remove the screw knobs (8) from the mounting bracket; these are only used in the floor standing mode. You must also move the sliding locks (10) to the open position; these will be closed later.
Locate the wall studs using a stud finder.

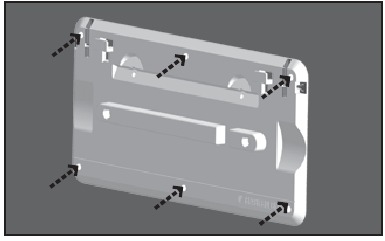

Attach the mounting bracket to the wall using the six enclosed mounting screws. (fig. 2)

figure 2
Hang the shredder to the mounting bracket using the hooks on the front of the bracket. Check to be sure that both hooks are securely in place.

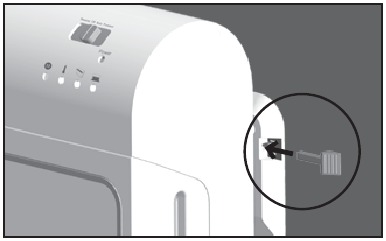

Close the sliding locks on the sides of the mounting bracket; this will lock your shredder in place. You must open both locks before you take your shredder off the wall. (fig. 3)

figure 3

TO USE ON DESK OR FLOOR SURFACE

Place bracket (face up) on flat surface.

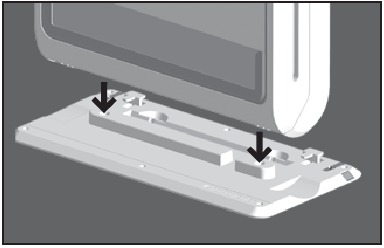

The shredder should be positioned over the raised section of the mounting bracket. This will fit inside the slot on the bottom of the shredder. (fig. 4)

figure 4

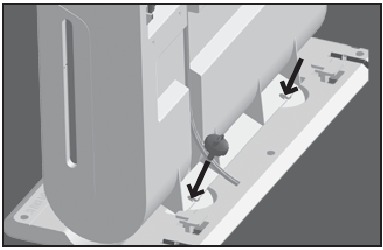

Attach the shredder to the mounting bracket using the two thumb screws that were provided with the unit. These thumb screws must be securely in place when the shredder is in the standing mode. (fig. 5)

figure 5

A socket-outlet should be near the equipment and be easily accessible. Connect the power cord to any standard 120 volt AC outlet. The B&D Paper Shredder & Messaging Center uses a break-away power cord for added safety.

Operation

HOW TO USE YOUR SHREDDER

Place the bin (3) inside the shredder and close the front door.
Rotate the safety shield (1) to the open position.
To empty bin, open the front door and remove the waste bin. Shreds should be emptied into separate container. Always replace the waste bin before closing the front door.

To begin shredding, locate the power switch (5) on the unit and select the "Auto" mode. The green LED light indicates the shredder is "On" and ready to use. Slide the safety shield (1) up until it clicks into place and exposes the paper feed slot.

This shredder has a 4 position power switch:

REVERSE	In the unlikely event of a paper jam, the reverse setting can be used to help clear the cutters of paper that has not passed through. Never attempt to clear a jam by using the reverse function until after you have emptied the bin.
OFF	This setting turns off all features of the shredder. For safety reasons, we recommend that you leave the shredder in the "Off" position whenever the shredder is unattended or not in use.
AUTO	This setting allows the shredder to be automatically started by inserting paper into the shred opening. Always feed the paper in as straight as possible. When the paper has passed through, the shredder will automatically stop.
FORWARD	This setting allows the shredder to run continuously.

Product Information

Sheet capacity:
6 20 lb. pages in widths up to 8.5".
One folded sheet of paper equates to 2 sheets of paper.

Credit card capacity: 1 at a time

Paper shred size: .18" x 1.4"

Voltage: 120

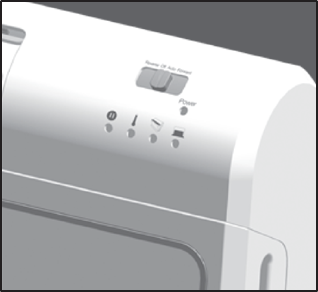

INDICATOR LIGHTS

To provide ease-of-use, your Black & Decker paper shredder has indicator lights as visual cues to communicate any problems.

figure 6

Bin Full - When this light is on the shredder bin is full and the shredder will not operate. Pull open the door, remove the paper bin and empty. Then replace the paper bin and close the door.

Overheat - If the light below the thermometer is illuminated, this means the shredder needs to cool down. Simply turn off the shredder and let cool for approximately 30 minutes.

Jam Proof - This light will illuminate if there is too much paper inserted into the shredder. This function prevents overloading of the shredder. If this light is on then you must reduce the amount of material that you are trying to shred in a single pass.

Door Open - This light will illuminate if the shredder door is ajar. Simply close the shredder door with the bin in place and continue to use the product.

Never shred plastic (except credit cards), any hard materials, continuous forms, newsprint, or anything with adhesives including labels and envelopes. While this shredder will shred staples, it is recommended that you remove them whenever possible to extend the life of your shredder.

Only shred credit cards by feeding them vertically within the designated area.
Never feed more than one credit card at a time.

Maintenance

Regular emptying of the bin is important to ensure the smooth operation of the cutting cylinders. The shredder will not operate when the bin is full. Regular oiling is also necessary for proper performance. It is recommended to use shredder oil every few weeks. Apply across shredder entry, then run a single sheet through.

CLEANING

Always unplug the shredder before cleaning!

Only clean the shredder by wiping the unit with a dry soft cloth or towel.
Do not clean or immerse shredder in water. Getting the unit wet may result in damage or malfunction to the electrical components. If the shredder happens to get wet, be sure to completely dry the unit immediately with a soft cloth or towel.
Never use anything flammable to clean the shredder. This may result in serious injury or damage to the shredder.

To clean the dry erase surface, wipe with dry soft cloth or towel. For more thorough cleaning, use a non-abrasive cleaning solution. Allow to dry before using the dry erase surface.

warning NOTE: Only markers specified as dry-erase should be used on this whiteboard. Markers labeled differently will ruin product and void warranty.

When mounting your shredder, please avoid high-traffic areas.

Troubleshooting

If you have a problem with your shredder, check the symptoms and remedies below. If you cannot solve the problem this way, contact Black & Decker paper shredders Customer Service. Do not open shredder head to attempt repair: It could expose you to electric shock and will void your warranty.

Symptom	Remedy
Shredder does not start or stops while shredding.	Make sure shredder is plugged in and Power Switch is in the "On" position. Wait 30 minutes for shredder to cool down before trying again. Make sure that the shredder is properly mounted to the base and that the door is closed with the bin inside. The shredder has a safety power cut off if the door is not fully closed with the bin inside.
Paper jam.	In case of a paper jam, which may occur if the sheet capacity is exceeded or if the paper is not put in straight. To clear a jam: Move the Power Switch (5) to the "Reverse" position. The shredder will reverse to clear the jam. If the shredder jams in "Reverse" move the Power Switch (5) to the "Auto" position and allow it to run for about 5 seconds. If the jam still does not clear, unplug the shredder and carefully grasp the paper and pull out slowly. Once the jam is cleared, plug in and move the Power Switch to "Auto" for continued shredding or "Off" if shredding is complete.
Shredder squeaks, grinds or runs below capacity.	Check to see if bin is full. If bin is full, follow instructions under maintenance. Oil cutting cylinder.
Shredder continues to run for 2 or 4 seconds after shredding has been completed.	No action required. This is a self-cleaning function.
Shredder does not work at all.	Make sure the outlet that the shredder is plugged into is in a good working order. Verify that the shredder door is closed. The shredder has a safety power cut off if it is not properly closed. In the event that the shredder is running continuously for too long and the motor overheats, a thermal overload switch will automatically shut the power off. If this happens, move the switch to the "Off" position for 30 minutes or more before continuing. When the "Bin is Full", the red LED light will indicate it needs to be emptied. While lit, the shredder will be inoperable until the bin is emptied. Make sure that the brake-away power cord is plugged in at the back of the shredder and at the outlet.

Customer Service

HOW TO GET SERVICE:
Black & Decker has a toll-free help line for customers living in the United States and Canada if you have any questions regarding our product.
Our customer service phone number is 1-800-297-5028
or visit our website at www.blackanddeckershredders.com.

THE DURATION OF ANY IMPLIED WARRANTY OF MERCHANTABILITY IS LIMITED TO ONE YEAR.

Important Safety Instructions

To ensure years of safe, efficient performance, please read these important product usage and safety instructions.
Read All Instructions Before Using.

KEEP OUT OF REACH OF CHILDREN

Hazardous moving parts. Keep fingers and other body parts away.

To reduce risk of fire, electrical shock or injury:

NEVER allow children to operate a paper shredder, even under adult supervision. A paper shredder is NOT a toy.

DO NOT use flammable synthetic oil, petroleum-based products or aerosols of any kind on or near product at any time.

DO NOT operate any electrical product with a damaged cord.

AVOID getting jewelry, hair or loose clothing too close to feed slot as serious injury can occur.

DO NOT handle plug or product with wet hands.

ALWAYS keep children and pets away from the shredder.

ALWAYS unplug shredder when not in use.

DO NOT attempt to feed more sheets of paper than specified on the feeder.

DO NOT attempt to shred materials other than paper or credit cards.

ALWAYS empty the wastebasket prior to becoming full.

DO NOT place shredder near heat or water source.

DO NOT open shredder head to attempt repair: It could expose you to electric shock and will void your warranty.

ALWAYS secure your shredder to studs when mounting on the wall. The socket-outlet shall be installed near the equipment and shall be easily accessible.

WARNING ICONS:
The icons on top of the shredder warn the user of the potential dangers if the shredder is used improperly.
