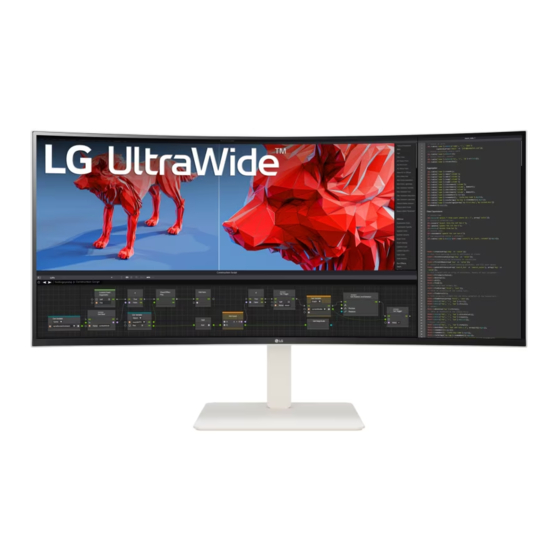

LG 38WR85QC-W Owner's Manual

Led lcd monitor

Hide thumbs Also See for 38WR85QC-W:

Manual (12 pages)

page of 31

/ 31
Bookmarks

Quick Links

Download this manual

* LG LED Monitor applies LCD screen with LED backlights.

Please read this manual carefully before operating your set and

retain it for future reference.

38WR85QC

38BR85QC

Questo manuale d'istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per

o cerca il tuo prodotto tra le

migliori offerte di Monitor

OWNER'S MANUAL

LED LCD MONITOR

(LED Monitor*)

LG 38WR85QC-W

www.lg.com

Need help?

Do you have a question about the 38WR85QC-W and is the answer not in the manual?

Questions and answers

Summary of Contents for LG 38WR85QC-W

Page 1 Monitor OWNER’S MANUAL LED LCD MONITOR (LED Monitor*) * LG LED Monitor applies LCD screen with LED backlights. Please read this manual carefully before operating your set and retain it for future reference. 38WR85QC 38BR85QC www.lg.com...
Page 2 TABLE OF CONTENTS LICENSE Each model has different licenses. Visit www.lg.com for more information on the license. LICENSE ............2 The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered OPEN SOURCE SOFTWARE NOTICE trademarks of HDMI Licensing Administrator, Inc.
Page 3 The power cord provided may differ depending upon the region. other relevant documents, please visit https://opensource.lge.com. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing Supported Drivers and Software such distribution (such as the cost of media, shipping, and handling) upon email request to ...
Page 4 Product and Button Description Moving and Lifting the Monitor When moving or lifting the monitor, follow these instructions to prevent the monitor from being scratched or damaged and to ensure safe transportation, regardless of its shape or size. • Place the monitor in the original box or packing material before attempting to move it. •...
Page 5 Installing on a Table Adjusting the Stand Height • Lift the monitor and place it on the table in an upright position. Place the monitor at least 100 mm away from Place the monitor mounted on the stand base in an upright position. the wall to ensure sufficient ventilation.
Page 6 Adjusting the Angle NOTE Place the monitor mounted on the stand base in an upright position. Adjust the angle of the screen. The angle of the screen can be adjusted forward or backward from -5° to 15° for a comfortable viewing experience.
Page 7 Using the Kensington Lock Installing the Wall Mount Plate The connector for the Kensington security system is located at the bottom of the monitor. This monitor meets the specifications for the wall mount plate or other compatible devices. For more information on installation and usage, refer to the Kensington lock owner’ s manual or visit the website NOTE at http://www.kensington.com.
Page 8 Wall Mount Plate Back of the Monitor NOTE • A non-VESA standard screw may damage the product and cause the monitor to fall. LG Electronics is not liable Wall Mount Plate for any accidents relating to the use of non-standard screws. •...
Page 9 USING THE MONITOR DisplayPort Connection Transmits digital video and audio signals from your PC to the monitor. • Illustrations in this manual may differ from the actual product. NOTE Press the joystick button, go to Settings Input, and then select the input option. •...
Page 10 Connecting AV Devices Connecting Peripherals HDMI Connection USB Device connection HDMI transmits digital video and audio signals from your AV device to the monitor. The USB port on the product functions as a USB hub. NOTE NOTE • Using a DVI to HDMI / DP (DisplayPort) to HDMI cable may cause compatibility issues. •...
Page 11 Connecting Headphones Case 1: Type-C Input The USB port on the product functions as a USB hub. Connect peripherals to the monitor via the headphones port. [Use USB-C cable] NOTE Connect the USB C-C cable to the upstream port of the monitor and the host PC, •...
Page 12 USER SETTINGS NOTE • Your monitor’ s OSD (On Screen Display) may differ slightly from that shown in this manual. Activating the Main Menu Press the joystick button on the bottom of the monitor. Move the joystick up/down and left/right to set the options. Press the joystick button once more to exit the main menu.
Page 13 Main Menu Features Main Menu Description Input Sets input mode. Power Off Turns off the monitor. Settings Configures the screen settings. Picture Mode Sets the picture mode. Exit Exits the main menu. Menu Settings To view the OSD menu, press the joystick button at the bottom of the monitor and then enter the Settings. Move the joystick up/down and left/right to set the options.
Page 14 Quick Settings Settings > Quick Settings Description Brightness Adjusts the brightness of the screen. Auto Brightness Optimizes the brightness automatically for surrounding illuminance. Contrast Adjusts the contrast of the screen. Adjusts the volume. Volume NOTE • You can adjust Mute / Unmute by moving the joystick button to in the Volume menu. Set your own color temperature.
Page 15 Input Settings > Input Description Input List Selects the input mode. When automatic input switch is set to On, display will automatically switch to new input when connected. Auto Input Switch Enables Auto Input Switch. Disables Auto Input Switch. Adjusts the aspect ratio of the screen. Full Wide Displays the video in widescreen, regardless of the video signal input.
Page 16 NOTE • If the Picture Mode is changed in the DP (DisplayPort) input, the screen may flicker or the resolution of your PC screen may be affected. • Calibration 1/Calibration 2 : Please install LG Calibration Studio to run calibration.
Page 17 [Picture Mode on HDR signal] Settings > Picture Description Custom Allows the user to adjust each element. Vivid Optimized the screen for HDR vivid colors. Cinema Optimized the screen for HDR video. This mode is optimized for FPS games.It is suitable for very dark FPS games. Picture Mode This mode is optimized for RTS Game.
Page 18 Settings > Picture Description Brightness Adjusts the brightness of the screen. Auto Brightness Optimizes the brightness automatically for surrounding illuminance. Contrast Adjusts the contrast of the screen. Sharpness Adjusts the sharpness of the screen. High Optimizes the screen for crystal clear images. Best for high-definition video or games. Optimizes the screen for comfortable viewing, with images at the middle level between the low and high modes.
Page 19 Settings > Picture Description Sets a response time for displayed pictures based on the speed of the screen. For a normal environment, it is recommended that you use Fast. For a fast-moving picture, it is recommended that you use Faster. Once Faster Mode is selected, Motion Blur may occur depending on the content.
Page 20 Settings > Picture Description The indicator is displayed on the upper left of the screen. It will reflect the actual frame rate that is received at the input. You can also adjust the position of FPS Counter. (upper left / upper right / lower right / lower left) Does not use the FPS Counter feature.
Page 21 Sound Settings > Sound Description Adjusts the volume level. Volume NOTE • You can adjust Mute / Unmute by moving the joystick button to▼in the Volume menu. MaxxAudio® by waves, recipient of a Technical GRAMMY Award® is a suite of studio-quality sound tools for a superior listening experience. Waves MaxxAudio®...
Page 22 General Settings > General Description Language Sets the menu screen to the desired language. USB Selection Select the USB upstream cable connection port to use USB hub of the monitor. USB Switch Switch the USB device connected to the monitor to another input source. Set the USB-C settings to be optimized for screen resolution or USB data rate.
Page 23 Settings > General Description Turns the power LED on the bottom of the monitor on or off. NOTE • When the Power LED function is turned on, it operates as follows: Power LED - On Mode: White - Sleep Mode (Standby Mode): Flashing White - Off Mode: Off Feature that automatically turns off the monitor when there is no movement on the screen for a period of time.
Page 24 Settings > General Description The following display information will be shown; Total Power On Time, Resolution. Information Cancel the select. Do you want to reset your Reset to Initial Settings settings? Returns to the default settings.
Page 25 TROUBLESHOOTING Nothing is displayed on the screen. • Is the monitor's power cord plugged in? Check if the power cord is correctly plugged into the power outlet. • Is the power LED on? Check the power cable connection and press the power button. •...
Page 26 Have you installed the display driver? Be sure to install the display driver from the display driver CD (or diskette) that comes with your display. Or, you can also download the driver from our web site: http://www.lg.com. • Make sure to check if the graphics card supports Plug and Play function.
Page 27 PRODUCT SPECIFICATION Color Depth 8-bit / 10-bit color is supported. Max Resolution 3840 x 1600 @ 144 Hz HDMI Recommended Resolution 3840 x 1600 @ 144 Hz Resolution Max Resolution 3840 x 1600 @ 144 Hz USB-C / DP Recommended Resolution 3840 x 1600 @ 144 Hz Power Sources Power Rating...
Page 28 Factory Support Mode (Preset Mode, PC) HDMI Preset Mode Horizontal Frequency (kHz) Vertical Frequency (Hz) Polarity (H/V) Remarks 640 x 480 31.469 59.94 800 x 600 37.879 60.317 1024 x 768 48.363 1280 x 720 44.444 59.979 PIP(Large) 1280 x 1024 79.976 75.025 1920 x 1080...
Page 29 DP / USB-C Preset Mode Horizontal Frequency (kHz) Vertical Frequency (Hz) Polarity (H/V) Remarks 640 x 480 31.469 59.94 800 x 600 37.879 60.317 1024 x 768 48.363 1280 x 720 44.444 59.979 PIP(Large) 1280 x 1024 79.976 75.025 1920 x 1080 67.5 720 x 480 29.83...
Page 30 HDMI Timing (Video) Preset Mode Horizontal Frequency (kHz) Vertical Frequency (Hz) 480P 31.5 720P 1080P 67.5 1080P 2160P 2160P...
Page 31 ® This device can be used in all regions. Read the owner's manual (CD) carefully and keep it at hand. Please note that the This Product qualifies for ENERGY STAR label attached to the product provides information for technical support. Changing the factory default configuration and settings or enabling certain optional features and functionalities may increase energy consumption beyond the limits required for ENERGY ®...
