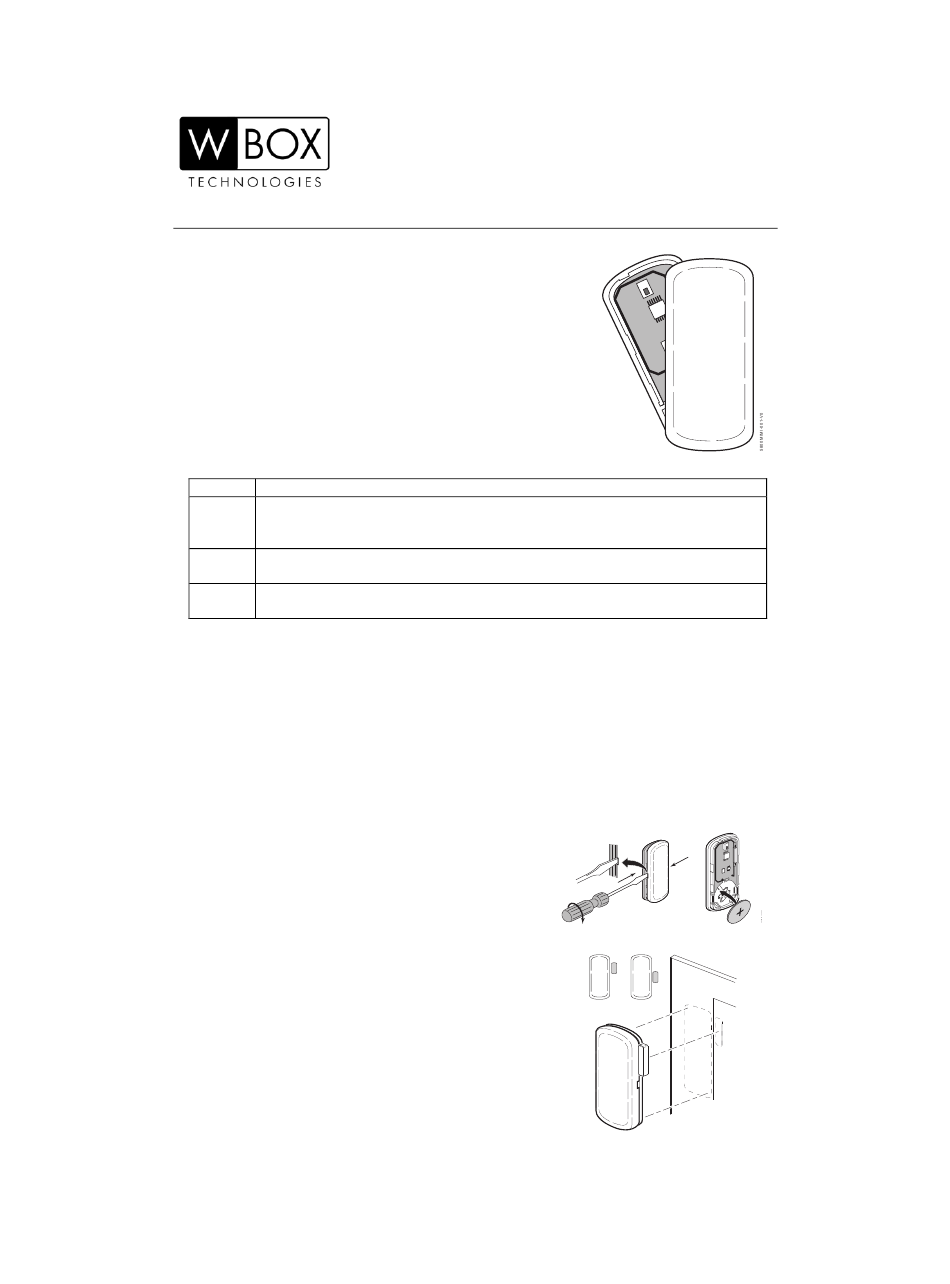

WBOX Technologies 0E-SNGPR345 Installation & Setup Manual

Installation & Setup Guide
FEATURES
• Single zone Door/Window Transmitter
• Compatible with 2 GIG alarm systems that support 345
MHz wireless devices
• Built-in unique serial number which must be enrolled into
the control panel
• Refer to the control panel's installation instructions for
programming details.
LED Indicators
LED Meaning
Lights when the magnet is within proper range of the sensor (1 inch max).
Blue LED is active for 15 minutes after battery is first installed or when the cover
is removed.
Flashes when the sensor transmits. LED is active for 15 minutes after
Green
battery is first installed or when cover is removed.
Upon low battery condition, flashes once about every five seconds for two
Red
minutes after a transmission.
MOUNTING
• Choose a mounting location where the device is stationary and the magnet is
mounted to the moving part of the door or window.
• Verify adequate signal strength by using the control panel's Go/No Go test (see
control's instructions) before mounting permanently.
• Avoid mounting in areas where it will be exposed to moisture or where the operating
temperature of 32 to 120ºF (0 to 50ºC) will be exceeded.
• Keep the sensor and magnet away from metal or metallic surfaces such as foil
wallpaper.
• Avoid mounting the sensor in areas with a large quantity of metal or electrical wiring,
such as a furnace or utility room.
1. Install the Battery
a. Open the cover.
b. Install the battery with "+ + + + " side up.
c. Replace the cover.
The blue and green LEDs will be active for 15
minutes. To reactivate, remove the cover.
2. Mount the Sensor & Magnet
a. Mount the sensor on the frame of the protected
door or window using double-faced tape
(supplied).
b. Mount the magnet (supplied) on the protected
door or opening portion of the protected
window. Check that the blue LED lights when
the door or window is closed.
0E-SNGPR345
345MHz Wireless Sensor
(2GIG ® Compatible)
5800MIMI-002-V0
X
CORRECT INCORRECT
5800MIMI-008-V1
