WBOX Technologies 0E-PIR345 Installation & Setup Manual

FEATURES
The 0E-PIR345 is state-of-the art motion sensor that directly converts the infrared detector signal into digital form, for best reliability and stability.
Additionally, it provides "best-in-class" false alarm rejection with excellent intruder detection.
Sensor Initialization
Following power-on, the 0E-PIR345 Motion sensor is fully operational after a one-minute warm-up.
Walk Test
Note: The sensor should be tested once per year. The LED should turn ON (for Alarm) after about two to four normal steps. Each time the LED turns
ON, wait for it to turn OFF. Then, wait 12 seconds before continuing the walk test. When there is no motion in the monitored area, the LED should remain
OFF. It can be turned off after 5 mins, so it doesn't continue to consume power.
Alarm Processing
Dual-element detector fields-of-view alternate between (+) and (-) polarity. HighBar™ - qualified signal events are counted as "pulses" exclusively when
polarity alternates. Depending on sensitivity setting, (+,-), (-,+), (+,-,+) or (-,+,-) will cause an alarm.
Pet Immunity
The sensor is designed to allow the presence of pets (60 lbs or lighter) without signaling an alarm. It includes a special microelement lens array that
produces much stronger optical signals for humans than for pets 60 lbs or lighter. Furthermore, the optical sensitivity of each sensor is factory-calibrated
to ensure accurate discrimination between humans and pets.
Note: Pets come in many varieties. Some pets (especially larger ones with
very short hair, even if lighter than 60 lbs) may produce enough infrared
radiation to cause alarms. 0E-PIR345 users are strongly advised to test the
sensor with their own pets, in order to verify that the sensor will not signal an
alarm when their pets are moving within its fields of view.

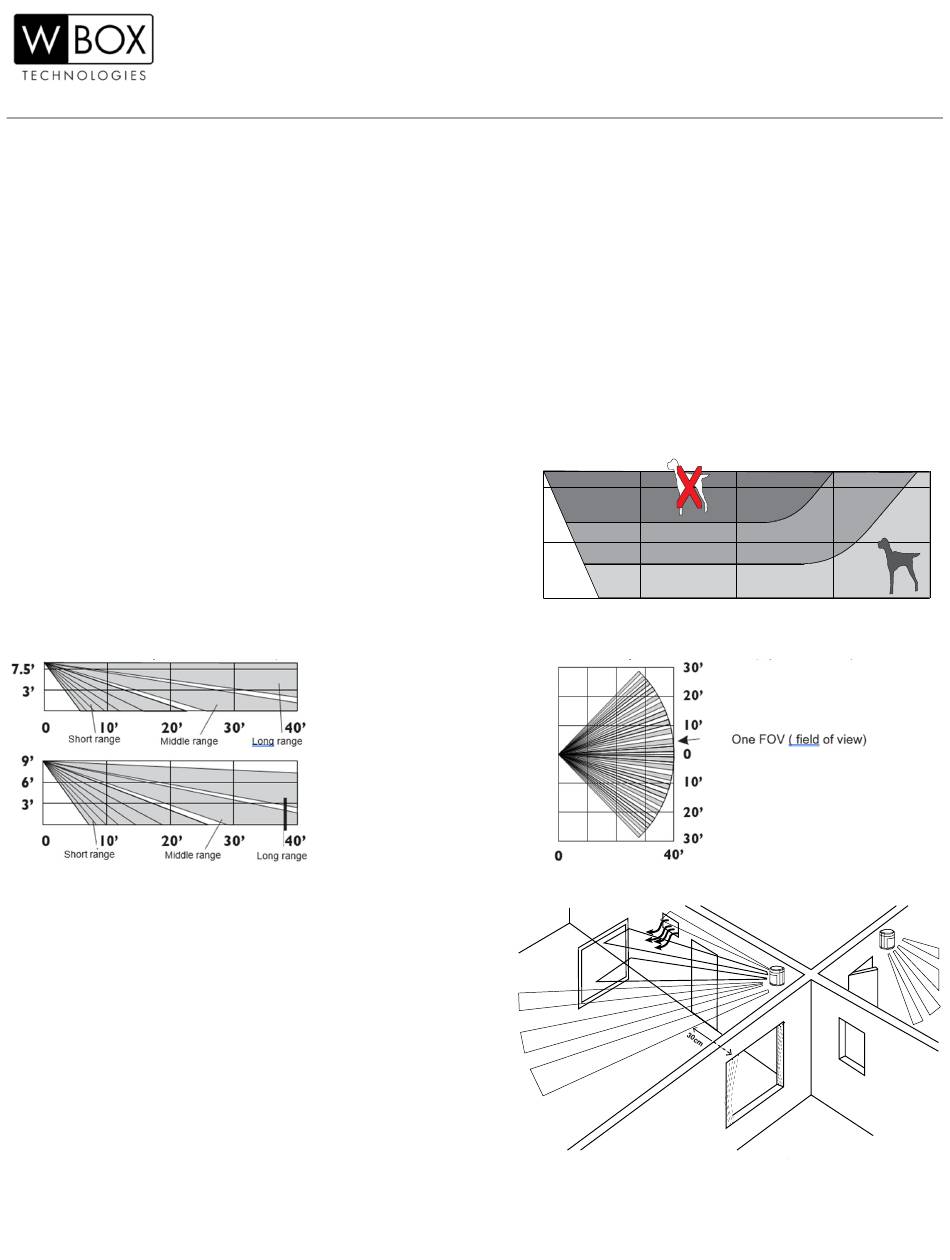

This diagram shows the 0E-PIR345 zones of greatest human/pet
discrimination. The 0E-PIR345 should be mounted so that pets will occupy
only the lighter-colored spaces.
Sensor Optical View Pattern (side view, in feet)
0E-PIR345 Wireless PIR Installation Instructions
1. Mounting Location
A. Wall Mounting
1) Sensor base installed flat on vertical wall (+/- 2 degrees)
B. All Mounting
1) Height = 7.5' or 10' above floor of monitored area
2) Clear line-of-sight from sensor to monitored area
Note: Glass will block the sensor's view.
3) Wall temperature similar to walls/floor of monitored area
4) Sensor aimed away from windows and reflected sunlight
5) Sensor aimed away from heaters or heater/cooler outlets
Sensor aimed away so that it covers likely intruder paths
6)
Installation & Setup Guide
7.5'
3'
0 10'
Sensor Optical View Pattern: (top view, in feet)
B6
X
!
B2
B4
0E-PIR345
345MHz Wireless PIR
(2GIG ® Compatible)
20' 30'
A1
room_layout-001-V0
40'
