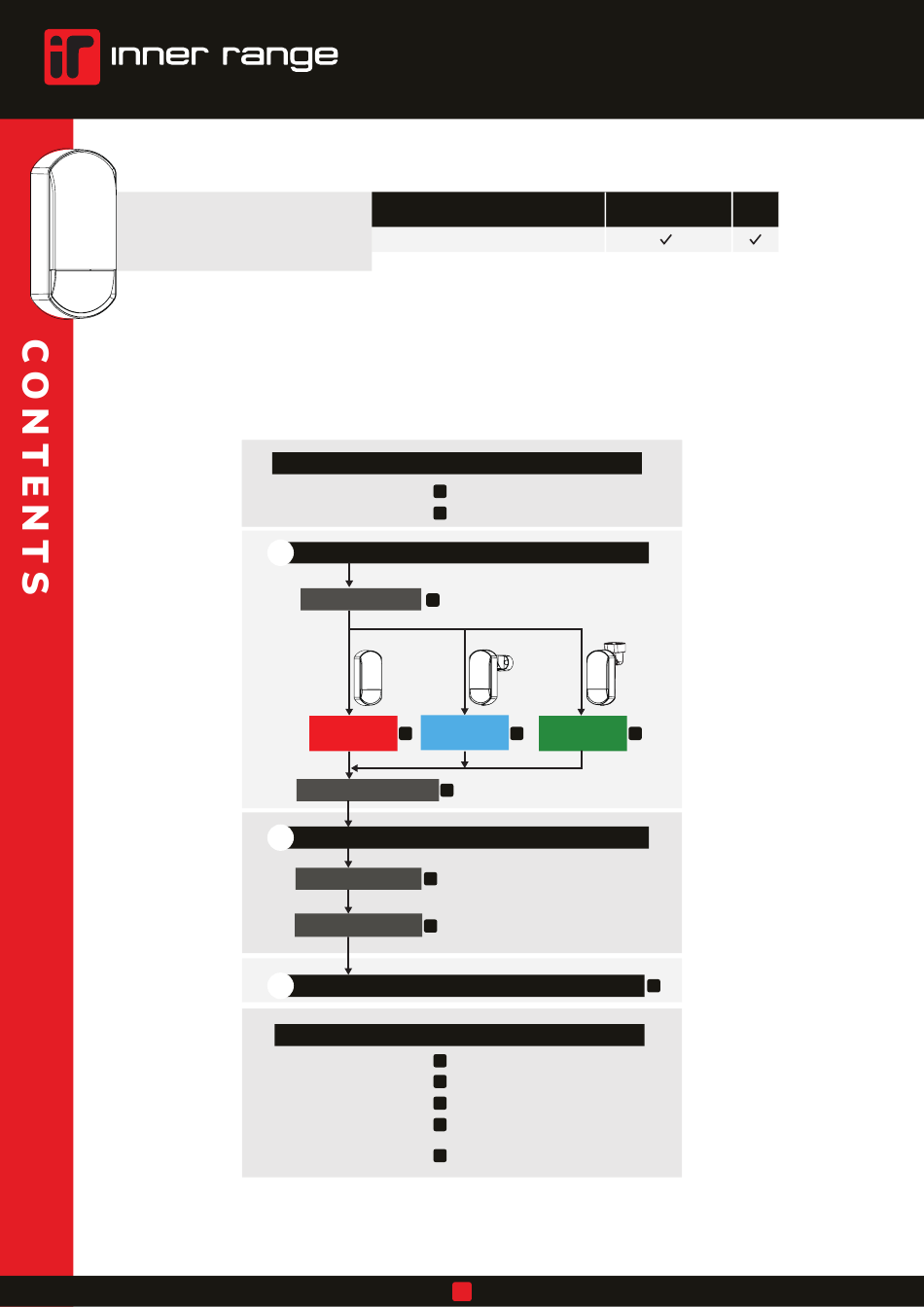

STANDARD
MODELS
Before installation
- Manufacturer's statement
- Parts identification
1
Installation
Disassemble
Wall mount
without bracket
Assemble and connect
2
Settings
Wide/Narrow setting
Jumper pin settings
3
Checking
Others
- Specifications
- Dimensions
- Detection area
- Angle adjustment
with bracket IR-D-CW-G2
- Compliance
INSTALLATION INSTRUCTIONS
IR-D-P1
Page
2
3
3
Wall mount
Ceiling mount
4
5
with bracket
7
8
8
11
12
12
13
13
1
FLEXIBLE RANGE INDOOR DETECTOR
Wide/Narrow area
Flip lens
6
with bracket
10
PIR
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Inner Range IR-D-P1
Summary of Contents for Inner Range IR-D-P1
- Page 1 FLEXIBLE RANGE INDOOR DETECTOR INSTALLATION INSTRUCTIONS Wide/Narrow area STANDARD Flip lens MODELS IR-D-P1 Before installation Page - Manufacturer's statement - Parts identification Installation Disassemble Wall mount Wall mount Ceiling mount with bracket without bracket with bracket Assemble and connect Settings...
- Page 2 Before installation - Manufacturer's statement Symbol Meaning Symbol Meaning Check mark indicates recommendation. Failure to follow the instructions provided with this indication Warning Nix sign indicates prohibition. and improper handling may cause death or serious injury. Failure to follow the instructions provided with this indication Special attention is required to the Caution NOTE...
- Page 3 - Parts identifications Base Sponge Main unit Option IR-D-CW-G2* Bracket for wall / ceiling mount Cover Mounting screw x 2 Joint screw x 3 Fixing screw x 2 * Not certified to EN 50131-2-2/4 Lens Installation 1-1. Disassemble Remove the main unit Open the cover Unlock the cover 180°...
- Page 4 1-2. Wall mount without bracket How to break the knockouts Wire through the base Wiring knockouts For Wall/ Corner mount Surface wiring : Upper For Wall/ Corner mount : Lower Hidden wiring: A. Surface wiring B. Hidden wiring A-1. Upper A-2.
- Page 5 1-3. Wall mount with bracket Wire and mount on the wall Wiring knockout guide Mounting screw Punch out 3 knockout guides to open the wiring hole to allow wire run. Wiring knockout hole NOTE See page 4 for how to break the knockouts. Fix the base with the fixing screws Join the base on the bracket (optional)
- Page 6 1-4. Ceiling mount with bracket How to change the bracket to the ceiling mounting [1] Loosen the fixing screw. [2] Rotate the body. [3] Tighten the fixing screw. WALL CEILING Rear side Rear side WALL CEILING Wire and mount on the ceiling Wiring knockout guide Punch out 3 knockout guides to open...
- Page 7 [2] Push the bottom of the PCB over the protruding claws. Connect wires to the terminal Power Spare Zone Input ALARM TAMP Remote IR-D-P1 N.C. N.C. +12 V - (Normally Close) Alarm Tamper resistors Relay & Tamper inside the detector...
- Page 8 Settings 2-1. Wide/Narrow setting Page Go to 2-2 on to skip 2-1 Set the Flip lens to “Wide" or “Narrow" when using the default “Wide” setting. WIDE NARROW Default NOTE Install the lens so that the letters on the cover and on the lens match your intention. How to remove the lens Get over the rib, then pull up the lens.
- Page 9 When “Narrow" is selected, MW detection will be disabled. 2-2. Jumper pin settings LENS MW SHORT LONG Wide/Narrow MW sensitivity [N/A for IR-D-P1] ON OFF LED SENS PIR sensitivity H: High sensitivity M: Medium sensitivity L: Low sensitivity (Pet tolerance mode;...
- Page 10 Checking 3-1. Walk test Confirm that the LED pin is “ON" , then close the cover. Walk in the detection area to check the detecting performance via LED indication. ON OFF LED Return the LED pin to “OFF" after the walk test, if necessary. Lock the cover ON OFF LED (optional)
- Page 11 Other - Specifications Model IR-D-P1 Installation Detection method Passive infrared Wide ： 12 m (40 ft.) 85°/ Narrow ： 18 m (60 ft.) 5° Coverage ( No MW detection at “Narrow” setting ) Detection zones Wide: 76 zones/ Narrow: 12 zones Mounting height 2.0 to 3.0 m (6'7"...
- Page 12 Narrow - Side view - 40 ft. 60 ft. * 2.4 * 2.4 9 ft. 9 ft. 12 m 18 m NOTE * 2.4 m dotted line indicates the recommended mounting height. Narrow area settings are certified to the following standards. EN 50131-2-2 (IR-D-P1)
- Page 13 Plot No S20141, PO Box 16854 200 Foster Crescent Mississauga, National Sales Office 95 Brigade Road, Jebel Ali Free Zone - South, Dubai, UAE Ontario, Canada L5R-3Y5 Bangalore, 560 025 India IR INSTALL MANUAL: 63PIR-OS-IM 202310-31 Copyright (C) 2023 Inner Range Pty Ltd.
