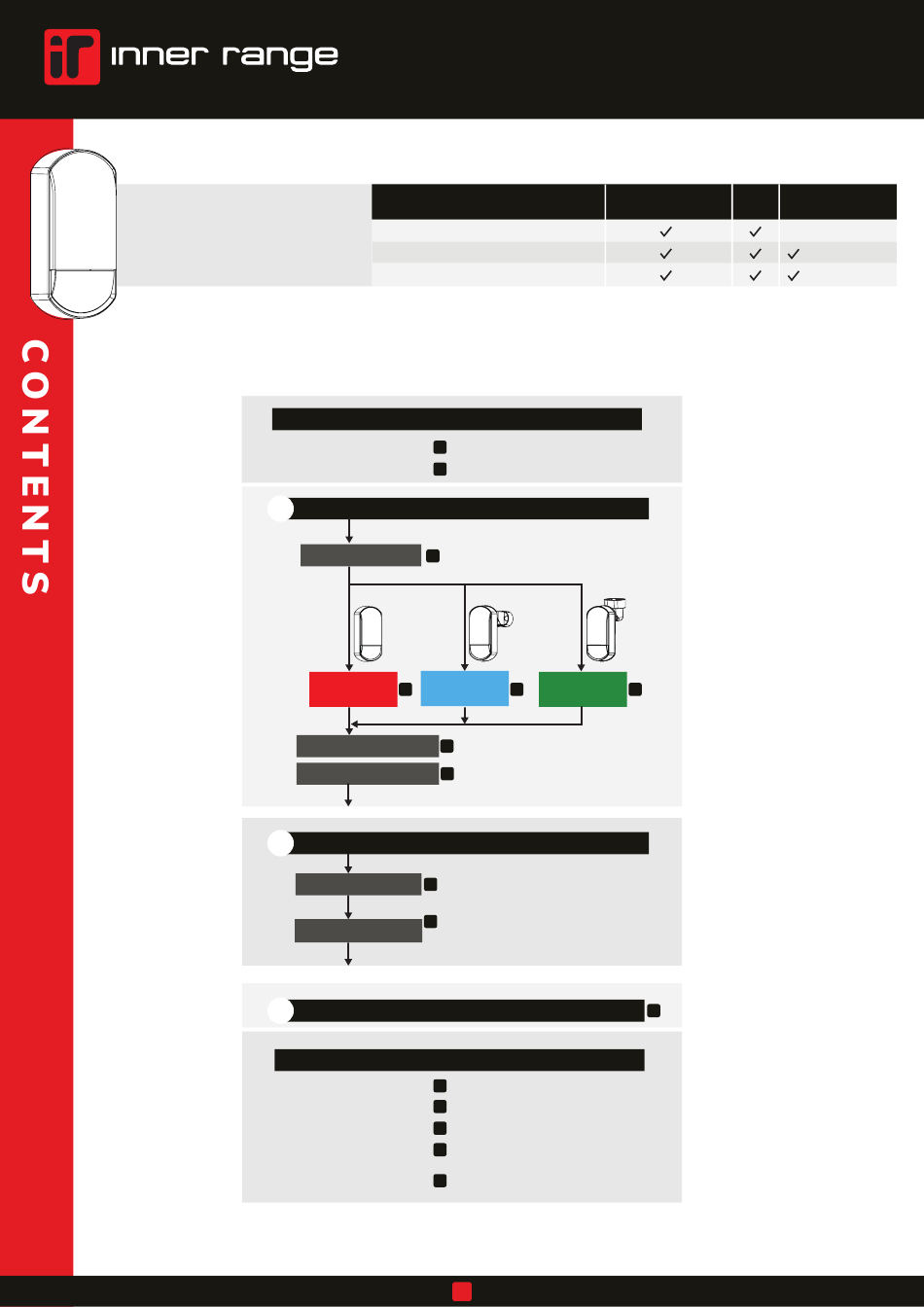

Table of Contents
Advertisement
Quick Links
PROFESSIONAL
MODELS
Before installation
- Manufacturer's statement
- Parts identification
1
Disassemble
Assemble and connect
PEU settings
2
Wide/Narrow setting
Jumper pin settings
3
- Specifications
- Dimensions
- Detection area
- Angle adjustment
- Compliance
INSTALLATION INSTRUCTIONS
IR-D-P1E
IR-D-P2E
IR-D-P2E-UK *1
*1 Not certified to UL
Page
2
3
Installation
3
Wall mount
Wall mount
4
with bracket
without bracket
7
8
Settings
9
10
Checking
Others
12
13
13
14
with bracket IR-D-CW-G2
15
1
FLEXIBLE RANGE INDOOR DETECTOR
Wide/Narrow area
Flip lens
Ceiling mount
5
6
with bracket
11
PIR
Microwave
(10,525 GHz)
(10,587 GHz)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Inner Range IR-D-P1E
Summary of Contents for Inner Range IR-D-P1E
- Page 1 FLEXIBLE RANGE INDOOR DETECTOR INSTALLATION INSTRUCTIONS Wide/Narrow area Microwave Flip lens PROFESSIONAL IR-D-P1E MODELS (10,525 GHz) IR-D-P2E IR-D-P2E-UK *1 (10,587 GHz) *1 Not certified to UL Before installation Page - Manufacturer's statement - Parts identification Installation Disassemble Wall mount Wall mount...
-
Page 2: Before Installation
Before installation - Manufacturer's statement Symbol Meaning Symbol Meaning Check mark indicates recommendation. Failure to follow the instructions provided with this indication Warning Nix sign indicates prohibition. and improper handling may cause death or serious injury. Failure to follow the instructions provided with this indication Special attention is required to the Caution NOTE... -
Page 3: Parts Identifications
- Parts identifications Base Accessories Sponge PEU ** Plug-in EOL Unit Main unit Cover Option IR-D-CW-G2 * Bracket for wall/ceiling mount Mounting screw x 2 Joint screw x 3 Fixing screw x 2 Lens * Not certified to EN 50131-2-2/4 ** Not evaluated by UL Installation 1-1. -
Page 4: Wall Mount
1-2. Wall mount without bracket How to break the knockouts Wire through the base Wiring knockouts For Wall/ Corner mount Surface wiring : Upper For Wall/ Corner mount : Lower Hidden wiring: A. Surface wiring B. Hidden wiring A-1. Upper A-2. -
Page 5: With Bracket
1-3. Wall mount with bracket Wire and mount on the wall Wiring knockout guide Mounting screw Punch out 3 knockout guides to open the wiring hole to allow wire run. Wiring knockout hole NOTE See page 4 for how to break the knockouts. Fix the base with the fixing screws Join the base on the bracket (optional) -
Page 6: Ceiling Mount
1-4. Ceiling mount with bracket How to change the bracket to the ceiling mounting [1] Loosen the fixing screw. [2] Rotate the body. [3] Tighten the fixing screw. WALL CEILING Rear side Rear side WALL CEILING Wire and mount on the ceiling Wiring knockout guide Punch out 3 knockout guides to open... - Page 7 (Normally Close) Power Spare Remote Zone Input * State not evaluated by UL Use included PEU for Inner Range compatible EOL. See 1-6 Power cable length The power cable should be limited to the following length. IR-D-P1E IR-D-P2E WIRE GAUGE...
- Page 8 1-6. PEU settings When using a PEU (Plug-in End of line Unit), no resistors need to be fitted. The PEU packaged with this detector is designed for Inner Range systems. Alarm Tamper resistors Relay & Tamper inside the detector PEU socket...
- Page 9 Settings 2-1. Wide/Narrow setting Page Go to 2-2 on to skip 2-1 Set the Flip lens to “Wide" or “Narrow" when using the default “Wide” setting. WIDE NARROW Default NOTE Install the lens so that the letters on the cover and on the lens match your intention. How to remove the lens Get over the rib, then pull up the lens.
-
Page 10: Jumper Pin Settings
How to install the lens Push the lens firmly at 3 points in numerical order. Set the jumper pin to “Wide" or “Narrow" Caution LENS The jumper pin must be “Narrow", when the lens is set to “Narrow". Wide/Narrow NOTE Default setting is “Wide". - Page 11 Checking 3-1. Walk test Confirm that the LED pin is “ON" , then close the cover. Walk in the detection area to check the detecting performance via LED indication. ON OFF LED Return the LED pin to “OFF" after the walk test, if necessary. Lock the cover ON OFF LED (optional)
-
Page 12: Specifications
Other - Specifications Model IR-D-P1E IR-D-P2E / UK Installation Detection method Passive infrared Passive infrared and Microwave Wide ： 15 m (50 ft.) 85°/ Narrow ： 24 m (80 ft.) 5° Coverage ( No MW detection at “Narrow" setting ) -
Page 13: Detection Area
- Dimensions with IR-D-CW-G2 bracket 61.5 (2.42) 50.9 (2.00) 102.6 (4.04) 120.1 (4.73) Unit: mm (inch) - Detection area Wide - Top view - Narrow - Top view - 50 ft. 80 ft. 6 ft. Short 24 m 20 ft. Long 14 m Wide... - Page 14 - Angle adjustment with bracket IR-D-CW-G2 NOTE * If the detector cover does not reach the ceiling, it can be swung up to +5°.
- Page 15 The end user has to also be informed that any changes or modi cations not expressly approved by the manufacturer could void the user's authority to operate this equipment. ■ EN 50131-1 Grades and Environmental Class; Security Grade 2, Environmental Class II Applied Standards; EN 50131-2-2 (IR-D-P1E), EN 50131-2-4 (IR-D-P2E and IR-D-P2E-UK ) Tested and certified by Kiwa ■ PD6662:2017 I N N E R R A N G E .
