Summary of Contents for Massimo KC1130S

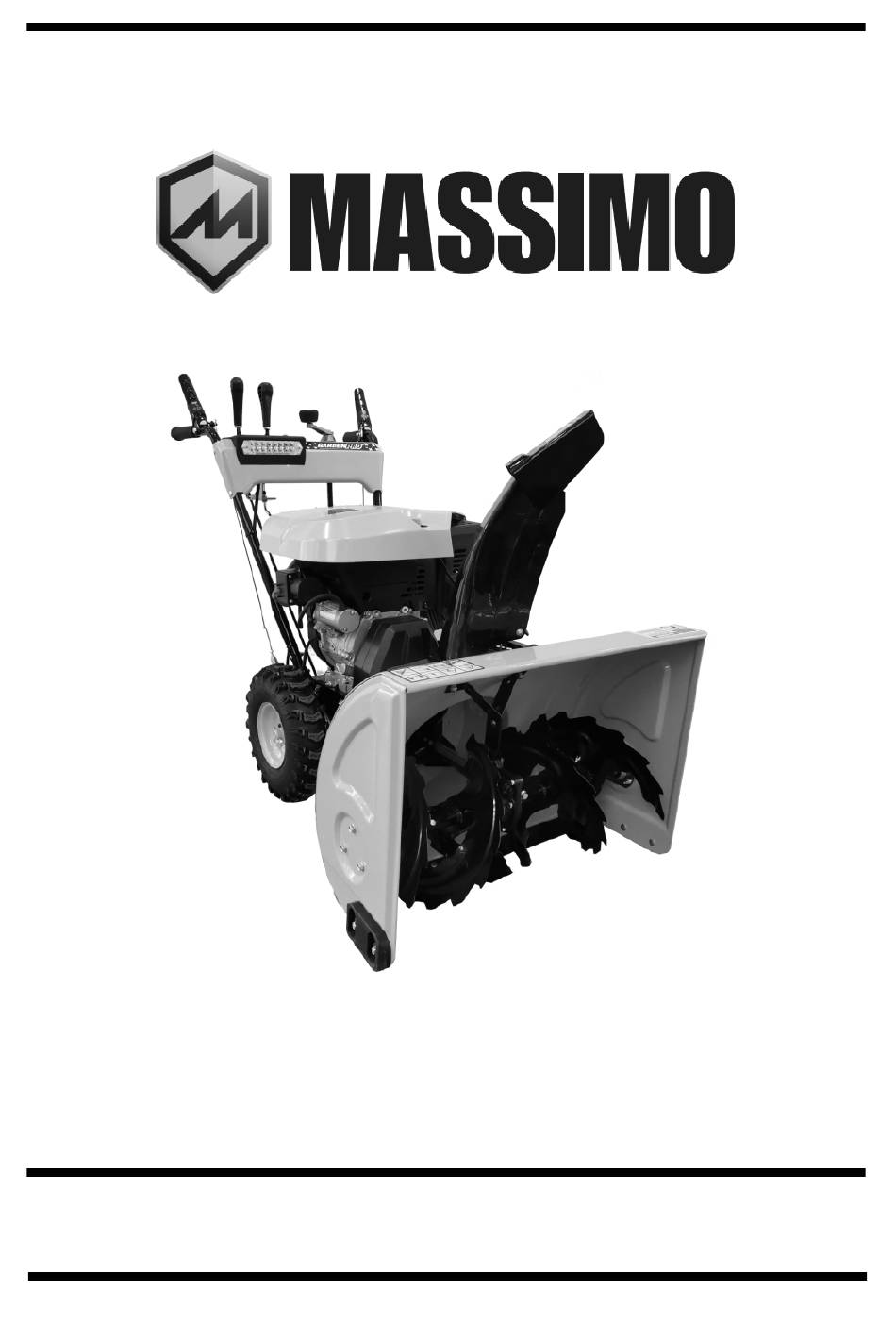

- Page 1 OPERATOR’S MANUAL KC1130S Snow Blower IMPORTANT READ INSTRUCTIONS CAREFULLY BEFORE OPERATION!
- Page 2 SAFE OPERATION PRACTICES WARNING: This symbol points out important safety instructions which, if not followed, could endanger the personal safety and/or property of yourself and others. Read and follow all instructions in this manual before attempting to operate this machine. Failure to comply with these instructions may result in personal injury.
- Page 3 3. Do not operate the equipment without on a truck or trailer bed with a plastic wearing adequate winter garments. Avoid liner. Always place containers on the loose fitting clothing that can get caught in ground, away from your vehicle, before moving parts.
- Page 4 Stop the engine (motor) whenever you Keep children and others away. leave the operating position, before 14. Do not overload machine capacity by unclogging the collector/impeller housing attempting to clear snow at too fast rate. or discharge chute, and when making any 15.
- Page 5 are subject to wear and damage. For your Clearing a Clogged Discharge safety protection, frequently check all Chute components and replace with original equipment manufacturer’s (OEM) parts Hand contact with the rotating impeller inside only. ”Use of parts which do not meet the the discharge chute is the most common cause original equipment specifications may lead of injury associated with snow throwers.
- Page 6 IMPORTANT Refer to your Massimo Owner’s Manual for any information relating to the use of your snow blower. These instructions are for assembly of your new accessory to futher enhance your snow blower experience. Installing the Snow Blower Installing Forward and drive control cable assembly Couple the cable eyelet to the specific opening (fig.
- Page 7 Place the handle on the rod, and fix it tight in right direction (Fig. 4). Fig. 4 IMPORTANT Refer to your Massimo 5. Mount the chute: Owner’s Manual for any a) Position the sliding ring (Fig. 5 A) and the discharge chute (Fig. 5 information relating to B) on the flange fitting (Fig.
- Page 8 Fix the gasoline engine cover on the two supporting frames. See Fig. 7-2. IMPORTANT Fig. 7-1 Fig. 7-2 Refer to your Massimo Owner’s Manual for any information relating to the use of your snow blower. These instructions are for...
- Page 9 5. Use good quality oil marked A.P.I. service SF, SG or SH. Use SAE 5W30 oil. Use SAE OW30 oil for temperatures under -18 ℃. Do not use SAE 10W50. IMPORTANT Refer to your Massimo Owner’s Manual for any information relating to the use of your snow blower.
- Page 10 IMPORTANT avoid the possibility of electric shock. Refer to your Massimo If your home’s wiring system is not a grounded system, do not use Owner’s Manual for any this electric starter under any conditions.
- Page 11 5. As the engine warms, slowly rotate the choke control to the OFF IMPORTANT position. If the engine falters, quickly rotate the choke control back to the Refer to your Massimo FULL position and then slowly into the OFF position again. Owner’s Manual for any NOTE: Allow the engine to warm up for a few minutes after starting.
- Page 12 Select a speed appropriate for the snow conditions and a pace you’re comfortable with. IMPORTANT NOTE: When selecting a Drive Speed, use the slower speeds until Refer to your Massimo you are comfortable and familiar with the operation of the snow Owner’s Manual for any thrower.
- Page 13 IMPORTANT To adjust the skid shoes: 1. Loosen the four hex nuts (Two on each side) and carriage bolts. Move Refer to your Massimo skid shoes to desired position. Owner’s Manual for any 2. Make certain the entire bottom surface of skid shoe is against the information relating to ground to avoid uneven wear on the skid shoes.
- Page 14 Wheels At least once a season, remove both wheels. Clean and coat the IMPORTANT axles with a multipurpose automotive grease before reinstalling Refer to your Massimo wheels. Owner’s Manual for any information relating to Chute Directional Control...
- Page 15 Shave Plate and Skid Shoes IMPORTANT The shave plate and skid shoes on the bottom of the snow thrower Refer to your Massimo are subject to wear. They should be checked periodically and Owner’s Manual for any replaced when necessary.
- Page 16 Fig. 23 b. Unhook the support bracket spring from the IMPORTANT frame. See Figure 23. Refer to your Massimo 6. Remove the belt from the auger pulley, and Owner’s Manual for any slip the belt between the support bracket and information relating to auger pulley.
- Page 17 See Figure 27. IMPORTANT 3. Carefully remove the hex nut and washer which secures. See Figure 28. The hex shaft to Refer to your Massimo the snow thrower frame and lightly tap the shaft’s Owner’s Manual for any Fig. 29...
- Page 18 IMPORTANT ● Engine should still be warm but not hot from recent use. Refer to your Massimo 1. Locate the oil drain plug, See Figure 38. Owner’s Manual for any 2. Be sure the gas cap is on and is tighten securely.
- Page 19 1. Remove ALL gasoline from the carburetor and the fuel tank to prevent gum deposits from forming on these parts and harming the engine. Refer to your Massimo 2. Run the engine until the fuel tank is empty and it stops due to lack of Owner’s Manual for any...
- Page 20 NOTES: For parts, accessories or to find a dealer near you, visit: www.MassimoMotor.com...
