Shenzhen Lithium Valley Technology Co., Ltd.
LV-BST-H2.56Aa
This Manual introduces LV-BST-H2.56Aa from Lithiumvalley.
LV-BST-H2.56Aa is a High-voltage Lithium-ion Phosphate Battery
storage system. Please read this manual before you install the battery
and follow the instruction carefully during the installation process. Any
confusion, please contact Lithiumvalley immediately for advice and
clarification.
Catalogue
1.1
General Safety....................................................................................2
1.2
Personal Safety....................................................................................2
1.3
Electrical Safety....................................................................................3
1.4
Transportation Safety.............................................................................3
2.1
Product introduction................................................................................4
2.2
Specification.........................................................................................4
2.2.1
Battery Module....................................................................................4
2.2.2
Definition..........................................................................................................6
3 Installation.................................... ............................................................6
3.1
Tool.....................................................................................................6
3.2
Checking deliverables..............................................................................6
3.3
Installation requirement............................................................................6
3.4
Installation...............................................................................................7
4 Maintenance .............................................................................................11
1
Operation Manual
Advertisement
Table of Contents
Related Manuals for Lithium Valley LV-BST-H2.56Aa
Summary of Contents for Lithium Valley LV-BST-H2.56Aa
-
Page 1: Table Of Contents

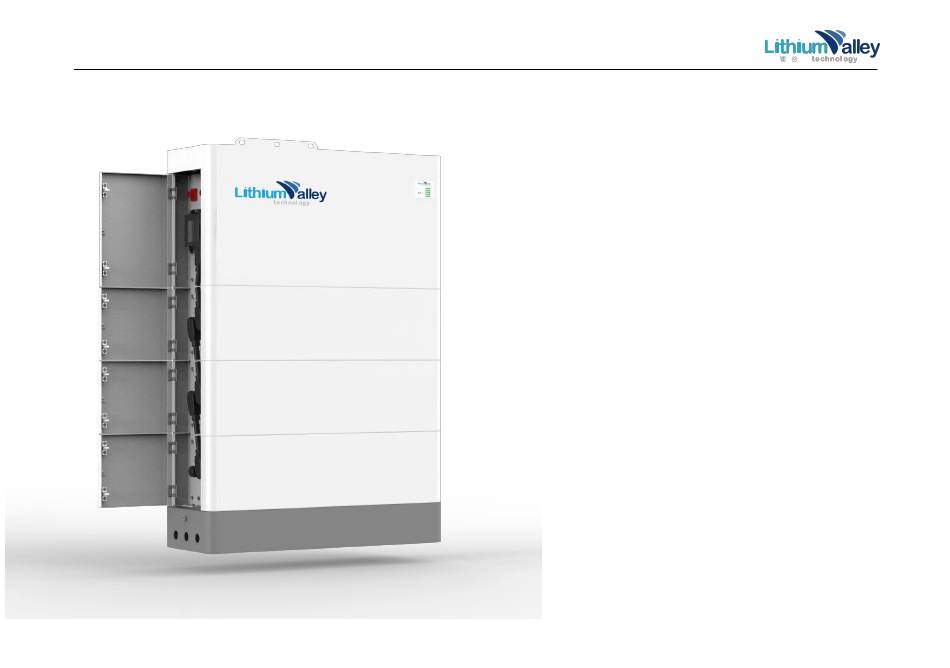

LV-BST-H2.56Aa Operation Manual This Manual introduces LV-BST-H2.56Aa from Lithiumvalley. LV-BST-H2.56Aa is a High-voltage Lithium-ion Phosphate Battery storage system. Please read this manual before you install the battery and follow the instruction carefully during the installation process. Any confusion, please contact Lithiumvalley immediately for advice and clarification. -
Page 2: Safety Information
Shenzhen Lithium Valley Technology Co., Ltd. 1 Safety Information Only qualified professionals or trained people are allowed to install, operate, and maintain the equipment. 1.1 General Safety Personal Safety Please carefully read the manual safety precautions and observe all the safety instructions on the equipment and in this document. -
Page 3: Transportation Safety
Shenzhen Lithium Valley Technology Co., Ltd. Electrical Safety Environment Safety Before installation, ensure that the equipment is intact. Otherwise, electrics hocks or fire may occur. Do not connect or disconnect power cables when battery is power-on. Ensure that the equipment is installed in a dry and well-ventilated ... -
Page 4: System Information
Lithiumvalley. It can be used to support relable power for various types of equipment and systems. LV-BST-H2.56Aa is especially suitable for those application scenes which required high power output, limited installation space, restricted load-bearing and long cycle life. - Page 5 Shenzhen Lithium Valley Technology Co., Ltd. Cable Panel 2 OFF Press Start button of High-voltage box (Which connect with inverter) more than 5s, LED will flash in the front panel and then release the button, the master pack will shut down after all slave packs shut down (Sleep mode).
-
Page 6: Led Indicator Definition
Shenzhen Lithium Valley Technology Co., Ltd. 2.2.2 LED Indicator Definition 3 Installation 3.1 tools Tools Install Cross Screwdriver Hammer drill（10 mm） Rubber mallet flash 1 - 0.25s light//3.75s off flash ESD gloves Safety goggles Anti-dust respirator 2 - 0.5s light / 0.5s off flash 3 - 0.5s Installation light / 1.5s off... -
Page 7: Installation
Shenzhen Lithium Valley Technology Co., Ltd. Place battery in secure location away from children and animals. Step 2 Do not place the battery near any heat sources and avoid sparks. Twist the dowel pin into the base and put the first battery pack on ... - Page 8 Shenzhen Lithium Valley Technology Co., Ltd. Step 4 Step 5 Put the second battery pack onto the first pack. As step3 and step4, put the third battery pack and fourth high-voltage box onto the second battery pack.
- Page 9 Shenzhen Lithium Valley Technology Co., Ltd. Step 6 Step 7 Fixed the battery with the wall using a L shape metal parts and expansion bolts Put the cover onto the battery pack and being fixed with battery pack using screw.
- Page 10 Shenzhen Lithium Valley Technology Co., Ltd. Step 8 Step 9 Connect to ground with a small metal plate as follows. Connect to the power and communication cable.
-
Page 11: Maintenance
Shenzhen Lithium Valley Technology Co., Ltd. 4 Maintenance Connect the power Terminal+(BAT+ )and Teminal-(BAT-) to the inverter or the DC switches. The green cable is the communication for the batteries in series. Recharge Requirements During Normal Storage ...
