Cafe CGE Owner's Manual And Installation Instructions

Bottom freezer refrigerators
Hide thumbs Also See for CGE:

Advertisement

Quick Links

Download this manual
Owner's Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the CGE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cafe CGE

Summary of Contents for Cafe CGE

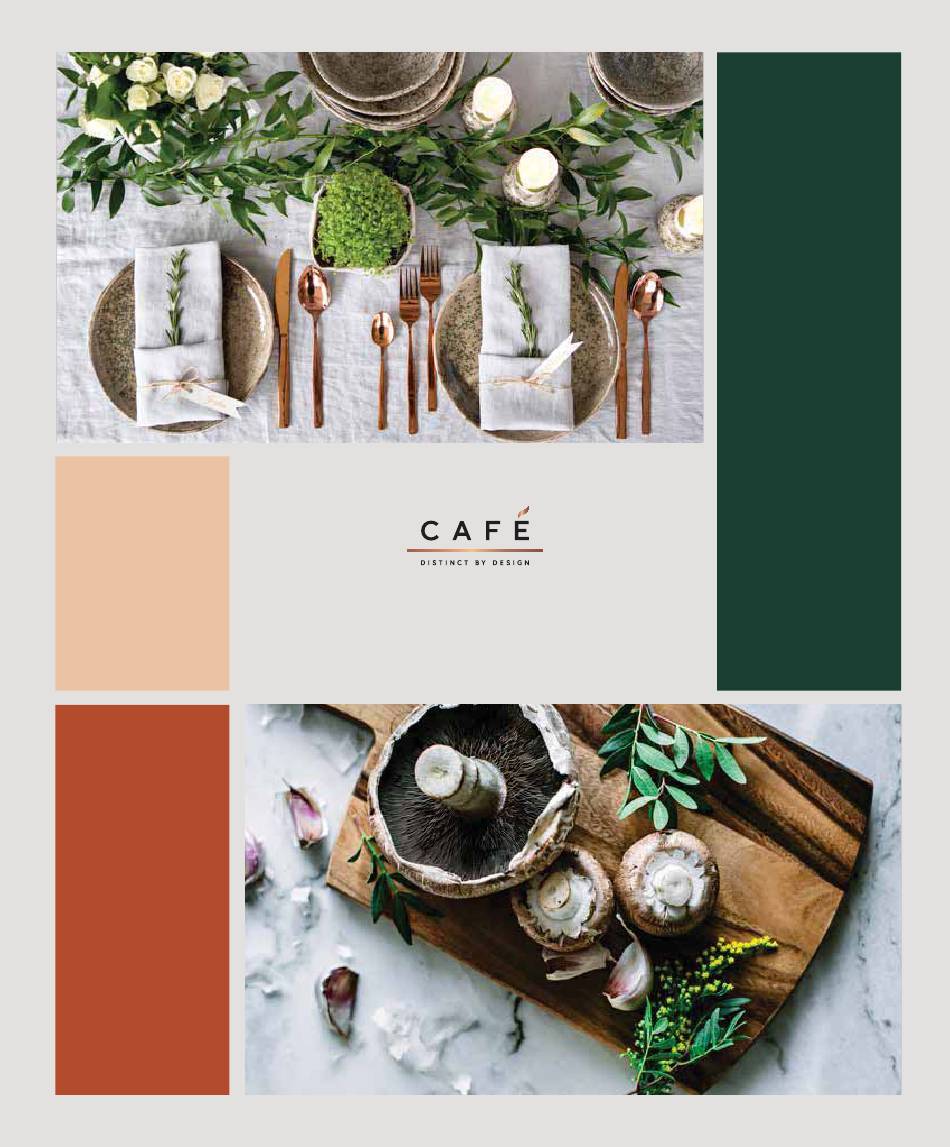

  • Page 1 Owner’s Manual...
  • Page 2 Owner's Manual and Installation Instructions Bottom Freezer Refrigerators Models CGE, CJE, CAE and CHE Contents Safety Information ......3 Troubleshooting .
  • Page 3 THANK YOU FOR MAKING CAFÉ A PART OF YOUR HOME. We take pride in the craftsmanship, innovation and design that goes into every Café product, and we think you will too. Among other things, registration of your appliance ensures that we can deliver important product information and warranty details when you need them.
  • Page 4 IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE To reduce the risk of fire, explosion, electric shock, or injury when using your refrigerator, follow WARNING these basic safety precautions: in accordance with the Installation Instructions before it or mental capabilities or lack of experience and is used.
  • Page 5 IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE WARNING FIRE OR EXPLOSION HAZARD Flammable Refrigerant This appliance contains isobutane refrigerant, the environmentally safe disposal of your refrigerator. also known as R600a, a natural gas with high Keep ventilation openings in the appliance enclosures environmental compatibility.
  • Page 6 IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE CONNECTING ELECTRICITY WARNING ELECTRICAL SHOCK HAZARD Plug into a grounded 3-prong outlet Do not use an extension cord Do not remove the ground prong Failure to follow these instructions can result in death, fire, or electrical shock Do not use an adapter Do not, under any circumstances, cut or remove the third (ground) prong from the power cord.
  • Page 7 Features Model CGE and CJE Autofill Pitcher HCS (Humidity Control System) Designed for hands-free refilling to provide constantly Sealed HCS bin prolongs produce preservation by available chilled filtered water. maintaining humidity in the bin. Showcase LED lighting Vented Bin LED lighting is positioned throughout the interior to Vented bin for storing fruits and vegetables.
  • Page 8 Features Model CAE and CHE Autofill Pitcher Vented Bin Designed for hands-free refilling to provide constantly Vented bin for storing fruits and vegetables. available chilled filtered water. Water filter Showcase LED lighting Filters water and ice. Certified to reduce chlorine- LED lighting is positioned throughout the interior to resistant cysts, lead, select pharmaceuticals, and spotlight areas in the refrigerator.
  • Page 9 Controls All Models We are continuously updating our software. Please reference the full owner's manual online for the latest functionality at cafeappliances.com. In Canada, visit cafeappliances.ca. The recommended temperature settings, preset from the factory, are 37°F (3°C) for the refrigerator and 0°F (-18°C) for the freezer.
  • Page 10 • Err when no filter is present or the wrong filter is installed For all conditions, the display will automatically reset when fault condition is corrected. Model CGE and CJE Convertible Drawer Temperature in the Convertible Drawer is selected by pressing the food item to be kept in the drawer.
  • Page 11 Dispenser AutoFill Pitcher Turn the AutoFill Pitcher feature on by pressing the not fill with water while the left hand FF door is open. AutoFill Pitcher button on the controls at the top of the The pitcher will turn off automatically after filling to fresh food compartment.
  • Page 12 WiFi (for customers in the United States, its territories, and Canada) If your refrigerator has a Connected Appliance Information label, then it can be connected to your WiFi network, allowing it to communicate with your mobile device for remote monitoring, control and notifications. Please visit GEAppliances.com/connect to learn more about connected appliance features and learn what connected appliance apps work with your mobile device.
  • Page 13 Demand Response (some models) This Product has WiFi capability and requires Installing Demand Response Internet connectivity and a wireless router to enable Install the SmartHQ per the instructions on the previous interconnection with an Energy Management System, page. Select the Demand Response page, and choose and/or with other external devices, systems or from the available Demand Response options.
  • Page 14 XWFE Water Filter Water Filter Cartridge INSTALLING THE FILTER IN A BOTTOM The water filter cartridge is located in the left-hand FREEZER REFRIGERATOR refrigerator door behind the rectangular access panel. 1. Open the filter cartridge housing by pulling the door When to Replace the Filter Cartridge open.
  • Page 15 Refrigerator Storage Options Rearranging the Shelves Shelves in the refrigerator compartment are adjustable. To remove: Remove all items from the shelf. Tilt the shelf up at the front. Lift the shelf up at the back and bring the shelf out. To replace: While tilting the shelf up, insert the top hook at the back of the shelf in a slot on the track.
  • Page 16 Refrigerator Storage Options Door Bins Fixed bins can easily be carried from refrigerator to work area. To remove: Lift bin straight up, then pull out. The door bins are not interchangeable, note the location upon removal and replace the bin in its proper location. Sealed and Vented Pans Keep fruits and vegetables organized in separate compartments for easy access.
  • Page 17 Refrigerator Storage Options CONVERTIBLE DRAWER - Model CGE and CJE How To Adjust Drawer Dividers Grasp divider at the top and slide to the left or right How to Remove and Replace Drawer To remove: 1. Pull the drawer out to the stop position.
  • Page 18 Refrigerator Storage Options BASKETS, DRAWERS, AND BINS - Model CGE and CJE Freezer Basket and Drawer Basket. Pizza tray Drawer Ice Bucket Tilt-Out Bin in the Freezer To remove: Press the tab on the right side bracket to remove the freezer drawer bin.
  • Page 19 Refrigerator Storage Options BASKETS, SHELF, AND BINS - Model CAE and CHE Only Freezer Door Bin • Middle and bottom bins on the freezer door can be tilted out for easy access. Select Zone Baskets, Shelf, and Wine Rack Fresh Food Basket or CHE Freezer or Convertible Zone Basket Shelf Removal or Wine Rack Removal...
  • Page 20 Automatic Icemaker A newly installed refrigerator may take 12 to 24 hours to Be sure nothing interferes with the sweep of the feeler begin making ice. arm. When the bin fills to the Connect to potable water supply WARNING level of the feeler arm, only.
  • Page 21 Care and Cleaning Cleaning the Outside FINGERPRINT RESISTANT STAINLESS STEEL*, BLACK STAINLESS, SLATE, DARK SLATE, PAINTED, GLASS - Outside surfaces, door handles, and trim DO NOT use Stainless Steel cleaners on the door surfaces. IMPORTANT: The use of incorrect products may damage the outer finish of Fingerprint Resistant Stainless and Black Stainless models.
  • Page 22 Care and Cleaning Behind the Refrigerator Be careful when moving the refrigerator away from the wall. Lower the leveling legs until they touch the floor. All types of floor coverings can be damaged, particularly WARNING ELECTRICAL SHOCK HAZARD cushioned coverings and those with embossed surfaces. When pushing the refrigerator back, make sure you Raise the leveling legs located at the bottom front of the don’t roll over the power cord or water supply line.
  • Page 23 Installation Refrigerator Instructions Questions? Visit our Website at: cafeappliances.com In Canada, visit cafeappliances.ca BEFORE YOU BEGIN PREPARATION MOVING THE REFRIGERATOR INDOORS Read these instructions completely and carefully. If the refrigerator will not fit through a doorway, IMPORTANT • — Observe all governing codes the refrigerator doors and freezer drawer can be and ordinances.
  • Page 24 Ferrule (sleeve) and drawer removal if needed. Otherwise, skip to section 6. • Consider recycling options for your appliance CGE and CJE packaging material. CLEARANCES NOTE: It is recommended that the floor be protected with a plastic covering throughout the installation process.
  • Page 25 Installation Instructions DIMENSIONS - CAE and CHE Models NOTE: It is recommended that the floor be protected with a plastic covering throughout the installation process. NOTE: Not recommended for installation on carpeted flooring. Description Full Depth Counter Depth Overall Height to Top of the Door (A) 70”...
  • Page 26 Installation Instructions MOVING THE REFRIGERATOR • Using the chart below determine if the width of your passageway can accommodate the depth of the refrigerator. Ensure you have clearance to prevent damage to the refrigerator before safely moving it to the final location.
  • Page 27 Installation Instructions INSTALLING THE REFRIGERATOR REFRIGERATOR LOCATION REFRIGERATOR AND FREEZER HANDLE INSTALLATION Do not install the refrigerator where the temperature will go below 60°F (16°C) because (on some models) it will not run often enough to maintain proper Before You Start…. temperatures.
  • Page 28 Installation Instructions INSTALLING THE REFRIGERATOR (Cont.) REMOVE LEFT-HAND DOOR REMOVE LEFT-HAND DOOR (cont.) WARNING Follow all steps for removing For proper installation later, please follow and reinstalling the door. Failure to follow these instructions, leaving off parts, or overtightening these next steps carefully: screws, can lead to the door falling off and result in Remove the tape keeping the door as straight as injury and property damage.
  • Page 29 Installation Instructions INSTALLING THE REFRIGERATOR (Cont.) REMOVING CONVERTIBLE REMOVE PIZZA TRAY AND DRAWER (on some models) LOWER FREEZER BASKET (on some models) 1. Remove the convertible drawer basket by lifting while rotating the basket upward. 1. Push the top freezer drawer basket all the way inside the freezer compartment.
  • Page 30 Installation Instructions INSTALLING THE REFRIGERATOR (Cont.) REMOVE THE FREEZER REMOVE LOWER RIGHT-HAND DRAWER (on some models) DOOR (on some models) (Cont.) 1. Open lower right-hand door 90°. 3. Remove the door by lifting off hooks. 2. Remove lower hinge cover by removing Phillips head screw and unsnapping cover from hinge.
  • Page 31 Installation Instructions INSTALLING THE REFRIGERATOR (Cont.) REMOVE LOWER HINGE RE-INSTALL PIZZA TRAY AND (if necessary) (on some models) LOWER FREEZER BASKET (on Remove screws that secure hinge to the cabinet. some models) Inner screws need a 5/16” socket. Outer screw 1.
  • Page 32 Installation Instructions INSTALLING THE REFRIGERATOR (Cont.) REINSTALLING THE UPPER LEFT AND RIGHT-HAND DOORS WARNING Follow all steps for removing 2. Lower the refrigerator door onto and reinstalling the door. Failure to follow these the center hinge. instructions, leaving off parts, or overtightening 3.
  • Page 33 Installation Instructions INSTALLING THE REFRIGERATOR (Cont.) TURN ON THE WATER SUPPLY LEVEL THE REFRIGERATOR DOORS Remember a level refrigerator is necessary for getting the doors perfectly even. If you need help, review the previous section on leveling the refrigerator. When the left When the Turn the water on at the shutoff valve (house water door is lower...
  • Page 34 Installation Instructions INSTALLING THE REFRIGERATOR (Cont.) CGE and CJE To place bins into doors: Match your bin with the letter shown. Position the bins over the bin locator and push forward until inserted fully. Push bin down until locked into position.
  • Page 35 Installation Instructions INSTALLING THE REFRIGERATOR (Cont.) CAE and CHE Models To place bins into doors: Match your bin with the letter shown. Position the bins over the bin locator and push forward until inserted fully. Push bin down until locked into position. 49-1000712 Rev.
  • Page 36 Installation Instructions INSTALLING THE WATER LINE BEFORE YOU BEGIN WHAT YOU WILL NEED Recommended copper water supply kits are WX8X2, WX8X3 or WX8X4, depending on the amount of tubing you need. Approved plastic water supply lines are SmartConnect ™ Refrigerator Tubing (WX08X10006, WX08X10015 and WX08X10025).
  • Page 37 Installation Instructions INSTALLING THE WATER LINE (Cont.) Install the shutoff valve on the nearest frequently WHAT YOU WILL NEED (Cont.) used drinking water line. NOTE: The only Café approved plastic tubing is that supplied in SmartConnect Refrigerator Tubing ™ SHUT OFF THE MAIN WATER kits.
  • Page 38 Installation Instructions INSTALLING THE WATER LINE (Cont.) FASTEN THE SHUTOFF CONNECT THE TUBING TO VALVE THE VALVE 1. Fasten the shutoff valve to the cold water pipe Place the compression nut and ferrule (sleeve) with the pipe clamp. for copper tubing onto the end of the tubing and connect it to the shutoff valve.
  • Page 39 Normal Operating Conditions. Newer refrigerators sound different from older refrigerators. Modern refrigerators have more features and use newer technology. Do you hear what I hear? These conditions are normal. HUMMM... WHOOSH... The new high efficiency compressor may run faster and longer than your old refrigerator and you may hear a high-pitched hum or pulsating sound while it You may hear the fans spinning at high speeds.
  • Page 40 Troubleshooting Tips... Before you call for service Save time and money! Review the charts on the following pages first and you may not need to schedule service. Problem Possible Causes What to Do Not filtering Filter bypass installed. Install correct water filter. Leak Detected at Filter Water filter leaking or needs Replace water filter or install filter bypass...
  • Page 41 Troubleshooting Tips... Before you call for service Problem Possible Causes What to Do Freezer cooling, refrigerator not Normal, when refrigerator first Wait 24 hours for temperature in both cooling plugged in or after extended power compartments to reach selected outage temperatures.
  • Page 42 Truth or Myth SERVICE Save time and money! Review the charts on the following pages first and you may not need to schedule service. Truth or Myth Truth or Myth? Answer Explanation The refrigerator water filter may require TRUE The water filter indicator will indicate the need to replace the water replacement, even though the filter indicator filter every six months.
  • Page 43 Truth or Myth SERVICE Save time and money! Review the charts on the following pages first and you may not need to schedule service. Truth or Myth Truth or Myth? Answer Explanation Door handles should always be removed for MYTH Check chart on reverse side of this instruction.
  • Page 44 Café Appliances Refrigerator Limited Warranty cafeappliances.com All warranty service is provided by our Factory Service Centers, or an authorized service technician. To schedule service online, visit us at cafeappliances.com/service. Please have your serial number and your model number available when scheduling service.
  • Page 45 XWFE Water Filter Cartridge Limited Warranty Contact us at geapplianceparts.com. For the period of GE Appliances will replace Thirty Days Any part of the water filter cartridge which fails due to a defect in materials From the date or workmanship during this limited thirty-day warranty.* of the original purchase What GE Appliances will not cover:...
  • Page 46 Performance Data Sheet Model: GE Appliances XWFE performance data sheet and at iapmort.org. Influent challenge Maximum permissible Avg % Substance Tested for Reduction concentration product water Application Guidelines/Water Supply Parameters Reduction (mg/L) concentration (mg/L) Service Flow 0.5 gpm (1.89 lpm) Chlorine Taste and Odor 2.0 mg/L +/- 10% 96.9...
  • Page 47 Notes 49-1000712 Rev. 5...
  • Page 48 Notes 49-1000712 Rev. 5...
  • Page 49 Consumer Support Café Website Have a question or need assistance with your appliance? Try the Café website 24 hours a day, any day of the year! You can also shop for more great Café products and take advantage of all our on-line support services designed for your convenience. In the US: cafeappliances.com In Canada: cafeappliances.ca Register Your Appliance Register your new appliance on-line at your convenience! Timely product registration will allow for enhanced communication and...
