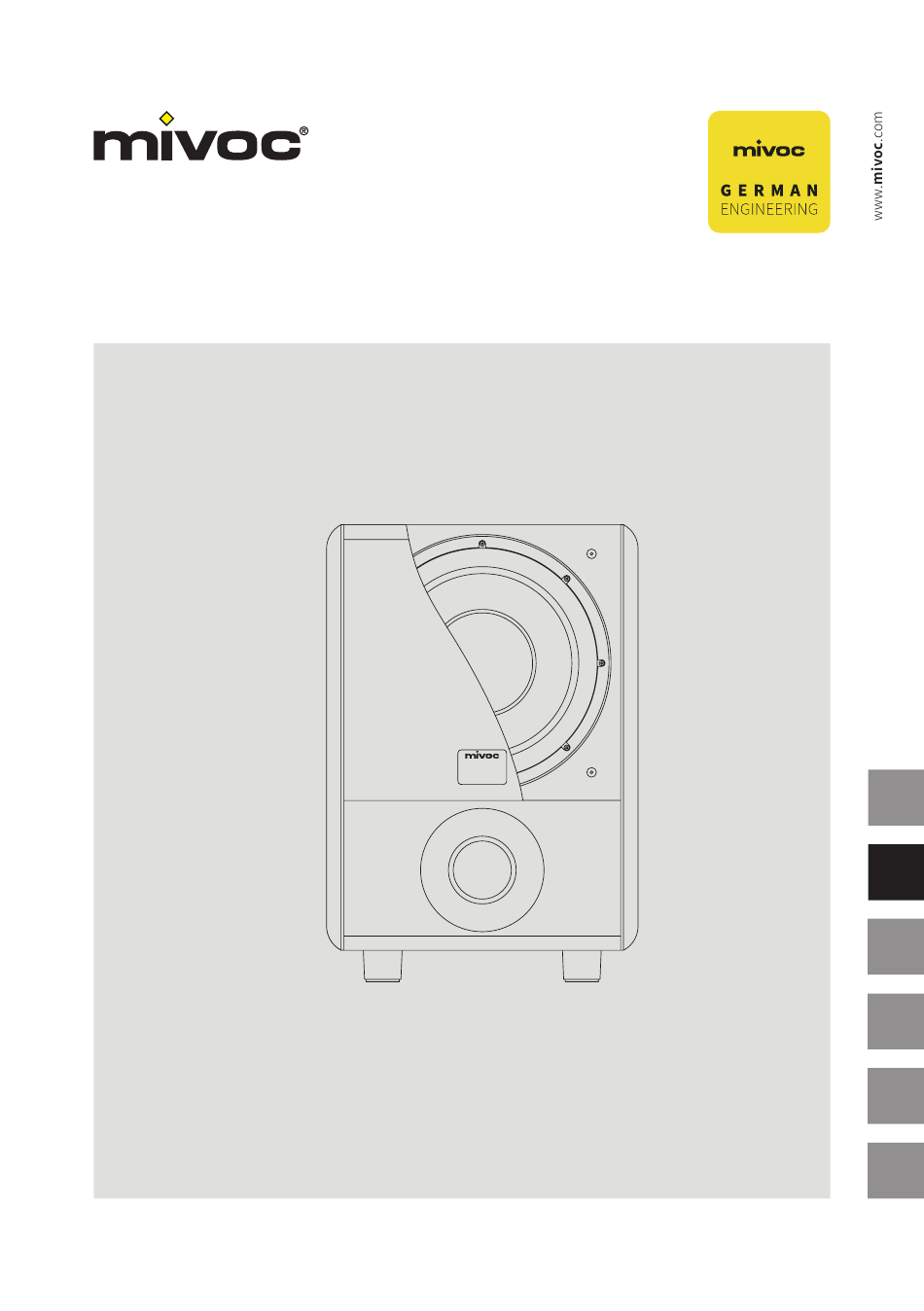

- Page 1 HIFI SUBWOOFER OPERATING MANUAL 中文...
- Page 3 - and we want to share it with you. We are delighted that you share our love of sound and have chosen this mivoc product. To ensure that you get the most out of your mivoc product, we have summarised everything you need to know in this operating manual.
- Page 4 PACKAGE CONTENTS Checking the packaging Unpacking and checking the contents MIVOC HYPE 10G2 Components Connection and settings terminal MIVOC HYPE 10G2 INSTALLATION Front panel Preparing the speaker cables Connection to the mains supply Audio signal connection MIVOC HYPE 10G2 INSTALLATION...
- Page 5 Incoming audio signals are processed, amplified and finally reproduced as an audible sound event. To ensure optimum and safe operation, only use your mivoc subwoofer as described in this manual. Use for purposes other than those intended or other than those described in this manual may result in personal injury or damage to property.
- Page 6 You will encounter a number of graphic symbols in this manual. These symbols indicate important infor- mation and helpful hints. This symbol indicates important operating and maintenance instructions that must be observed. This symbol indicates that there are important operating and safety instructions that you must observe and follow in order to minimise the risk of personal injury and damage to property.
- Page 7 Some mivoc products have small removable parts. Ensure that children do not have unsu- pervised access to mivoc products. Small parts pose a risk of swallowing and can cause in- jury or suffocation. Do not allow children to play with the product or its packaging. There is a risk of injury and suffocation.
- Page 8 Do not remove any housing components from your product. There are no parts inside that you can service yourself. For your own safety and that of third parties, do not modify your mivoc product, either in part or in whole, (by adding, modifying or removing components, etc.).
- Page 9 Do not use your subwoofer under such conditions, as this could result in damage (risk of injury, damage to health, fire, damage to the loud- speaker or connected devices, etc.). In such cases, contact your mivoc dealer or mivoc support immediately.
- Page 10 These precautionary measures include the following points, among others: Only connect your mivoc product to a proper mains socket (230 V~/50 Hz or 115V~/60 Hz) for the power supply. Ensure that the power cable is not crushed or damaged in any other way.
- Page 11 OBSERVE LOCAL, STATUTORY AND OFFICIAL RULES AND REGULATIONS REGARD- ING THE USE OF ELECTRICALLY POWERED DEVICES. FOLLOW ALL INSTRUCTIONS AND DIRECTIONS IN THIS OPERATING MANUAL. IF YOU HAVE ANY QUESTIONS OR QUERIES, PLEASE CONTACT YOUR MIVOC DEALER OR MIVOC SUPPORT. 中文...
- Page 12 Do not exert any pressure on the external technical components (e.g. membrane, connection terminal, etc.). Check the contents of the packaging for completeness and damage. If you notice any damage, contact your mivoc dealer or mivoc support immediately before using the prod- uct and clarify how to proceed.
- Page 13 MIVOC hYPE 10G2 The hYPE 10 is equipped with a 25 cm (10-inch) woofer and is designed as a bass reflex system. It is char- acterised by a frequency range of >20 Hz to 180 Hz. The internal amplifier delivers an output power of 300 watts (120 W rms).
- Page 14 CONNECTIONS AND SETTINGS Figure 2. hYPE 10G2 - Connection terminal. HIGH LEVEL connection terminal LINE IN connection terminal System settings Power supply The speaker terminals can accommodate cables with a cross-section of up to 2.5 or plug connectors with a diameter of up to 4 mm.
- Page 15 (receiver, hi-fi system, stereo amplifier, etc.) to the hYPE 10G2 subwoofer (High Level In) via its speak- er outputs. Connect your stereo speakers (e.g. mivoc HM5) to the speaker outputs (High Level Out). The music signal from the High Level input is forwarded to the High Level output.
- Page 16 LINE IN CONNECTION TERMINAL You can connect your main system (receiver, hi-fi system, stereo amplifier, etc.) via its subwoofer output or the pre-out connection (preamplifier output) to the Line In input of the hYPE 10G2. Figure 4. hYPE 10G2 - line in.
- Page 17 hYPE 10G2 SYSTEM SETTINGS Figure 5. hYPE 10G2 - System settings. PHASE (phase reversal switch): The phase reversal switch reverses the polarity. Use the setting (0° or 180°) at which the overall sound of your system sounds best to you. POWER (on/off switch) OFF: The amplifier of the hYPE 10G2 is switched off AUTO: The amplifier of the hYPE 10G2 switches on automatically when a music signal is present.
- Page 18 POWER SUPPLY The hYPE 10G2 is designed for operation on power grids with a) 220-240 V with 50 Hz b) 110-120 V with 60 Hz. ausgelegt. A device fuse is integrated to ensure safe operation. The appropriate fuse must be inserted de- pending on the mains supply with which the subwoofer is operated.
- Page 19 MIVOC hYPE 10G2 INSTALLATION FRONT PANEL The front panel of the hYPE 10G2 can be removed and replaced without tools. Fastening is realised using frame plugs and frame bushes integrated into the housing and cover. To remove the front panel, proceed as follows: Figure 7.
- Page 20 To attach the front panel, you can proceed as described below: Figure 8. hYPE 10G2 - Attaching the front panel. Ensure that the speaker is standing securely and firmly. Hold the front panel on the left and right- hand sides. Guide the panel evenly and slowly to the front of the speaker. Make sure that the corners of the panel line up with the corners of the front of the speaker.
- Page 21 PREPARING THE SPEAKER CABLES If you are integrating your subwoofer into your system via the HIGH LEVEL inputs and outputs, you must first prepare the speaker cables. Figure 9a. Stripping the cable. Figure 9b. Twisting the cable ends. Remove a piece of the cable insulation at each end Twist the strands of the cables as such that no indi- of each speaker cable to suit the depth of the am- vidual strands protrude and a uniform, sturdy cable...
- Page 22 CONNECTION TO THE MAINS SUPPLY Figure 10. hYPE 10G2 - Power cable connection. Use the end of the power cable fitted with the C7 plug. Insert the C7 plug into the C7 socket until the plug is fully seated in the socket. When plugging in, ensure that the plug is not tilted and the cable is not kinked.
- Page 23 AUDIO SIGNAL CONNECTION There are three ways to connect your hYPE 10G2 to your hi-fi system. Which option is right for you will de- pend on the connection options offered by your control device (amplifier, hi-fi system, AV receiver, soundbar, etc.).
- Page 24 Option 2: HIGH LEVEL IN/Parallel operation If your control unit does not have a subwoofer output (Sub-Out) or a preamplifier direct output (Pre-Out), you can use the HIGH LEVEL IN inputs of the hYPE 10G2 and the speaker outputs of the control unit. Connect your stereo speakers to the speaker outputs of your control unit, in parallel with the hYPE 10G2.
- Page 25 ❶ using a speaker cable. Use a second speaker cable to connect the same left speaker output of your con- ❸ trol unit to one of your stereo speakers (L). Make sure that you connect the connections labelled minus (-) to each other and the connections labelled plus (+) to each other. ❹...
- Page 26 Option 3: HIGH LEVEL IN/HIGH LEVEL OUT If your control unit does not have a subwoofer output (Sub-Out) or a preamplifier direct output (Pre-Out) and option 2 is not technically possible, you can use the HIGH LEVEL IN inputs and the HIGH LEVEL OUT outputs of the hYPE 10G2 as well as the speaker outputs of the control unit.
- Page 27 ❶ ❷ Connect the left speaker output of your control unit to the left HIGH LEVEL IN of the hYPE 10G2 ❸ using a speaker cable. Use a second speaker cable to connect the left HIGH LEVEL OUT of the hYPE ❹...
- Page 28 IMPORTANT INFORMATION Replacing the fuse. If the fuse blows as a protective function or when you make the adjustment to your power supply, you must replace the fuse. ONLY use the same type of fuse and observe the information on your hYPE 10G2. Follow the steps below to replace the fuse.
- Page 29 MIVOC hYPE 10G2 INSTALLATION In the following section you will find instructions on how to set up your hYPE 10G2 subwoofer for an optimal listening experience. DISTANCE TO LISTENING POSITION hYPE10G2 Listening position Figure 16. hYPE 10G2 - Installation. The best position for your subwoofer may vary depending on the room size and installation location. The position and type of your stereo speakers also have an influence on the setup.
- Page 30 CONFIGURING THE HYPE 10G2 Once you have placed the subwoofer in its intended position, you can configure the system settings. For the initial tuning, you can follow the list below step-by-step. If possible, ask someone for help. This will allow you to evaluate changes in the sound while your assistant applies the settings.
- Page 31 DISTANCE TO INTERFACES min. 0.1 m Figure 17. hYPE 10G2 - Minimum distance to interfaces. When positioning your hYPE 10G2, make sure that the distance between the rear of the speaker and neigh- bouring walls is not less than 10 cm. This will ensure that your subwoofer is working properly. You will get the best sound if you position the subwoofer so that it is 0.5 metres or more away from adjacent walls or larger objects with a large surface area, such as cabinets.
- Page 32 TECHNICAL DATA hYPE10G2 SPECIFICATIONS ELECTRO-ACOUSTIC DATA Frequency range 20 Hz - 180 Hz Adjustable crossover frequency 40 Hz - 180 Hz Output power 300 W (programme) /120 W (rms) System type 1-way with integrated amplifier Transducer 10″ (25 cm) subwoofer with polypropylene cone...
- Page 33 hYPE 10G2 DIMENSIONS Figure 18. hYPE 10G2 - Dimensions (mm). 中文...
- Page 34 LIMITATION OF LIABILITY mivoc grants a 2-year guarantee on mivoc products. The warranty period mivoc shall not be liable for personal injury or damage to property, or for begins on the date of purchase. The warranty applies to material or produc- claims arising from unsuitable, dangerous or improper use of the products.
- Page 35 中文...
- Page 36 HEAD OFFICE Neuenhofer Strasse 42-44 42657 Solingen, Germany +49 212 382 26-0 info@mivoc.com www.mivoc.com , All rights reserved. The technical data and functional product features are subject to change. Designed in Germany Photocopying, translating or any other form of reproduction of sections or of the entirety of the user manual is prohibited.
