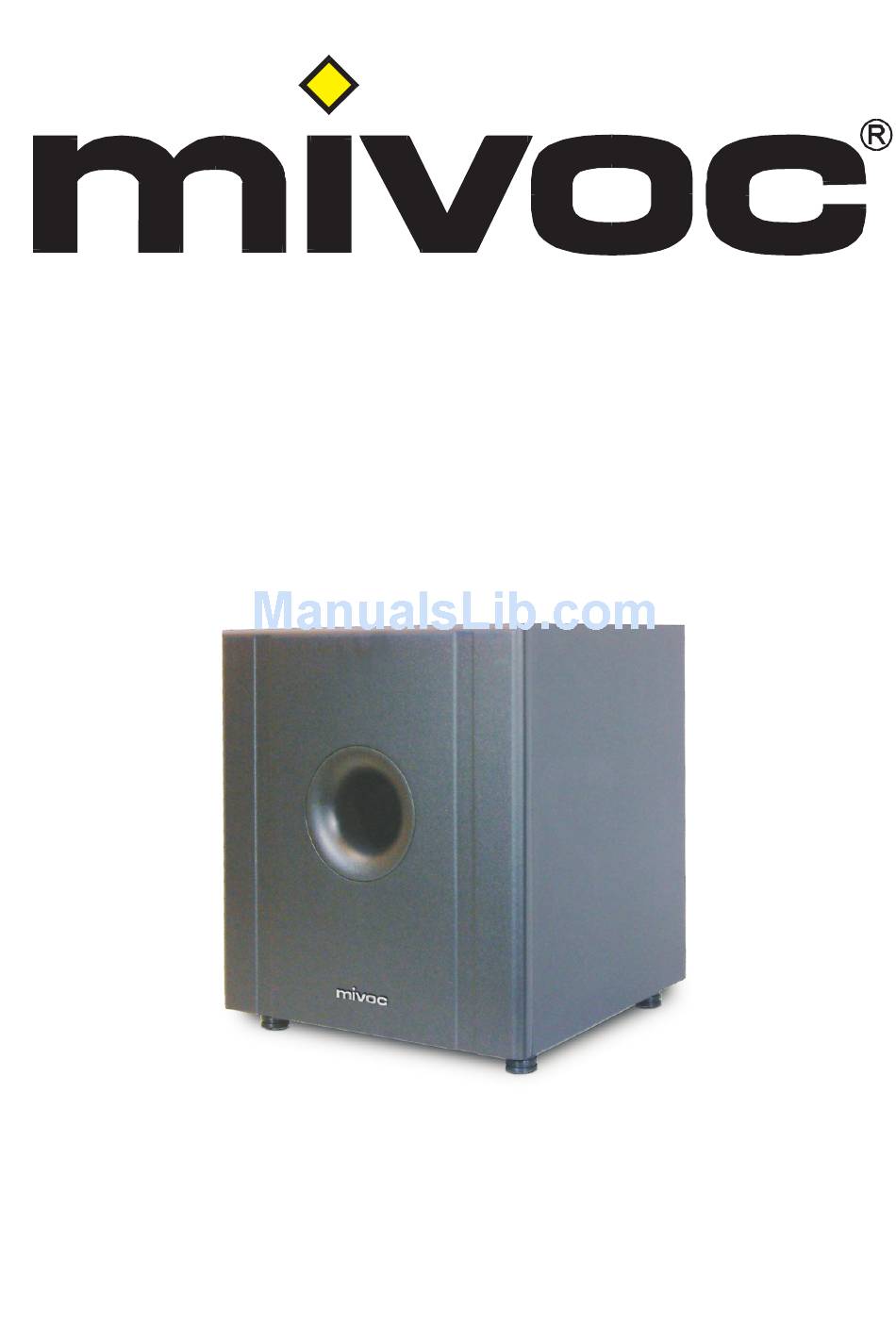

- Page 1 SW 1100 A Aktivsubwoofer / amplified subwoofer Bedienungsanleitung / owners manual...
- Page 2 Installation and first operation: The best position to install the SW 1100 A is in the middle between the satellites and a little bit behind them. The area of best location is shown in Pic. 1 . For the first installation the LEVEL control should be adjust to MIN. The LOW PASS FREQUENCY control should be adjust to 180 Hz, the PHASE switch should be turned to 0 deg.
- Page 3 Please do NOT open the cover or back. Servicing of the amplifier by qualified personel ONLY ! be turned to 0 deg. After connecting the SW 1100 A, the main amplifier can be turned on. Now you can turn the POWER switch to ON .Then turn the LEVEL control clockwise to the prefered bass volume.
- Page 4 Technische Daten Verstärker SW 1100 A Technical data amplifier SW 1100 A Verstärker Modul mit akt. Frequenzweiche Amplifier module with integrated act. crossover Stromversorgung: 230 V Wechselstrom 50 Hz Supplying voltage : 230 V AC 50 Hz Sicherung: T 0,8 A Fuse: T 0.8 A...
