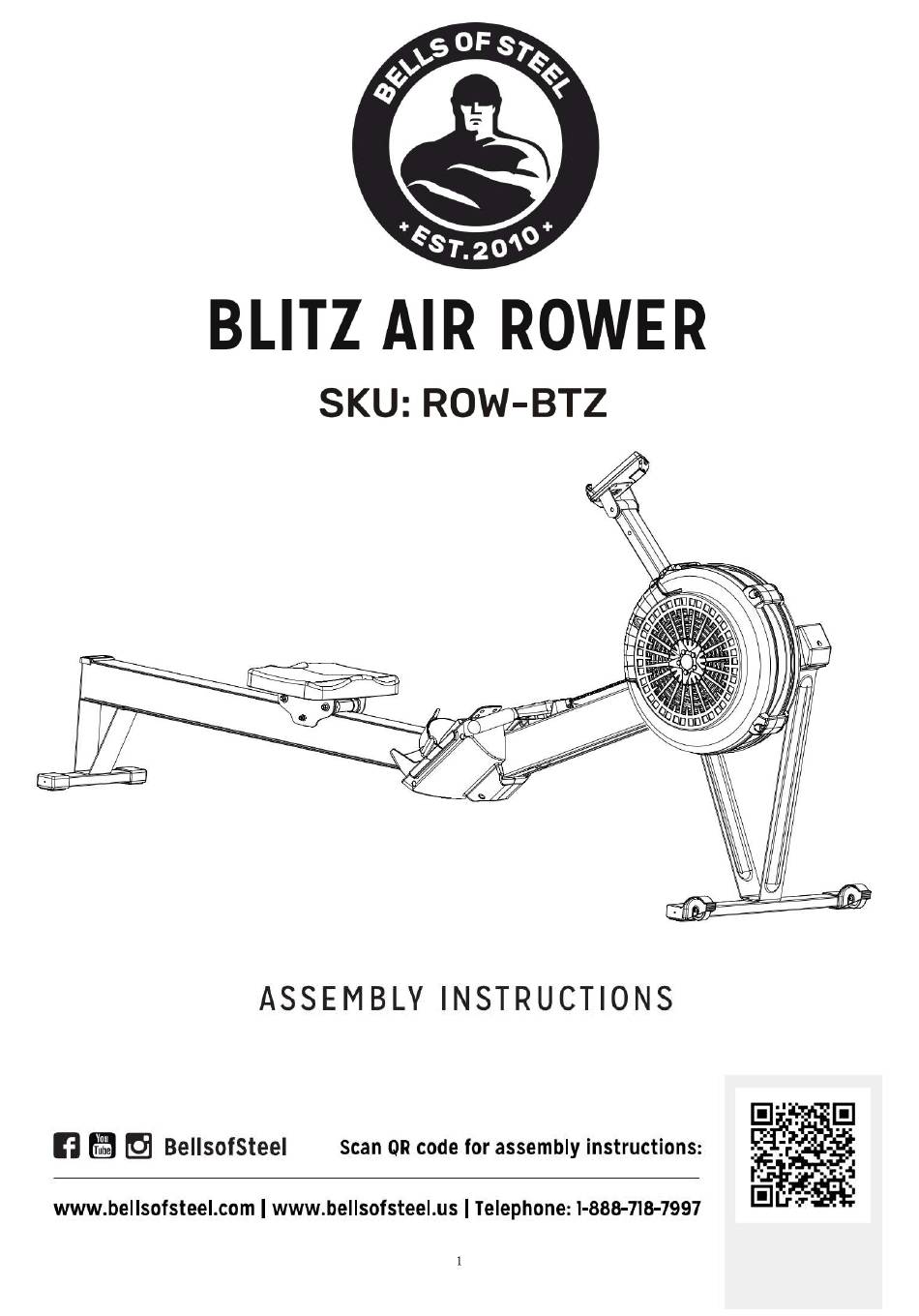

Bells Of Steel BLITZ ROW-BTZ Assembly Instructions Manual

Air rower
Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the BLITZ ROW-BTZ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bells Of Steel BLITZ ROW-BTZ

Summary of Contents for Bells Of Steel BLITZ ROW-BTZ

  • Page 20 Operation Instruction 1. Power ON： When power on ( or press RESET for 3sec.)，the BUZZER will beep 2sec.，then LCD will full display 2sec. and enter into the standby mode. 2. Standby Mode： A. After power on, the console enter into standby mode，MANUAL(“*” “8”display ), INTERVAL( “*” “8”display), TARGET(“*”...
  • Page 21 Picture 1 Picture 2 Picture 3 Picture 4 Picture 5 7. INTERVAL： In standby mode, press MODE KEY，and press SET KEY to select INTERVAL Function(Picture 6).Pressing MODE KEY to enter into INTERVAL Function selection. (1) INTERVAL 10/20 A. Pressing SET KEY to select 10/20(Picture 7), press MODE KEY to start 10/20 function,”READY” flashing and TIME window displays a 3-second countdown(Picture 8).
  • Page 22 Picture 9 Picture 10 Picture 11 (2) INTERVAL 20/10 A. Pressing SET KEY to select 20/10(Picture 12),press MODE KEY to start 20/10 function,”READY” flashing and TIME window displays a 3-second countdown and the buzzer sounds 0.5s per seconds. B. After READY 3s, LCD displays the “WORK 01/08”(“*” “8”display)，TIME begins to count down 20s(Picture 13).
  • Page 23 Picture 15 Picture 16 Picture 17 Picture 18 Picture 19 Picture 20 E. When LCD displays “READY”flashes(“*” “8”display), TIME will count down 3 sec. in TIME window, the buzzer will beep 0.5 sec. in every second . F. After READY 3 sec.，LCD displays“WORK 01/XX”(“*” “8”display)，TIME begins to count down according to the setting time.
  • Page 24 Picture 21 Picture 22 Picture 23 Picture 24 Picture25 (2) TARGET DISTANCE： A. Toggle the TARGET DISTANCE function and LCD displays” TARGET “keeps flashing(“*” “8”display).DISTANCE window displays DISTANCE flashing(Picture 26) and press MODE KEY to start the DISTANCE setting function. B.
  • Page 25 (3) TARGET CALORIES： A. Toggle the TARGET CALORIE function and LCD displays” TARGET “keeps flashing(“*” “8”display).CALORIES window displays CALORIE flashing(Picture 30) and press MODE KEY to start the CALORIES setting function. B. When LCD displays” SET “keeps flashing(“*” “8”display)，0 flashes in CALORIES window (picture 31), press SET KEY to set target CALORIES(the setting range is 0~9990) which can be set circularly.
  • Page 26 Picture 37 (5) TARGET PULSE： A. Toggle the TARGET PULSE function and LCD displays” TARGET “keeps flashing(“*” “8”display).PULSE window displays PULSE flashing(Picture 38) and press MODE KEY to start the PULSE setting function. B. When LCD displays” SET “keeps flashing(“*” “8”display)(Picture 39)，100 flashes in PULSE window, press SET KEY to set target PULSE(the setting range is 30~230) which can be set circularly.
  • Page 27 Special Mode A、Switch KM/ ML 1.Pressing MODE+SET for 2 secs to enter into switch KM/ML mode. 2.LCD displays” CLIENT ID “and program version(“*” “8”display), TIME window shows console model name (Picture 42) 3.In the switch KM/ML mode, press SET to adjust the KM/ML, press MODE to confirm the setting, and RESET is invalid KEY.
  • Page 28 VR Correction Mode： 1. During the standby mode,press MODE+RESET KEY for 3sec. to enter into VR correction mode. 2. TIME window will display”L”，DISTANCE window displays the current the AD value of VR(Picture 44).Adjust Damper(Picture 45) to the first level and press ENTER KEY to confirm. Picture 44 Picture 45 Picture 46...
  • Page 29 1. Kinomap APP connection steps 1-1 Open the Kinomap + App and enter the home page. Click the button in the lower right corner to add devices. Click equipment management, then click the "+" to start adding equipment.
  • Page 30 1-3 Click ”Rowing” graphics, then enter a variety of brand connection screen, select FTMS/iConsole. 1-4 Select Rowing machine, then Bluetooth Device.
  • Page 31 1-5 Press the Home button to return to the Home page after adding the device. 1-6 To select the training video, you must select the type of Rowing and press the button to enter the training screen.
  • Page 32 1-7 Start training *Pressing the pause button at the top of the screen to stop. 1-8 Enter the pause screen and you can choose to continue or exit to end the training。...
