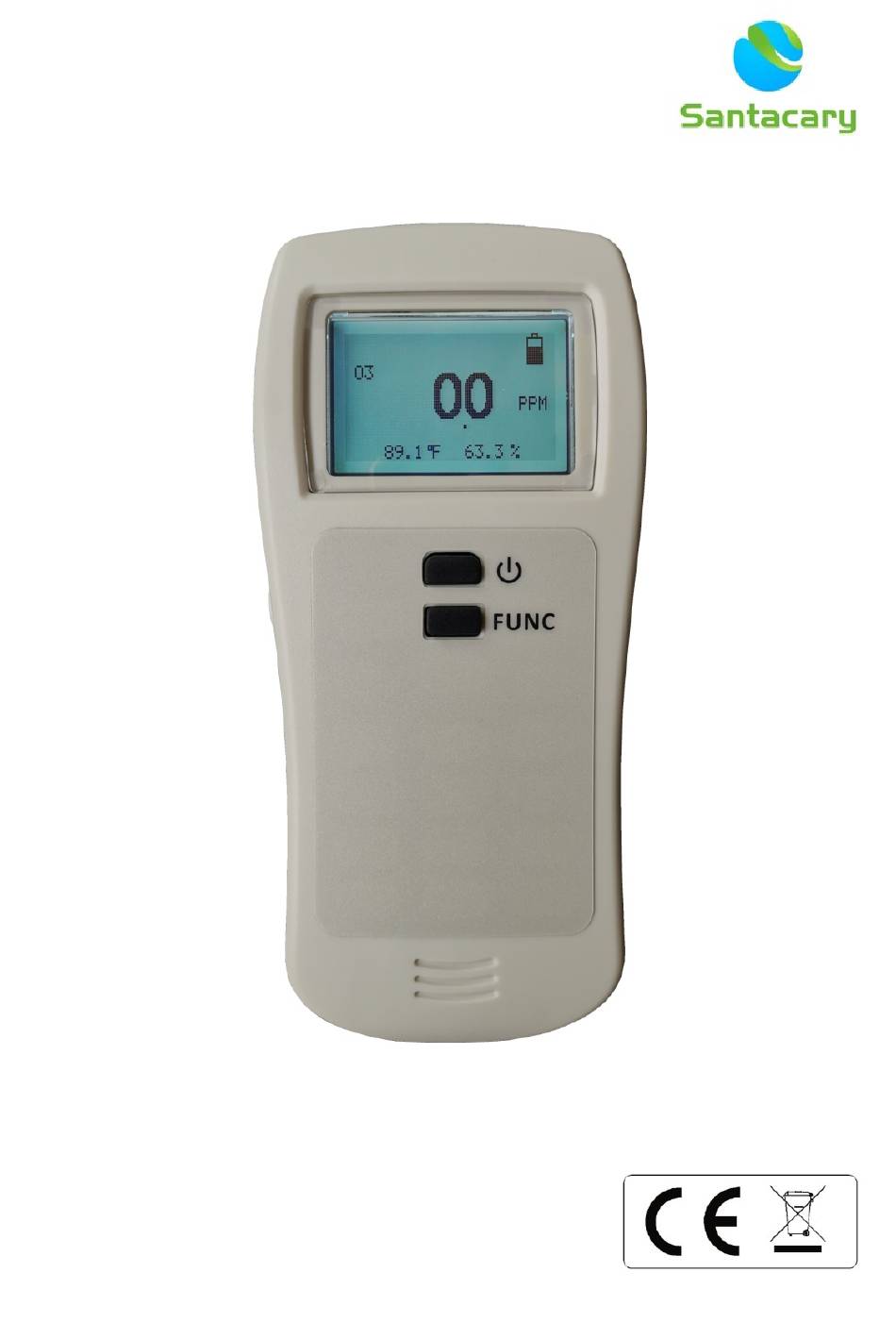

- Page 1 User Manual R1.1 Santacary Technology Co., Ltd. XAR-OZ Ozone Gas Detector...
- Page 2 ) in the workplace. It has been designed to notify of the presence of ozone ) gas. XAR-OZ portable gas detector has a wide range of applications in industrial, business, home or R&D and other fields. It is useful for detection of ozone residue after disinfection.
- Page 3 3. Function button 4. Battery compartment cover 5. Air sampling ports DISPLAYS Normal Display...
- Page 4 (PPM) 5. Air Temperature 6. % Relative Humidity Trend Chart Display XAR-OZ has a data log function that provides up to 2 hours history of concentration. The trend chart displays the past readings for O . The time per division (indicates the chart's time per unit division) is 10 min / div.
- Page 5 2. Time scale (farther to the right, longer time in the past) 3. Measurement name (O 4. Maximum value on the chart of O concentration 5. Minimum value on the chart of O concentration At the bottom of the chart, there are two numerical indicators: Max and Min.
- Page 6 OPERATING INSTRUCTIONS 1. Turn on detector When the detector is turned off, press Power button to turn on the unit. When the unit is first turned on, it performs 10 seconds countdown for detector initial warm up, then enters normal display with current O concentration (PPM), temperature (°C or °F), and humidity (%RH) readings displayed.
- Page 7 “Fresh Air Calibration 0 PPM Ozone”, “Ozone Span Calibration 10 PPM”, “Factory Reset” and “Exit” as described in below table. Calibration Menu Menu Items Functional Description Fresh Air Calibration 0 The XAR-OZ will perform an automatic...
- Page 8 PPM Ozone fresh air adjustment (to zero the sensor). If the fresh air adjustment is successful, the unit will proceed to Normal Display Ozone Span Calibration 10 To implement the span calibration with 10 PPM Ozone gas. If the span calibration is successful, the unit will proceed to Normal Display Factory Reset...
- Page 9 : 10.0 PPM) and Low Alarm (O : 5.0 PPM). These set points are factory set and cannot be changed. XAR-OZ is equipped with audio alarms to alert you when the ambient gas concentration exceeds one of the two alarm set points. When O value exceeds the defined high alarm set point (10.0 PPM),...
- Page 10 MATERIALS SUPPLIED XAR-OZ Ozone Gas Detector Carry case English User Manual SPECIFICATIONS Sensor Specification: Sensor Electrochemical sensor Sample Method Diffusion Measurement Range 0~20 PPM Resolution 0.1 PPM Repeatability <±5% of signal Accuracy ±5%FS Warm-up time <3 mins Response time <...
- Page 11 3. Do not immerse the detector in liquids. 4. Keep away XAR-OZ from dust and particles and never touch exhaust or concentrated vapors, harsh chemicals or extremely high concentration levels, such as corrosive gases, organic gases. They may poison the sensor.
- Page 12 WARRANTY The XAR-OZ is warranted to be free from defects in material and workmanship for a period of one year from the date of purchase. This warranty covers normal operation and does not cover misuse, abuse,...
- Page 13 Proof of purchase is required for warranty. Warranty is void if the detector has been opened. CONTACT US Santacary Technology Co., Ltd. Zhaobei Building B, the 7th Industrial Road 75#, Shekou, Shenzhen, 518067, Guangdong, China Email: info@santacary.com...
- Page 16 rights reserved including right reproduction in whole or in part in any form.
