- Page 1 User Manual R1.1 Santacary Technology Co., Ltd. XAR-OZL Low-level Ozone Gas Detector...
- Page 2 O gas. XAR-OZL has a wide range of applications in industrial, business, home or R&D and other fields. It is 10x more sensitive than a regular ozone gas meter as it employs a high-quality ozone sensor.

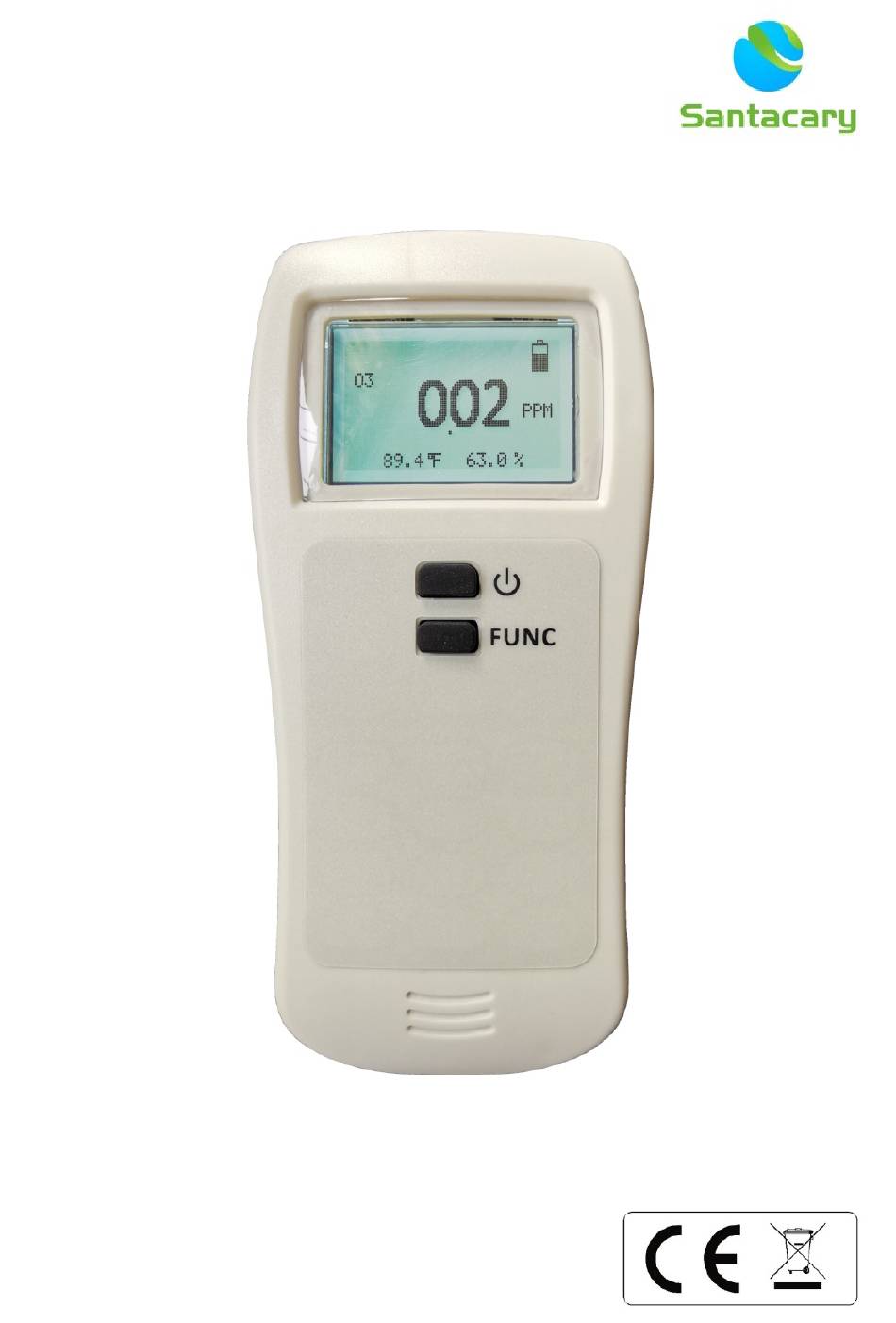

- Page 3 XAR-OZL should be used in a strong convection air environment. UNIT DESCRIPTION Device 1. Liquid crystal display (LCD) 2. Power button 3. Function button 4. Battery compartment cover 5. Air sampling ports...
- Page 4 (PPM) 5. Air Temperature 6. % Relative Humidity Trend Chart Display XAR-OZL has a data log function that provides up to 2 hours history of concentration. The trend chart displays the past readings for O . The time per division (indicates the chart's time per unit division) is 10 min / div.
- Page 5 is the example of Trend Chart Display. 1. Vertical bar of O (The higher the bar, the greater the value) 2. Time scale (farther to the right, longer time in the past) 3. Measurement name (O 4. Maximum value on the chart of O concentration 5.
- Page 6 3. O concentration (PPM) OPERATING INSTRUCTIONS 1. Turn on detector When the detector is turned off, press Power button to turn on the unit. When the unit is first turned on, it performs 10 seconds countdown for detector initial warm up, then enters normal display with current O concentration (PPM), temperature (°C or °F), and humidity (%RH) readings displayed.
- Page 7 : 5.00 PPM) and Low Alarm (O : 1.00 PPM). These set points are factory set and cannot be changed. XAR-OZL is equipped with audio alarms to alert you when the ambient gas concentration exceeds one of the two alarm set points. When O value exceeds the defined high alarm set point (5.00 PPM),...
- Page 8 Factory Alarm Set points High 1.00 PPM 5.00 PPM MATERIALS SUPPLIED XAR-OZL Low-level Ozone Gas Detector Carry case English User Manual SPECIFICATIONS Sensor Specification: Sensor Electrochemical sensor (with temperature compensation) Sample Method Diffusion Measurement Range 0~10 PPM Resolution 0.01 PPM...
- Page 9 Warm-up time <3 mins Response time < 90 seconds (diffusion) Recovery time < 90 seconds (diffusion) Service life 2 years (in air) Temperature Specification Temperature Range -10.0~60.0°C (14~140°F) display Display Resolution 0.1°C (0.1°F) Display Options °C/°F switchable Accuracy ±0.5°C (±0.9°F) Response Time 5~30 seconds (device must equilibrate with environment)
- Page 10 3. Do not immerse the detector in liquids. 4. Keep away XAR-OZL from dust and particles and never touch exhaust or concentrated vapors, harsh chemicals or extremely high concentration levels, such as corrosive gases, organic gases. They may poison the sensor.
- Page 11 WARRANTY The XAR-OZL is warranted to be free from defects in material and workmanship for a period of one year from the date of purchase. This warranty covers normal operation and does not cover misuse, abuse, alteration, neglect, improper maintenance.
- Page 12 rights reserved including right reproduction in whole or in part in any form.
