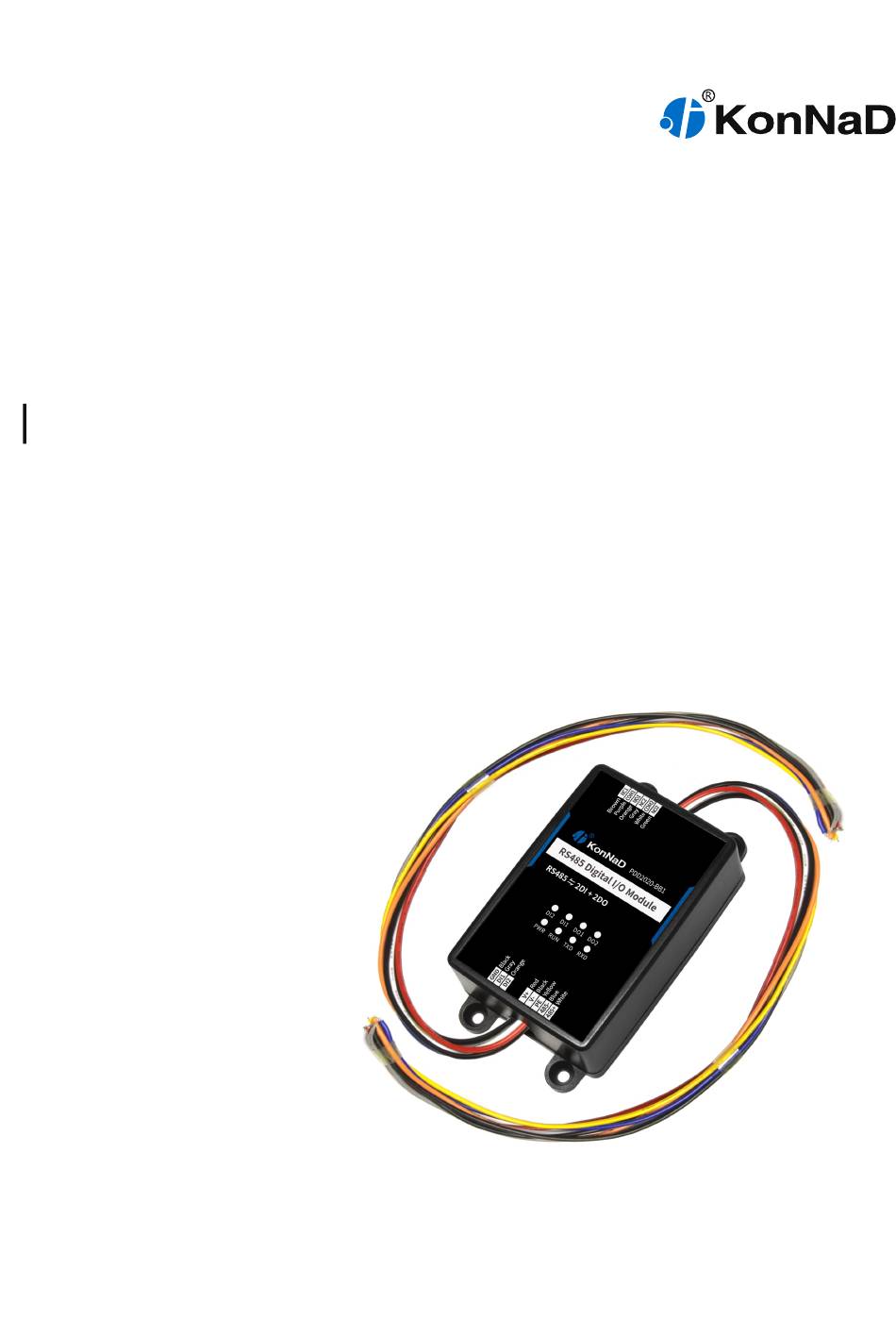

- Page 1 Last updated: 2019-12-13 C2000-A1-PDD2020-BB1 User Manual RS485 ⇋ 2DI + 2DO Remote I/O Module — RS485 Digital I/O Module SinoCon Co., Ltd.
- Page 2 C2000-A1-PDD2020-BB1 User Manual Catalog Catalog 1. Hardware Description 1.1. Specifications 1.2. Apprearance 1.3. Indicators 1.4. Port Description 1.5. Product Dimensions 1.6. Installation Method 2. Package Contents 3. Warranty Policy SinoCon Co., Ltd. www.sinoconsys.com 2 / 12...
- Page 3 Copyright Notice ©2000 - 2019 SinoCon Co., Ltd. All Rights Reserved. Trademarks The KonNaD logo is a registered trademark of SinoCon Co., Ltd. All other trademarks or registered marks in this manual belong to their respective manufacturers. Disclaimer This document only provides information about KonNaD products. No license to any intellectual property rights is granted by this document, including any intellectual property licenses, expressed or implied, or by any means.
- Page 4 C2000-A1-PDD2020-BB1 User Manual SinoCon Co., Ltd. www.sinoconsys.com 4 / 12...
- Page 5 Lead wire output Industrial Protocol Standard Modbus RTU Protocol Power Power Connector Terminal block Input Voltage 9~27VDC Current 80mA @ 12VDC Physical Characteristics Dimensions 51.8*76*25.8mm Installation Wall Environmental Limits Operating Temperature -40℃ ~ 85℃ SinoCon Co., Ltd. www.sinoconsys.com 5 / 12...
- Page 6 C2000-A1-PDD2020-BB1 User Manual Classification Parameter Specification Storage Temperature -60℃ ~ 125℃ Ambient Relative Humidity 5% ~ 95% RH, non-condensing SinoCon Co., Ltd. www.sinoconsys.com 6 / 12...
- Page 7 C2000-A1-PDD2020-BB1 User Manual 1.2. Apprearance SinoCon Co., Ltd. www.sinoconsys.com 7 / 12...
- Page 8 Steady on：Normal power supply Off：No power or abnormal power supply, please check if the voltage range is 9~27VDC Running indicator Steady on：Device exception Flashing：Flashes every 1 second when the device is ready Off：Device exception SinoCon Co., Ltd. www.sinoconsys.com 8 / 12...
- Page 9 Upstream Serial 485+、 RS485+, RS485- (upstream) RVSP 2*0.5 Port 485- Power Input V+、V- Power supply input positive, power supply input RVV 2*1.0 negative Used for reliable grounding of the device, surge RVV 2*0.5 protection SinoCon Co., Ltd. www.sinoconsys.com 9 / 12...
- Page 10 C2000-A1-PDD2020-BB1 User Manual 1.5. Product Dimensions unit: mm（inch） 1.6. Installation Method SinoCon Co., Ltd. www.sinoconsys.com 10 / 12...
- Page 11 C2000-A1-PDD2020-BB1 User Manual 2. Package Contents Contents Device * 1 Installation guide card * 1 SinoCon Co., Ltd. www.sinoconsys.com 11 / 12...
- Page 12 8. Our company's responsibility for the manufacture, sale and use of the products shall not exceed the original cost of the products. The company does not assume any joint responsibility. 9. The right to interpret this clause belongs to the company. SinoCon Co., Ltd. www.sinoconsys.com 12 / 12...
