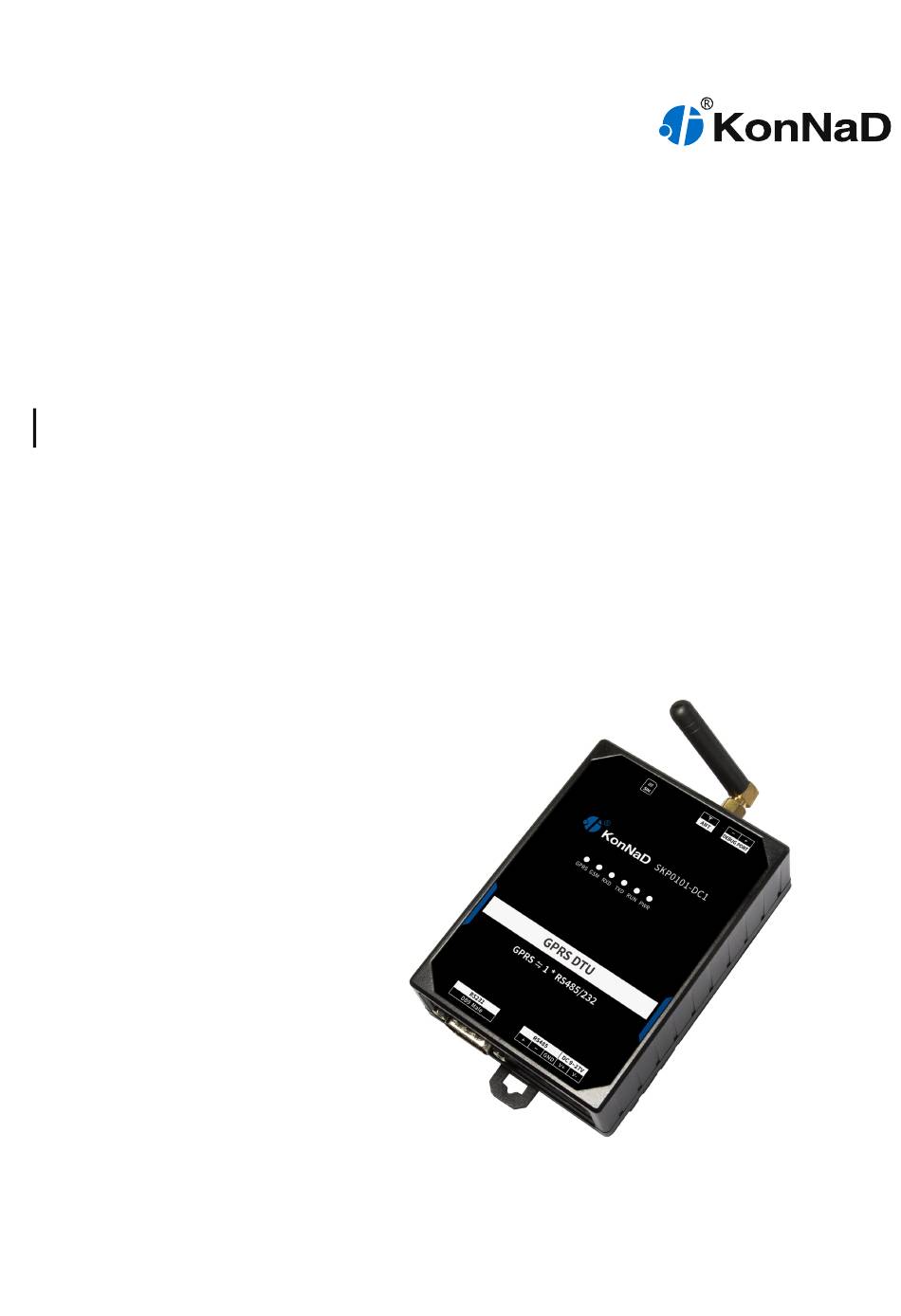

- Page 1 Last updated: 2020-11-26 C2000-B2-SKP0101-DC1 User Manual GPRS ⇋ 1 * RS485/232 Serial-to-Ethernet Device — GPRS DTU SinoCon Co., Ltd.
-
Page 2: Table Of Contents
C2000-B2-SKP0101-DC1 User Manual Catalog Catalog 1. Hardware Description 1.1. Specifications 1.2. Apprearance 1.3. Indicators 1.4. Port Description 1.5. Product Dimensions 1.6. Installation Method 2. Package Contents 3. Warranty Policy SinoCon Co., Ltd. www.sinoconsys.com 2 / 11... - Page 3 Copyright Notice ©2000 - 2020 SinoCon Co., Ltd. All Rights Reserved. Trademarks The KonNaD logo is a registered trademark of SinoCon Co., Ltd. All other trademarks or registered marks in this manual belong to their respective manufacturers. Disclaimer This document only provides information about KonNaD products. No license to any intellectual property rights is granted by this document, including any intellectual property licenses, expressed or implied, or by any means.
- Page 4 C2000-B2-SKP0101-DC1 User Manual SinoCon Co., Ltd. www.sinoconsys.com 4 / 11...
-
Page 5: Hardware Description
120mA @ 12VDC Physical Dimensions 75*105*30mm + 48*17mm Characteristics Installation Din-rail or wall Environmental Operating -40℃ ~ 85℃ Limits Temperature Storage -60℃ ~ 125℃ Temperature Ambient Relative 5% ~ 95% RH, non-condensing Humidity SinoCon Co., Ltd. www.sinoconsys.com 5 / 11... -
Page 6: Apprearance
C2000-B2-SKP0101-DC1 User Manual 1.2. Apprearance SinoCon Co., Ltd. www.sinoconsys.com 6 / 11... -
Page 7: Indicators
Off：No GSM network, check whether the SIM card is indicator plugged in or normal GPRS GPRS network Flashing：GPRS network in use status Off：No GPRS network, check if there is a signal indicator nearby SinoCon Co., Ltd. www.sinoconsys.com 7 / 11... -
Page 8: Port Description
RS485 debug port positive, RS485 debug port RVSP 2*0.5 negative Downstream RS232 RS232 DB9 Male (downward) Serial Port +、-、 RS485+, RS485-, GND (downward) RVSP 2*0.5 Power Input V+、V- Power supply input positive, power supply RVV 2*1.0 input negative SinoCon Co., Ltd. www.sinoconsys.com 8 / 11... -
Page 9: Product Dimensions
C2000-B2-SKP0101-DC1 User Manual 1.5. Product Dimensions unit: mm（inch） 1.6. Installation Method SinoCon Co., Ltd. www.sinoconsys.com 9 / 11... - Page 10 C2000-B2-SKP0101-DC1 User Manual 2. Package Contents Contents Device (contain mounting kit) * 1 Terminal block * 1 set Installation guide card * 1 SinoCon Co., Ltd. www.sinoconsys.com 10 / 11...
-
Page 11: Warranty Policy
8. Our company's responsibility for the manufacture, sale and use of the products shall not exceed the original cost of the products. The company does not assume any joint responsibility. 9. The right to interpret this clause belongs to the company. SinoCon Co., Ltd. www.sinoconsys.com 11 / 11...
