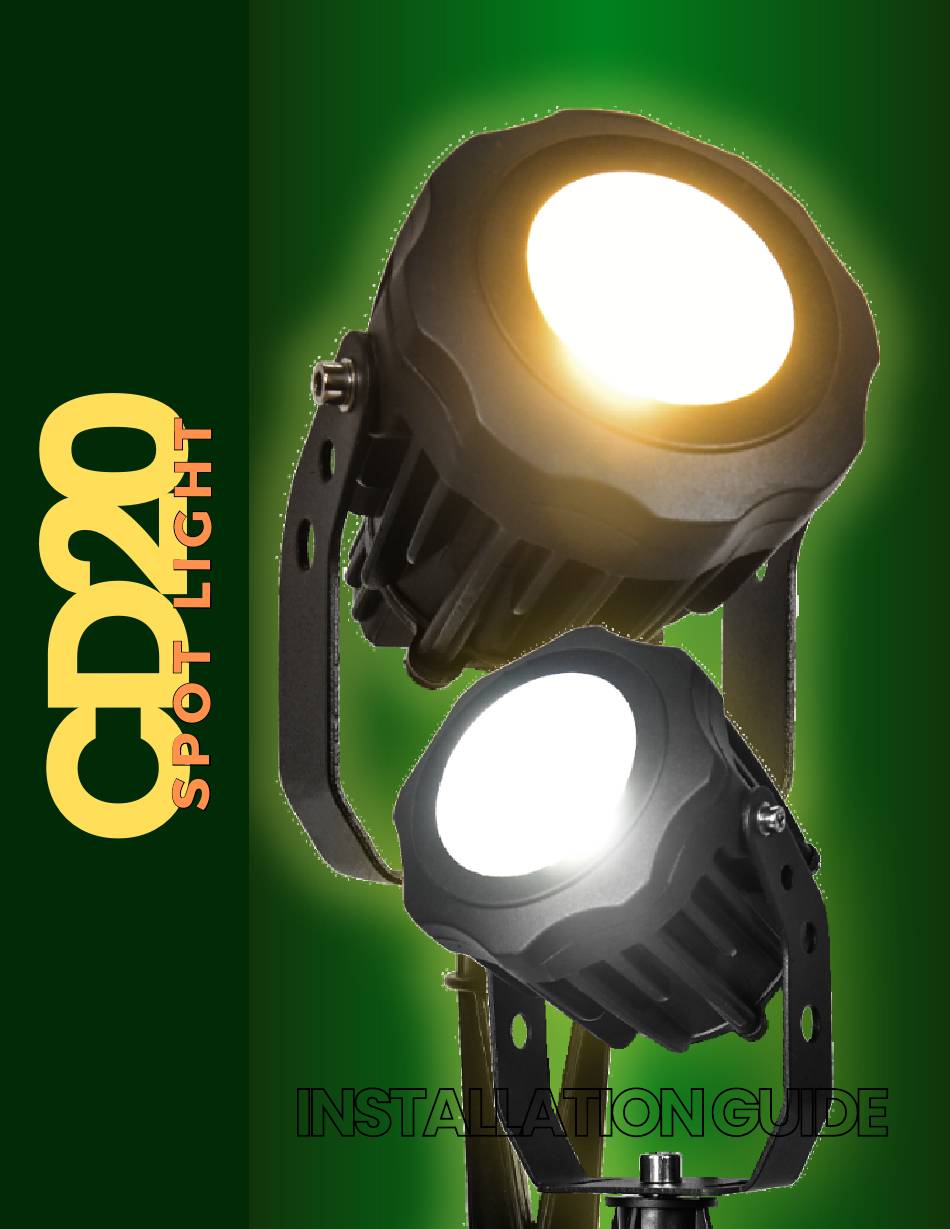

- Page 1 INSTALLATION GUIDE INSTALLATION GUIDE A B B A L I G H T I N G U S A...
- Page 2 AVAILABLE IN: 3000K 5000K 24° HEAVY DUTY SPIKE INCLUDED BEAM ANGLE A B B A L I G H T I N G U S A...
- Page 3 A B B A L I G H T I N G U S A...
- Page 4 LIGHTING DIAGRAM This image illustrates light and color properties: CIE 1931 Chromaticity Diagram (Left): Shows all visible colors, mapping how colors mix. The boundary represents pure colors, while the center is white light. Spectral Power Distribution (Right): Displays the intensity of a light source across visible wavelengths, indicating its color composition.
- Page 5 Thank you for choosing our high-quality product. To ensure the best possible experience, please take a moment to carefully read and follow all instructions before assembly, installation, and use. Doing so will not only guarantee proper function and safety but also help you maximize the full potential of this exceptional product.
- Page 6 WARNING TO REDUCE THE RISK OF FIRE OR INJURY TO PERSONS: Please exercise caution when using the lamp, as it tends to HEAT up rapidly. We recommend taking necessary safety measures to ensure optimal usage. For your safety, please refrain from touching the HOT lens, guard, or enclosure. We recommend waiting for the product to cool down before handling it.
- Page 7 TOOLS & MATERIALS NEEDED Tools: Shovel or trowel Wire stripper (if hardwired) Screwdriver Tape measure Materials: CD20 Spot Light Ground stake (included) Electrical connectors (for hardwiring) Low-voltage transformer (for low-voltage systems) WN12 Wire nuts (Sold Separately) (800) 360-2960 (800) 360-2960 ABBALightingUSA@gmail.com...
- Page 8 INSTALLATION GUIDE FOR CD20 INSTALLATION GUIDE FOR CD20 STEP-BY-STEP INSTALLATION INSTRUCTIONS Step 1: Plan Your Layout Determine Placement: Choose the path or area where the lights will be installed. Measure the distance between lights to ensure even illumination. A typical spacing is 6–10 feet apart, depending on the desired light spread.
- Page 9 INSTALLATION GUIDE FOR CD20 Step 4: Attach the Spot Light Mount the Fixture: Once the wiring is complete, securely attach the CD20 Spot light to the ground stake. Secure the Fixture: Ensure the fixture is stable and upright. Adjust the positioning as needed before tightening the fixture in place.
- Page 10 INSTALLATION GUIDE FOR CD20 INSTALLATION GUIDE FOR CD20 We strongly recommend that the main cable from the transformer be buried underground for safety reasons. Additionally, please be sure to avoid exceeding the maximum wattage on the fixture(s) to prevent any damage or hazards...
- Page 11 Ensure the mounting surface is capable of supporting the weight of both the bracket and the lighting fixture. ADDITIONAL RESOURCES For a detailed video tutorial on how to install the CD20, visit our YouTube channel and search for "CD20" Please visit our website for more of our products.
- Page 12 www.ABBALightingUSA.com...
