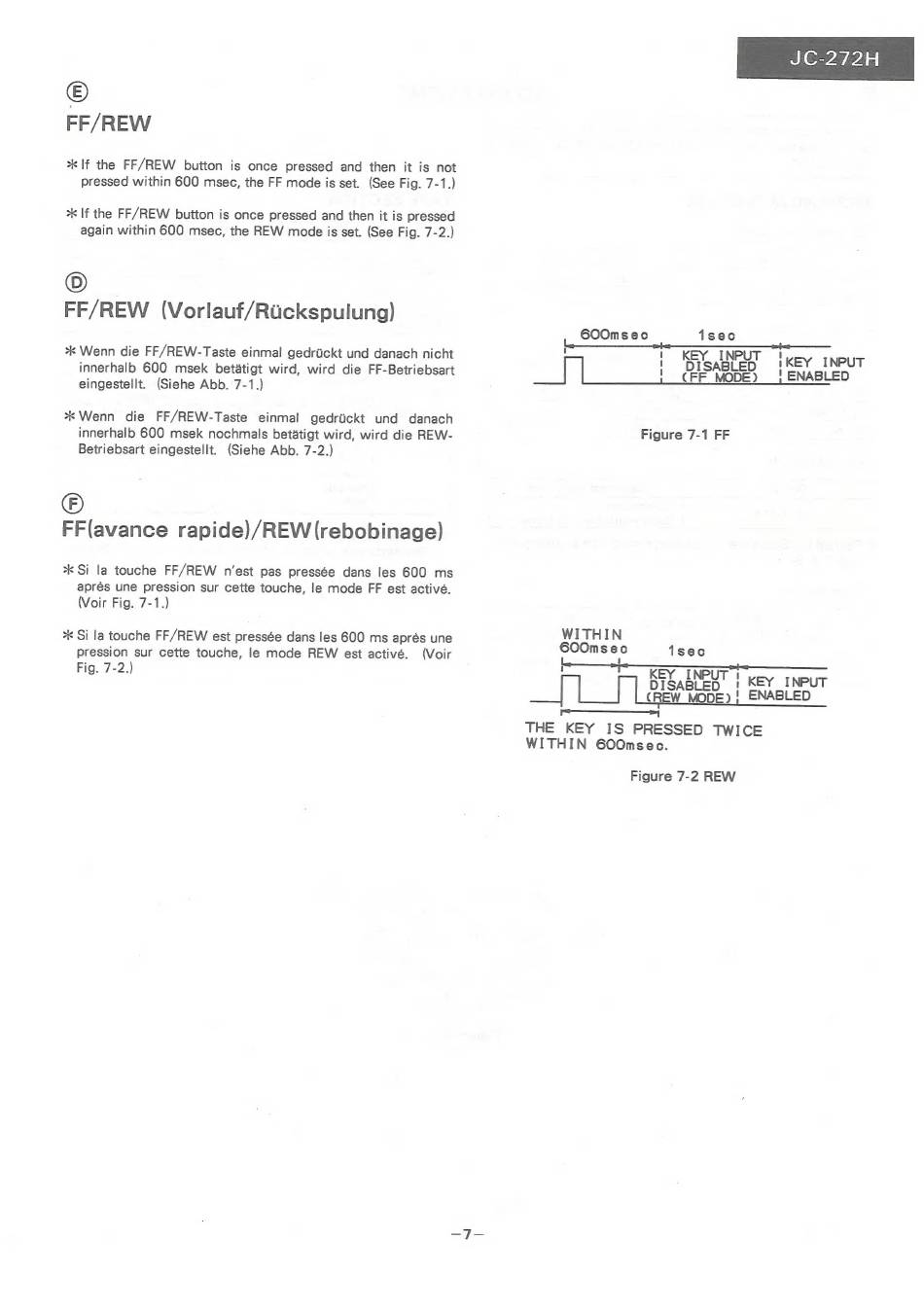

Sharp JC-272H Service Manual page 7

©
FF/REW
*k If the FF/REW button is once pressed and then it is not
pressed within 600 msec, the FF mode is set. (See Fig. 7-1.)
2k If the FF/REW button is once pressed and then it is pressed
again within 600 msec, the REW mode is set. (See Fig. 7-2.)
©
FF/REW (Vorlauf/Rickspulung)
*k Wenn die FF/REW-Taste einmal gedriickt und danach nicht
innerhalb 600 msek bet&tigt wird, wird die FF-Betriebsart
eingestellt. (Siehe Abb. 7-1.)
©
FF(avance rapide)/REW (rebobinage)
> Si la touche FF/REW est pressée dans les 600 ms aprés une
pression sur cette touche, le mode REW est activé. (Voir
Fig. 7-2.)
JC-272H
600msec
ee ee
1 KEN ARNAUT KEY INPUT
i (FF MODE) | ENABLED
Figure 7-1 FF
isec
WITHIN
600ms ec
isec
Sa ee
KEY INPUT 1
1 KEY INPUT
[L_I Leis, | Skolt
|
THE KEY
IS
PRESSED
TWICE
WITHIN 600msec.
Figure 7-2 REW
