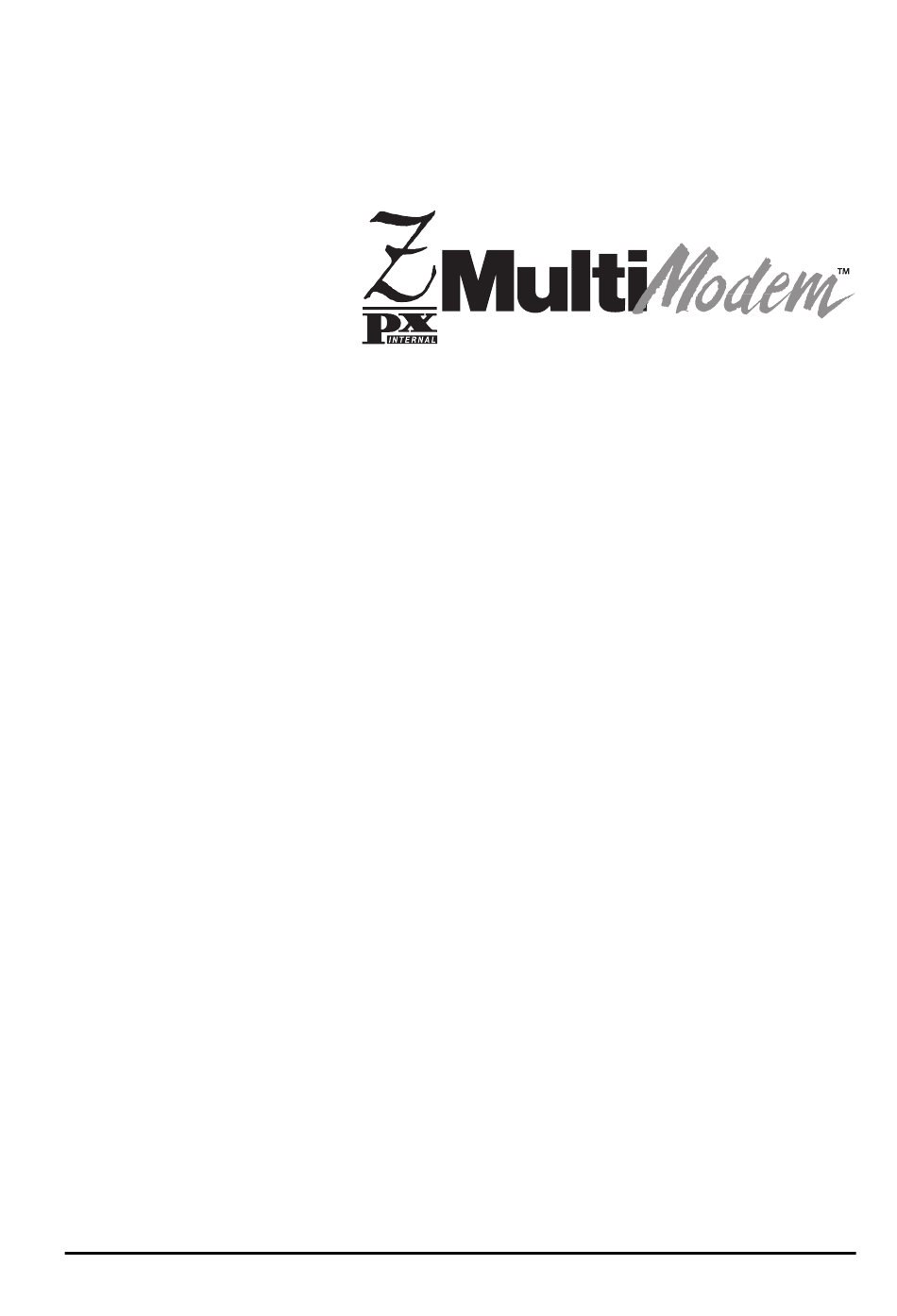

  • Page 1 Model MT5634ZPX-PCI Internal Data /Fax Modem Owner’s Manual Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 2 Owner’s Manual MT5634ZPX -PCI 82092100, Revision A Record of Revisions Revision Description Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 3 Contents Chapter 1—Introduction and Description Chapter 2—Installation Chapter 3—AT Commands, S-Registers, and Result Codes Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 4 Chapter 4—Troubleshooting Chapter 5—Warranty, Service, and Tech Support/BBS Appendix Index Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 5 Chapter 1—Introduction and Description Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 6 Owner’s Manual ongratulations ™ MT5634ZPX-PCI Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 7 1 Introduction and Description Features Data MT5634ZPX-PCI Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 8 Owner’s Manual Voice Peripiheral Component Interconnect (PCI) MT5634ZPX-PCI Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 9 1 Introduction and Description V.90 Support/Functions MT5634ZPX-PCI Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 10 Owner’s Manual What is in Your Modem Package? MT5634ZPX-PCI Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 11 1 Introduction and Description How to Use This Manual Chapter 1: Introduction and Description. Chapter 2: Installing Your Modem. Chapter 3: Controlling Your Modem. Chapter 4: Troubleshooting. Chapter 5: Warranty, Service, and Technical Support. MT5634ZPX-PCI Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 12 Owner’s Manual Typographic Conventions AT command Screen message MT5634ZPX-PCI Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 13 Chapter 2—Installation Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 14 Owner’s Manual Introduction What You’ll Need Multi-Tech supplies You supply MT5634ZPX-PCI Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 15 2 Installation Safety Warnings Installation Overview MT5634ZPX-PCI Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 16 Owner’s Manual Configuring the MultiModem ZPX-PCI Windows 95 Plug and Play Sound Card Considerations MT5634ZPX-PCI Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 17 2 Installation Installing the MultiModemZPX-PCI MT5634ZPX-PCI Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 18 Owner’s Manual External Connections PHONE LINE MIC IN LINE OUT MT5634ZPX-PCI Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 19 2 Installation Installing Drivers Verifying Configuration Windows 95 Plug and Play MT5634ZPX-PCI Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 20 Owner’s Manual MT5634ZPX-PCI Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 21 2 Installation To Remove Previous Modem from Windows 95 Is Your MultiModemZPX-PCI Ready for Use? MT5634ZPX-PCI Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 22 Owner’s Manual Operating Your MultiModemZPX-PCI Simple Operation MT5634ZPX-PCI Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 23 2 Installation Software Configuration Testing Data Functions MT5634ZPX-PCI Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 24 Owner’s Manual MT5634ZPX-PCI Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 25 2 Installation Testing FAX Functions MT5634ZPX-PCI Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 26 Owner’s Manual Other Ways to Access Microsoft Fax Testing Voice Function MultiModemZPX-PCI’s Answering Machine Test Loopback Testing MT5634ZPX-PCI Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 27 2 Installation MultiModemZPX-PCI’s Speakerphone Test MT5634ZPX-PCI Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 28 Owner’s Manual Configuring Communications Software MT5634ZPX-PCI Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 29 2 Installation MT5634ZPX-PCI Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 30 Owner’s Manual Remote Configuration Basic Procedure MT5634ZPX-PCI Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 31 2 Installation Setup Changing the Setup Password Changing the Remote Escape Character MT5634ZPX-PCI Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 32 Owner’s Manual Notes: MT5634ZPX-PCI Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 33 Chapter 3—AT Commands, S-Registers, and Result Codes Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 34 Owner’s Manual Introduction AT Commands call card call card ATDT (access/phone number) (credit card number) MT5634ZPX-PCI Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 35 3 AT Commands, Result Codes, and S-Registers Dial string modifiers: MT5634ZPX-PCI Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 36 Owner’s Manual call card &Zn=x 12AB ERROR MT5634ZPX-PCI Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 37 3 AT Commands, Result Codes, and S-Registers NA Ver. 1 MT5634ZPX-PCI Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 38 Owner’s Manual e.g., CONNECT CONNECT 56000 V42bis, CONNECT 33600 V42bis NO DIALTONE BUSY NO DIALTONE BUSY NO DIALTONE BUSY NO DIALTONE BUSY NO DIALTONE BUSY MT5634ZPX-PCI Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 39 3 AT Commands, Result Codes, and S-Registers &W MT5634ZPX-PCI Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 40 Owner’s Manual Values: MT5634ZPX-PCI Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 41 3 AT Commands, Result Codes, and S-Registers ATDS=n MT5634ZPX-PCI Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 42 Owner’s Manual &Q6 &K0 &K4 &K3 MT5634ZPX-PCI Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 43 3 AT Commands, Result Codes, and S-Registers MT5634ZPX-PCI Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 44 Owner’s Manual &F &M &Q \N +ES = ? For testing and debugging only. MT5634ZPX-PCI Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 45 3 AT Commands, Result Codes, and S-Registers S-Registers Register Unit Range Default Description ATS0=0 MT5634ZPX-PCI Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 46 Owner’s Manual Register Unit Range Default Description upstream MT5634ZPX-PCI Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 47 3 AT Commands, Result Codes, and S-Registers Register Unit Range Default Description downstream For testing and debugging only. MT5634ZPX-PCI Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 48 Owner’s Manual Register Unit Range Default Description S108 S109 0, 1, 2 MT5634ZPX-PCI Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 49 3 AT Commands, Result Codes, and S-Registers Result Codes Terse Verbose Description MT5634ZPX-PCI Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 50 V42bis (V.42 error control [LAP-M] and V.42bis data compression); V42 (V.42 error control [LAP-M] only); MNP5 (MNP 4 error control and MNP 5 data compression); MNP4 (MNP 4 error control only); NoEC (No error control protocol). MT5634ZPX-PCI Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 51 Chapter 4—Troubleshooting Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 52 Owner’s Manual Introduction Initial Checklist MT5634ZPX-PCI Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 53 4 Troubleshooting Common Problems The modem does not respond to commands MT5634ZPX-PCI Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 54 Owner’s Manual MT5634ZPX-PCI Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 55 4 Troubleshooting The modem dials but cannot make a connection MT5634ZPX-PCI Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 56 Owner’s Manual The modem disconnects while online MT5634ZPX-PCI Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 57 4 Troubleshooting The modem cannot connect when answering File transfer appears slower than it should MT5634ZPX-PCI Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 58 Owner’s Manual Data is being lost There are garbage characters on the monitor Fax and data software won’t run at the same time MT5634ZPX-PCI Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 59 Chapter 5—Warranty, Service, and Tech Support/BBS Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 60 Owner’s Manual Introduction Limited Warranty MT5634ZPX-PCI Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 61 5 Warranty, Service, and Tech Support Online Warranty Registration MT5634ZPX-PCI Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 62 Owner’s Manual Technical Support Recording Modem Information MT5634ZPX-PCI Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 63 5 Warranty, Service, and Tech Support Service MT5634ZPX-PCI Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 64 Owner’s Manual The Multi-Tech BBS To log on to the Multi-Tech BBS To Download a file MT5634ZPX-PCI Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 65 5 Warranty, Service, and Tech Support MT5634ZPX-PCI Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 66 Owner’s Manual About CompuServe About the Internet About the Multi-Tech Fax-Back Service MT5634ZPX-PCI Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 67 Appendix Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 68 Owner’s Manual Appendix A: Regulatory Compliance FCC Regulations for Telephone Line Interconnection MT5634ZPX-PCI Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 69 Appendix Fax Branding Statement MT5634ZPX-PCI Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 70 Owner’s Manual Canadian Limitations Notice MT5634ZPX-PCI Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 71 Appendix MT5634ZPX-PCI Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 72 Owner’s Manual Product Safety Compliance MT5634ZPX-PCI Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 73 Appendix MT5634ZPX-PCI Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 74 Owner’s Manual European Low Voltage Directive Protection Against Contact with TNV Circuit (Internal PC Cards) EMC, Safety and Terminal Directive Compliance MT5634ZPX-PCI Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 75 Appendix New Zealand Modem Warning Notice MT5634ZPX-PCI Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 76 Owner’s Manual Appendix B: Technical Specifications *Although V.90/K56flex technology is capable of downloads of up to 56 Kbps, FCC regulations currently restrict ISP modems to downloads of 53 Kbps. MT5634ZPX-PCI Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 77 Appendix MT5634ZPX-PCI Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 78 Owner’s Manual MT5634ZPX-PCI Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 79 Appendix MT5634ZPX-PCI Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 80 Device Control 1 File Separator Bell or Alarm Device Control 2 Group Separator Backspace Device Control 3 Record Separator Horizontal Tab Device Control 4 Unit Separator Line Feed Negative Acknowledge Delete MT5634ZPX-PCI Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 81 Appendix Appendix D: FLASHWINFlash Upgrade Introduction FLASHWIN MT5634ZPX-PCI Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 82 Owner’s Manual MT5634ZPX-PCI Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 83 Index Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 84 Owner’s Manual Index MT5634ZPX-PCI Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 85 Index MT5634ZPX-PCI Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 86 Owner’s Manual MT5634ZPX-PCI Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 87 Index MT5634ZPX-PCI Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 88 Owner’s Manual MT5634ZPX-PCI Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 89 Free Manuals Download Website h p://myh66.com h p://usermanuals.us h p://www.somanuals.com h p://www.4manuals.cc h p://www.manual-lib.com h p://www.404manual.com h p://www.luxmanual.com h p://aubethermostatmanual.com Golf course search by state h p://golfingnear.com Email search by domain h p://emailbydomain.com Auto manuals search h p://auto.somanuals.com TV manuals search h p://tv.somanuals.com...
