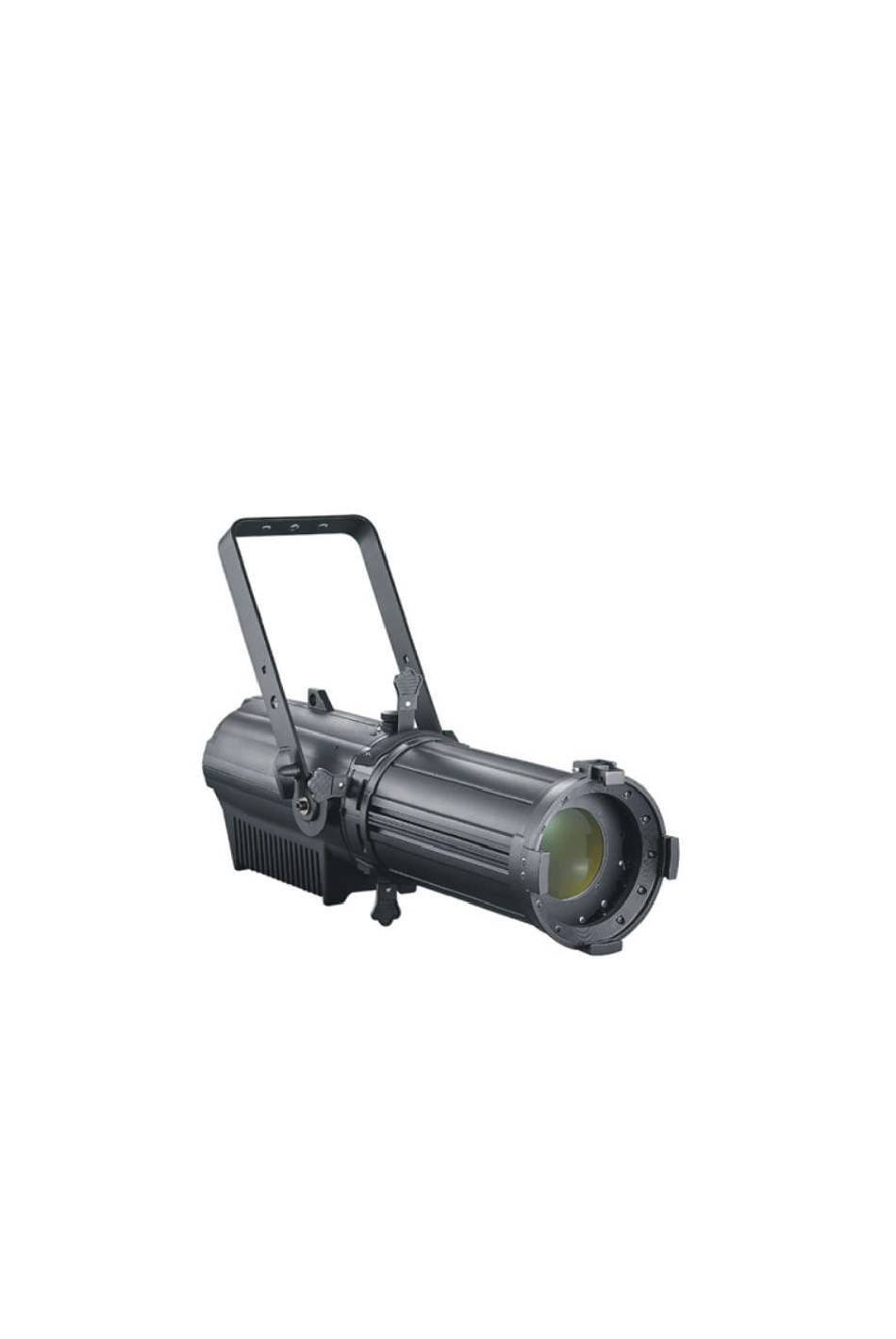

- Page 1 LED Leko 3000 ZOOM USER MANUAL ------------------------------ 2019 Ver04.01-----------------------------------...
- Page 2 INSTRUCTION Thank you for purchasing Led Leko 3000 ZOOM, every unit has been thoroughly tested and shipped in perfect condition. Carefully check the shipping carton for damage that may have occurred during shipping. If the carton appears to be damaged, carefully inspect your unit for any damage and be sure all accessories necessary to operate the unit has arrived well.
- Page 3 3.Specification Model: LED Leko 3000 ZOOM Lamp: TW 300W CW Or WW COB LED CCT: 3200K/ 5600K Power Supply: AC90V-250V, 50Hz/60Hz Power consumption: 350W Manual zoom angle: 19-50degree CRI>95 DMX Channel: 2CHs Display: LCD touch screen Connector: PowerCON in/out; 3pin/ 5pin DMX XLR Dimmer system: 4 dimmer curves Control Mode: Master/Slave mode;...
- Page 4 5. DMX 512 control connections Connect the provided XLR cable to the female 3-pin XLR output of your controller and the other side to the male 3-pin XLR input of the light. You can chain multiple lights together through series linking. The cable needed should be two core, screened cable with XLR input and output connectors.
- Page 5 6. Display Control Main Control The control board on the fixture bottom is your interface to access and control all the functions on the unit. It is LCD touchable display gives you a code view of the options and functions. The following will explain each function and its options.
- Page 6 1. Software: The display issues software number on the fixture is S1-M0C1 2. Version: The display issues software version on the fixture is Y702 3. Temperature: The display issues current working temperature on the fixture 4. DMX Status: The display issues the fixture is on DMX or out of DMX signal 5.
- Page 7 9. Photometric Data - 6 -...
- Page 8 8. APPENDIX 1. Issues and Solution Issue Reason Solution AC100V-250V, 50Hz/60Hz. Check the power connection, and make sure device Device not work No power connect the mains in well condition. Check if switch is on. Check if the fuse is good. Led lamp burnt Replacing led bulb Driver stop working...
