User Manual
LED Image-300

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LED Image-300 and is the answer not in the manual?

Questions and answers

Summary of Contents for Jobet LED Image-300

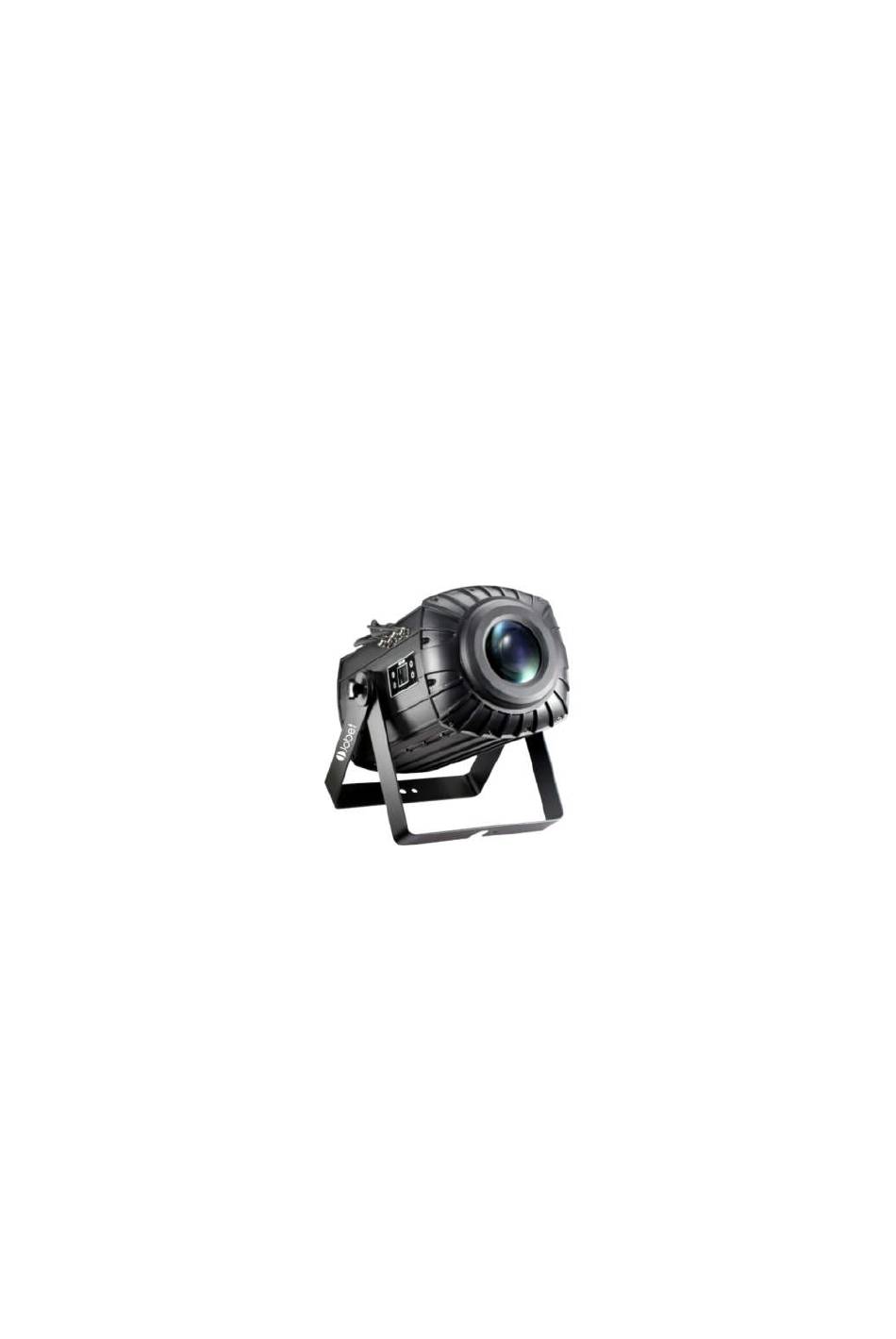

  • Page 1 User Manual LED Image-300...
  • Page 2 Check that the unit has not been damaged during transport Protection Against Fire Maintain a minimum of 1 50cm distance from any type of flame 2. Replace fuse only with the specified type and rating 3. Do not install the unit to close a heat source 4.
  • Page 3 Fixture Structure Dimension (mm): Photometric: - 2 -...
  • Page 4 Technical Information SOURCE ● Light Source: 300W Color White LED ● Color Temperature: 6500K ● Average LED Life: 20,000 Hour POWER ● Input Voltage: 100-240VAC, 50/60Hz ● Power Consumption: 400W max. at full output OPTICAL SYSTEM ● Zoom: 11°- 46° linear motorized ●...

  • Page 5: Dmx-512 Connection

    Main Power Connection Caution Do not connect fixture to a dimmer system. This unit has Auto switching power supply. It will respond to 110V or 220V automatically This unit must be earthed. (Electronically grounded) Replace fuse only with the specified type and rating. The occupation of the connection-cable is as follows: This fixture is equipped with an electronic power supply that will let the unit operate from 90V to 240V from 50Hz to 60Hz...

  • Page 6: Mounting And Installation

    Mounting &Installation ● The fixture can be mounted in any fixed position. ● Always ensure that mounting surface can withstand 10 times the weight of the fixture. ● Always use a safety cable when mounting the fixture in any elevated position. Important safety note! Always use a safety cable when installing this unit!! Be sure that the safety cable is connected to a solid load-bearing structure.
  • Page 7 Menu Map ● - 6 -...

  • Page 8: Dmx Profile

    DMX Profile 13CH Function DMX Value Description Dimmer 000-255 0-100% 000-003 Close 004-007 Open 008-076 Strobe Slow to Fast Strobe 077-145 Pulse Strobe Slow to Fast 146-215 Random Strobe Slow to Fast 216-255 Open 000-008 Open 009-017 Color 1 018-026 Color 2 027-035 Color 3...
  • Page 9 101-118 Gobo 2+ Gobo 3 119-135 Gobo 3+ Gobo 4 136-154 Gobo 4+ Gobo 5 155-172 Gobo 5+ Gobo 6 173-189 Color 6+ Open 190-220 Forward Fast to Slow 221-224 Stop 225-255 Backward Slow to Fast 000-063 Rotating Gobo Direction 064-145 Backward Slow to Fast Gobo Rotation...
