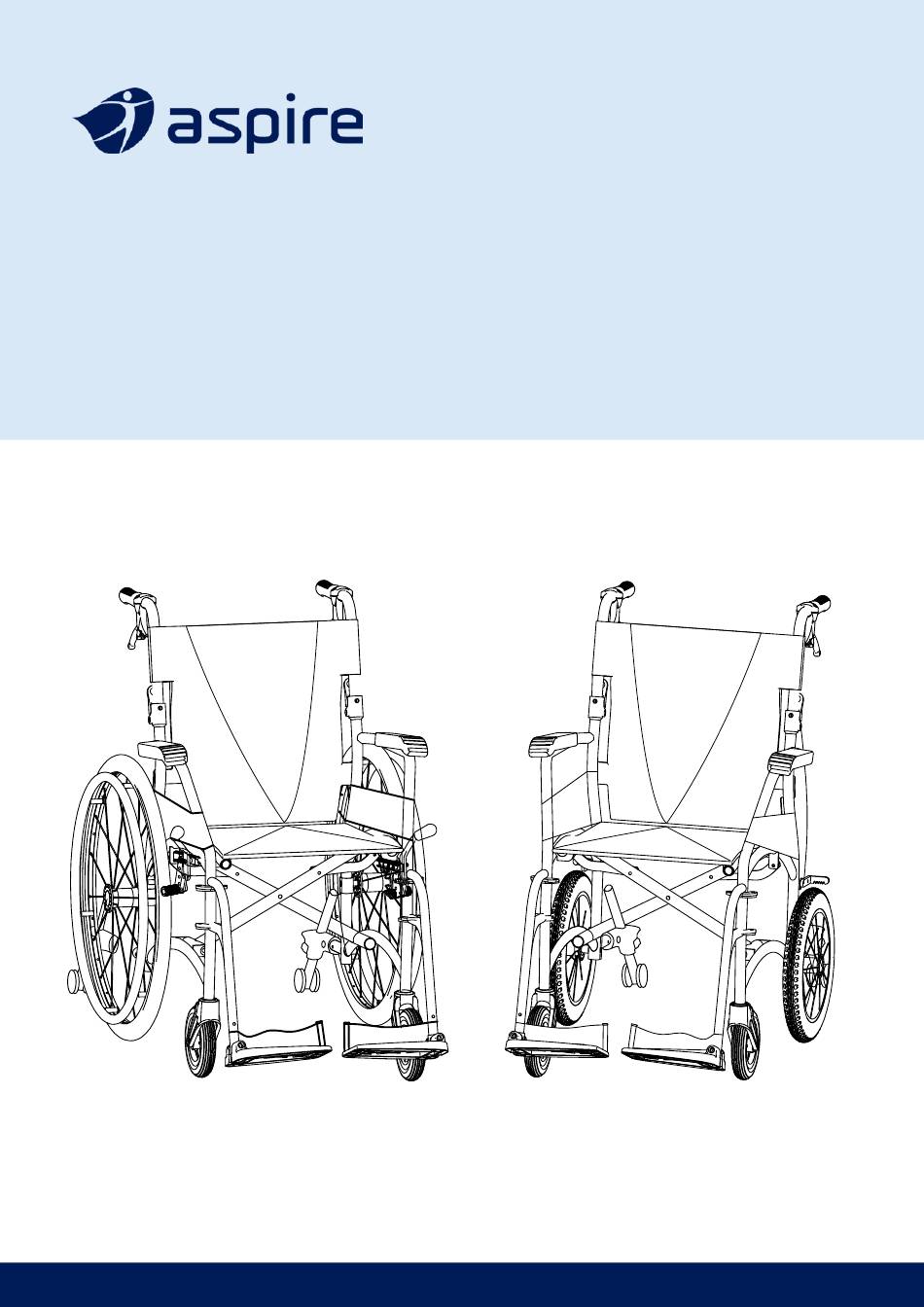

- Page 1 VIDA WHEELCHAIRS VIDA | VIDA MG | VIDA X USER MANUAL...
- Page 2 This product features the CE mark, in compliance with the Medical Devices Regulation 2002 (as amended) Class 1, and the Medical Device Regulation 2017/745 IMPORTANT: Do not use an Aspire Wheelchair without having first read this user manual WARNING © Aidacare Limited 2024 No part of this user manual may be copied, distributed, reproduced, scanned or stored on any electronic database, whether in whole or in part in any form or by any means.
- Page 3 It is equipped with a padded mesh seat and backrest, push handles, 13 inch rear wheels, swing-away legrests and padded armrests. Manufacturer Caution NOTE : Aspire VIDA MG Wheelchairs are made from Magnesium, not Aluminium. Importer Medical Device Self Propelled Self Propelled models are four wheel wheelchairs with a cross folding frame.
- Page 4 5. WARNINGS 7. LIST OF COMPONENTS VIDA / VIDA MG / VIDA X MAXIMUM WEIGHT CAPACITY – 135kg / 21st DO NOT exceed maximum user weight. This weight limit includes any accessories, shopping or other personal items that may be carried on the chair. The maximum weight capacity is Attendant Propelled 13”...
- Page 5 “Lifting the Wheelchair” instructions above. This will help reduce the overall chair size in order to fit into the rear boot or backseat of a standard motor vehicle. WARNING! Aspire Vida Wheelchairs are NOT crash tested and SHOULD NOT ever Rotate WARNING...
- Page 6 10.4 MOVING WHEELCHAIR UP A KERB WITH AN ATTENDANT WARNING! Exceeding a gradient beyond 6 degrees without anti-tippers extended may 1. Push the wheelchair up to the kerb FEET FIRST. cause the wheelchair to tip rearwards unless an attendant or carer is behind the wheelchair. 2.
- Page 7 11. ATTENDANT HANDBRAKE OPERATION 11.1 HOW TO ACTIVATE BRAKES SAFE USE Activating Brakes Squeeze Release to brake to go BRAKE: To engage brakes, RELEASE BRAKE: To disengage squeeze the handbrake in an brakes, release the handbrake. upwards direction. 11.2 HOW TO LOCK CARER HANDBRAKES Lock / Unlock UNSAFE USE *CLICK*...
- Page 8 12. ADJUSTING YOUR WHEELCHAIR 13. ACCESSORIES LAP BELT 12.1 ADJUSTING LEGREST HEIGHT WCA848300 TOOLS REQUIRED 5mm Allen Wrench Using a 5mm Allen key loosen the bolt and remove the centre pin. Nominate the preferred height by TOOLS REQUIRED raising or lowering footplate. 5mm Phillips Head Screwdriver To secure, align the centre pin with the chosen hole and tighten.
- Page 9 14. INSTALLING ANTI-TIPPERS 15. TROUBLESHOOTING ANTI TIPPERS MUST BE INSTALLED BEFORE USE Ensure rear wheel quick-release axles are locked securely in place. This can WCA848275 be checked by raising the rear wheels off the ground and pulling gently outward at the wheel hub. When locked in place the locking balls should be Wheelchair is visible at the inner end of the axle sleeve.
- Page 10 Frame Components Check brakes are functioning properly Aspire Vida Wheelchairs come with a 5-year warranty (frame) and a 1 year warranty (components). Weekly Check all fastenings such as nuts, bolts and hinges are fastened correctly Please keep purchase invoice as proof of warranty commencement.
- Page 11 20. RECYCLING INFORMATION 22. SERVICE LOG BOOK Aspire VIDA Wheelchairs are made from metal and plastic components. The chair can be recycled via standard processes in your city of use. Year 1 Date: Service Type: Condition Report: 21. MANUFACTURER, EU REPRESENTATIVE...
- Page 12 NOTES...
- Page 13 AIDACARE PTY LTD Building 3A, 1 Moorebank Avenue, Moorebank NSW 2170 Australia 1300 133 120 | aidacare.com.au AIDACARE LIMITED Arcadia House, Maritime Walk, Ocean Village, Southampton SO14 3TL United Kingdom 01622 541235 | aidacare.co.uk MADE IN PRC ASUM89.36 121224...
