- Page 1 PLU: 683949 CODE: CZ004B-BG Manufactured and packaged for SRGS PTY LTD ABN 23 113 230 050 6 Coulthards Avenue Strathpine QLD 4500, Australia MADE IN CHINA...

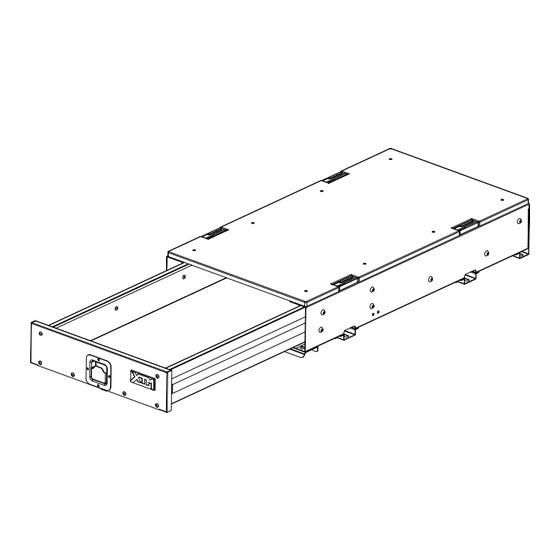

- Page 2 + 4WD SINGLE DRAWER X-LITE Instruction Manual...
- Page 3 + 4WD SINGLE DRAWER X-LITE-PLU 683949 + Thank you for purchasing the XTM 4WD SINGLE DRAWER X-LITE. Before use, please ensure that the latches inside the drawer will stop on the bumpers inside the drawer casing. Below is an image of the latches inside the drawer. The drawer tub can be removed by pulling these two latches together.
-
Page 4: Part List
+ PART LIST + Drawer Specifications External Size: L88 x W47 x H16cm Net Weight: 19kg Drawer Pull Out Length: 53cm + Mounting Kit 4 x M10 x 50mm Bolts 4 x M10 Washers 4 x M10 Nyloc nuts 4 x M10 Spring washers... - Page 5 + LOCATING MOUNTING SPACE IN CAR + IMPORTANT: This drawer is designed to mount on a flat surface in the rear of car. Please carefully check the drawer size and make sure it will be able to be attached. For some vehicles, the configuration of the rear floor means a flat plywood board (not supplied) may be required to be added for secure and easy mounting.
- Page 6 + STACKABLE VERTICAL DRAWER OPTION + The universal design allows drawers to be stacked. Use your M8 x12mm bolts and washers/nuts (not supplied) and follow the steps below:...
