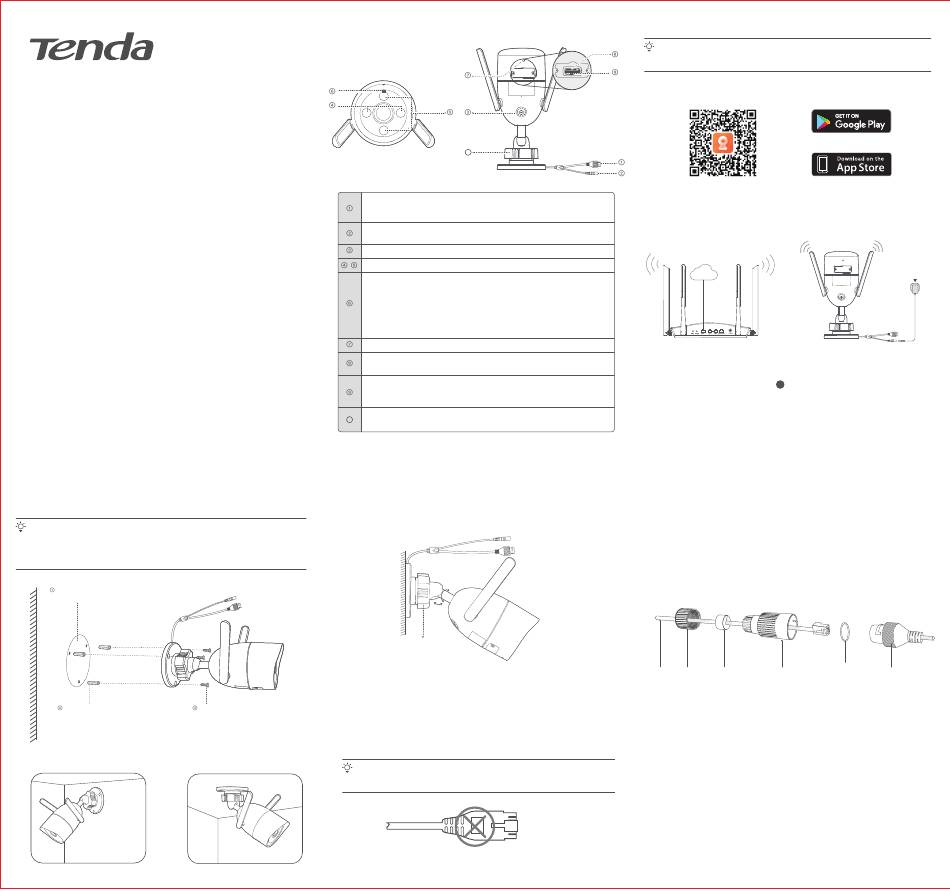

Tenda CT3 Quick Installation Manual

Quick Installation Guide
Outdoor Wi-Fi Camera
CT3/RT3/CT6/RT6/CT7/RT7
Package contents
• Camera x 1
• Power adapter x 1
• Installation template x 1
• Waterproof kit x 1
• Anchor x 3 (Height: 6.6 mm, Inner diameter: 2.4 mm, Length: 26.4 mm)
• Screw x 3 (Thread diameter: 3mm, Length: 25 mm, Head diameter: 6.0 mm)
• Quick installation guide
Please read this guide before you start with the quick setup upon the first use.
This guide applies to Tenda Security Pan/Tilt Camera. CT6 is used for illustrations here unless
otherwise specified. The actual product prevails.
Install the device
• Install the camera
The camera supports ceiling and wall mounting.
Tips
(1) Please make sure the ceiling is strong enough to withstand three times the weight of the camera
and base (if any).
(2) You may need a hammer drill, a drill bit, a rubber hammer, a screwdriver, and a ladder for the
installation.
Place the template at
the desired location.
Drill screw holes and
insert anchors into them.
• Drill bit diameter: 6 mm
• Hole depth: 28-32 mm
Wall mounting
Appearance
Ethernet port
10/100 Mbps auto-negotiation Ethernet port, used for connecting such devices as the
router and switch.
Power jack
Used to connect to the included power adapter.
Speaker
Fill light
LED indicator
Solid red: Initializing and starting.
Blinking red slowly: Disconnected from a 2.4 GHz Wi-Fi network.
Blinking red quickly: Connecting to a 2.4 GHz Wi-Fi network.
Solid blue: Connected to a 2.4 GHz Wi-Fi network.
Blinking blue slowly: Upgrading.
Blinking blue quickly: Waiting to connect to a 2.4 GHz Wi-Fi network.
Microphone
Micro SD card slot (Behind the cover)
Insert the Micro SD card to store the monitoring videos.
Reset button(Behind the cover)
Hold down the Reset button for about 5 seconds and release it when the LED indicator blinks
blue quickly or hear a prompt tone. The camera is reset successfully.
Orientation knob
10
Adjust the monitoring angle for the best view through your camera.
• Adjust the monitoring angle
Loosen the orientation knob, adjust the orientation of the camera as required, then
tighten the knob.
Fix the camera
using the screws.
• Install waterproof kit
Install the waterproof kit for the Ethernet port if the camera is installed outdoors.
Ceiling mounting
Tips
The included waterproof kit is not suitable for the Ethernet cable with protection cover on the
crystal head. See the example on the right.
Micro SD
Reset
10
0-360°
0-90°
Orientation knob
Add the camera to TDSEE App
Tips
Before adding your camera, ensure that the router is connected to the internet successfully and the
filter function is disabled.
1. Download the TDSEE App onto your mobile device by scanning the QR code or
searching for TDSEE in the Google Play or App Store.
Or
QR code
2. Power on the camera.
The LED indicator lights solid red after the camera is powered on. When the LED indicator
blinks blue quickly, the camera is waiting to connect to a 2.4 GHz Wi-Fi network.
Internet
Router
3. Run the TDSEE App and follow the instructions to complete user registration. Enter the
homepage, then tap Add a device or 十 in the upper right corner of the home page.
4. Scan the QR code on the body of the camera, and follow the instructions in the App.
After the settings are completed, you can see that the added camera is online on the
homepage of the TDSEE App, and the camera has been managed by the TDSEE App.
When the Ethernet port of the camera is connected to an Ethernet cable, the waterproof
installation steps are as follows. If not, you are also recommended to install the kit and
wrap the end with waterproof tape.
1. Put the O-ring on the Ethernet port of the camera.
2. Pass the Ethernet cable through the fixed nut, the waterproof ring and the waterproof
jacket in sequence.
3. Rotate to fix the waterproof jacket to the Ethernet port of the camera, insert the
waterproof ring into the waterproof jacket and fasten the fixed nut.
Ethernet Fixed nut Waterproof ring Waterproof jacket
cable (Insert it into the (Clockwise rotation)
waterproof jacket.)
• Power on the camera
Power on the camera after the camera is mounted. When the camera completes
startup, it will automatically connect to the configured Wi-Fi network. When the LED
indicator of the camera is solid blue, you can use the camera normally.
Power on the
Micro SD camera
Reset
O-ring
Ethernet port
(Put the O-ring on
the Ethernet port of
the camera.)
