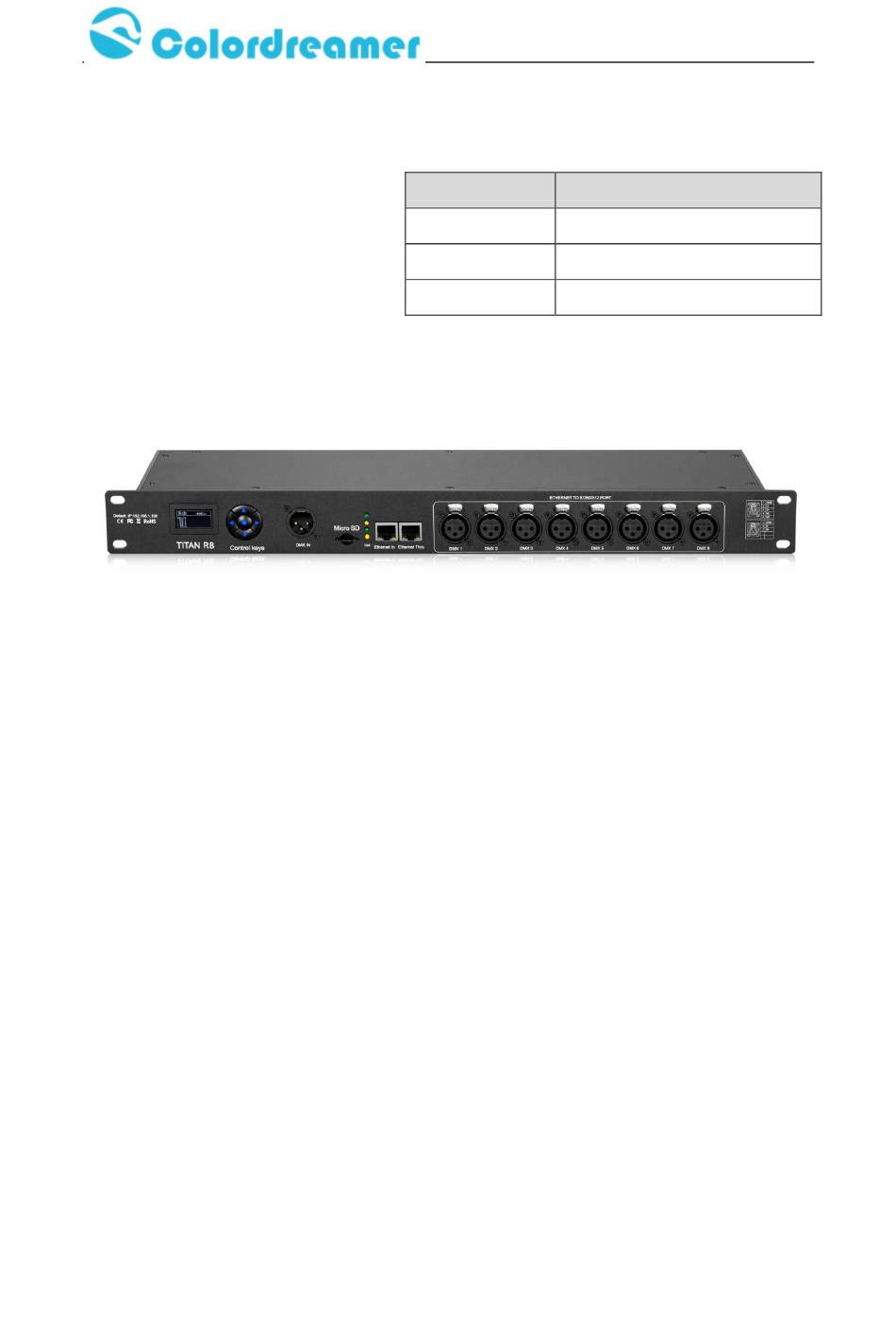

ARTNET/SACN to DMX-RDM Controller

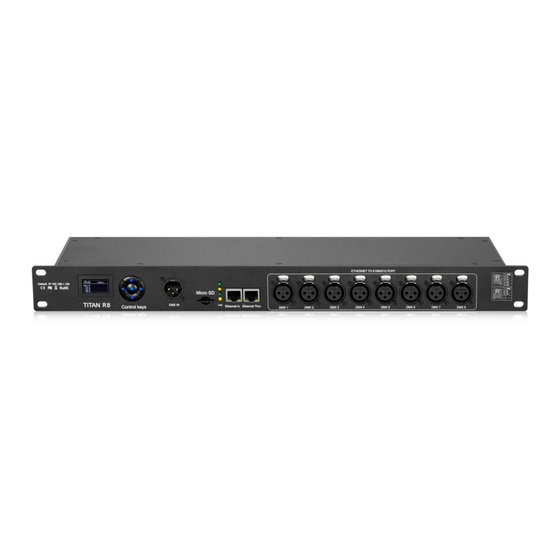

TITAN R8
Thank you for purchasing the Colordreamer Titan Artnet to DMX Controller!
Our manual will describe the installation and mounting of the product as well as
description of how to use it.
Please read and understand this manual in its entirety before using the product.
This manual was written and published by Colordreamer Lighting and has the final right to
interpret related products.The follow-up upgrade of related products may be slightly
different from this manual, and the upgrade of the manual may not inform you in time.
Please pay attention to the discrepancies between the actual product and the description in
this manual.
Package Contents:
1XTitan R8
1XPower Cord
1XRJ 45 Cable
Product Warranty is void if product is not installed as per installation instructions and in
compliance with all local and provincial codes.
www.colordreamer.com
Products and specifications are subject to change without notice
Client
Project
Order Code
QTY
Email:info@colordreamer.com
Version:V1.0 July 28, 2024 2024
Advertisement
Table of Contents
Related Manuals for Colordreamer TITAN R8
Summary of Contents for Colordreamer TITAN R8
- Page 1 Please read and understand this manual in its entirety before using the product. This manual was written and published by Colordreamer Lighting and has the final right to interpret related products.The follow-up upgrade of related products may be slightly different from this manual, and the upgrade of the manual may not inform you in time.
-
Page 2: Safety Recommendations And Warnings
Do no connect the unit to LEDs that are switched on. To supply this unit with power, first connect the provided power cord to the unit and then to a suitable power outlet. www.colordreamer.com Email:info@colordreamer.com Version:V1.0 July 28, 2024 2024... -
Page 3: Product Overview
Master-Slave Synchronization In addition to playing the local data, Titan R8 can also be used as a master to drive other devices to play through the Ethernet network. -
Page 4: Product Specification
Product Specification Models TITAN R8 Electrical Input Voltage 100-240VAC 50/60Hz C14 inlet Power Consumption <5W during operation Control Network Protocols Art-Net/Streaming ACN DMX Outputs 8 Outputs(Each output 512DMX Channels) DMX In 1X512 DMX Channels input Ethernet RJ45 Default IP 192.168.1.100 255.255.255.0... - Page 5 The UP/DOWN/LEFT and RIGHT keys 3. DMX IN 4. SD Card 5. Status LEDs 6. Ethernet in and thru port 7. DMX1-8 3-Pin And 5-Pin XLR Connector Layout www.colordreamer.com Email:info@colordreamer.com Version:V1.0 July 28, 2024 2024 Products and specifications are subject to change without notice...
- Page 6 Standby Screen: When you are not performing a task within a menu, Titan R8 will display device information as below. Press LEFT and RIGHT Key to find more information of this device.
- Page 7 Setup Port Setup Device Setup Mode www.colordreamer.com Email:info@colordreamer.com Version:V1.0 July 28, 2024 2024 Products and specifications are subject to change without notice...
- Page 8 Setup Network System Reset www.colordreamer.com Email:info@colordreamer.com Version:V1.0 July 28, 2024 2024 Products and specifications are subject to change without notice...
- Page 9 Open your web browser and enter the IP address of Artnet Controller 192.168.1.100 Step 4) The web configuration tool will be launched. If access WEB failed, Use PING command on PC to test the connectivity! www.colordreamer.com Email:info@colordreamer.com Version:V1.0 July 28, 2024 2024 Products and specifications are subject to change without notice...
-
Page 10: Port Configuration
Device Configuration Port Configuration: www.colordreamer.com Email:info@colordreamer.com Version:V1.0 July 28, 2024 2024 Products and specifications are subject to change without notice... - Page 11 Source Merge Adjust the pixel order of RGB fixture model Pixel Order Expand the multi-pixel to one Pixel Expand Adjust the brightness of fixture Brightness www.colordreamer.com Email:info@colordreamer.com Version:V1.0 July 28, 2024 2024 Products and specifications are subject to change without notice...
- Page 12 Email:info@colordreamer.com Version:V1.0 July 28, 2024 2024 Products and specifications are subject to change without notice...
- Page 13 Mode Configuration RDM Management Network Configuration www.colordreamer.com Email:info@colordreamer.com Version:V1.0 July 28, 2024 2024 Products and specifications are subject to change without notice...
-
Page 14: System Configuration
System Configuration www.colordreamer.com Email:info@colordreamer.com Version:V1.0 July 28, 2024 2024 Products and specifications are subject to change without notice...
