Summary of Contents for Optimas S19

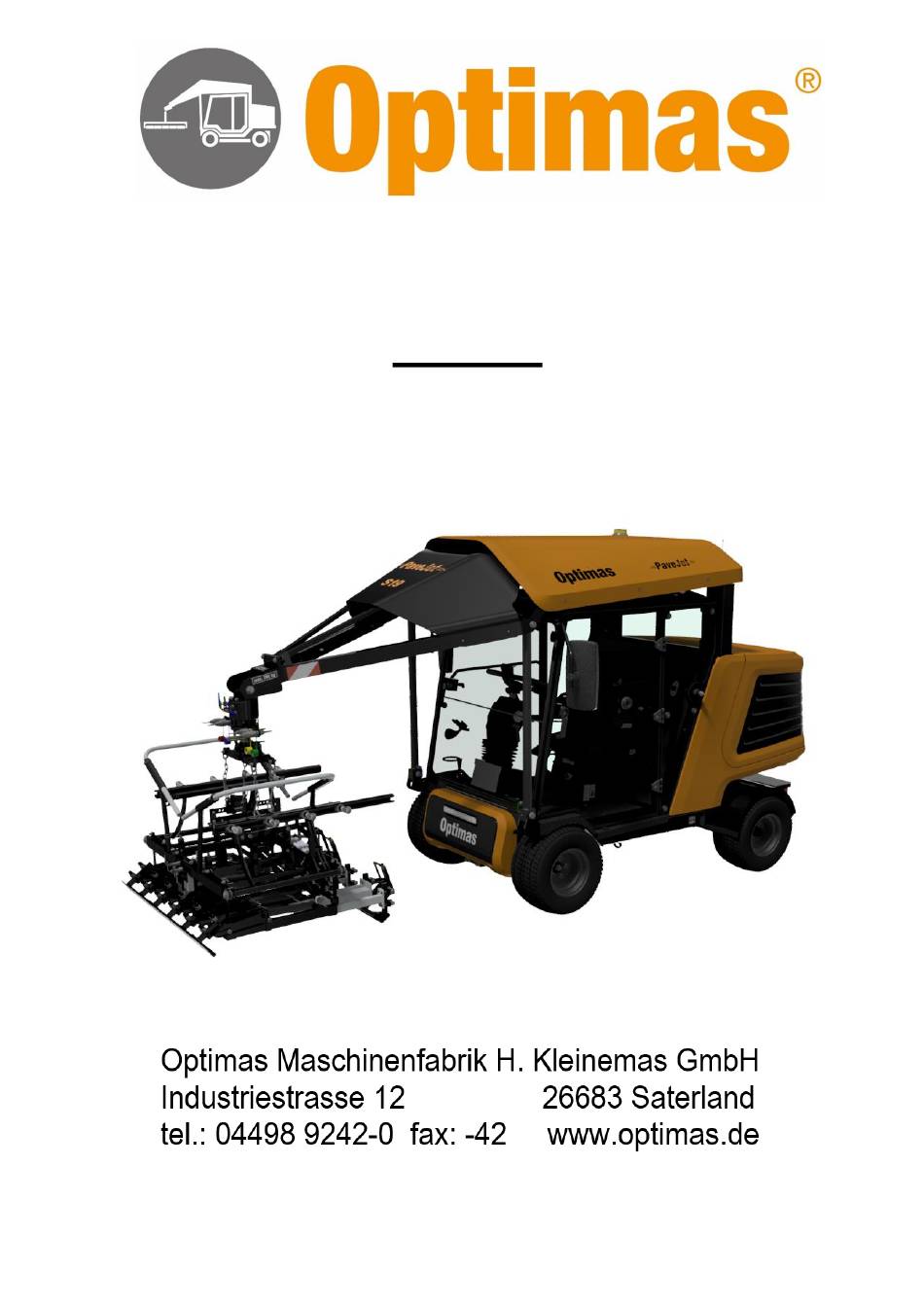

- Page 1 Manual Optimas Paver Laying Machine S19 Manual Optimas Paver Laying Machine S19...
- Page 2 5.7 Turning radius ....................13 5.8 Maximum angle of inclination ................14 5.9 Boom outer dimensions ..................15 6 Operation of S19 ...................... 17 6.1 Start engine ......................17 6.2 Work cycle-and operating hour counter ............. 17 6.3 Hydraulic brake ....................17 6.4 Safely parking ....................
- Page 3 Manual Optimas Paver Laying Machine S19 7 Transport ........................18 7.1 Minimum loading area size ................18 7.2 Safely loading ....................19 8 Designations and functions in the cabin ..............20 8.1 Instrument panel ....................20 8.2 Steering column and pedals ................21 8.3 Heating controler ....................
- Page 4 Manual Optimas Paver Laying Machine S19 2 Conformity Konformitätserklärung; Declaration of conformity; Déclaration de Conformité; Certificato di conformita´norma CE; Declaración de conformidad Designation: Optimas paver laying machine S19 Manufacturer: Optimas Maschinenfabrik GmbH Address: Industriestr. 12 26683 Saterland-Ramsloh Optimas Maschinenfabrik GmbH...
- Page 5 Manual Optimas Paver Laying Machine S19...
- Page 6 Manual Optimas Paver Laying Machine S19 Sign, information to signatory Saterland-Ramsloh, 27.April 2016…………………………………………………………………………………………………… (F.Kleinemas, Managing Director)
- Page 7 3 General 3.1 Information to manual This manual allows safe and efficient operation of Optimas laying machine. Manual is a part of machine and must be located in close proximity to machine. Manual must be stored accessibly for operator. Before use of machine operator must read and understand manual accordingly.
- Page 8 Manual Optimas Paver Laying Machine S19 3.3 Limitation of liability All information and instructions in this manual has been compiled in accordance with current standards and regulations, the prior art and our many years of experience. The manufacturer accepts no liability for damage due: •...
- Page 9 Manual Optimas Paver Laying Machine S19 4.2 Personnel requirements Dangerous situation! Describes dangerous situation which can cause bad injuries or property damage. Attention In the operating instructions the following qualifications for different areas of activity are named. Instructed person was informed in a briefing by the operator on the tasks entrusted to it and possible hazards of improper conduct.
- Page 10 Manual Optimas Paver Laying Machine S19 If, beyond the intended use and / or other use of the appliance can lead to dangerous situations. The equipment must be checked before each use function and condition! maintenance, lubrication and trouble shooting may only be done when Machine is decommissioned.
- Page 11 Manual Optimas Paver Laying Machine S19 4.7 Driving with open doors When driving with open door glass, make sure that it is fitted properly! (see image) !!! Attention !!! If the door glass while driving is not locked, it may break the disc!
- Page 12 Manual Optimas Paver Laying Machine S19 5 Technical data 5.1 Machine – serial no. Engine type and serial –no. Engine type: _______________________________ Serial no.: _______________________________ Hydraulic pump type and serial no. Hydraulic pump type: _______________________________ Serial no.: _______________________________ Machine type and serial no.
- Page 13 Manual Optimas Paver Laying Machine S19 5.5 Alternative hydraulic oil ARAL: - SGF - BP Automatik Transmission Fluid Chevron: - Automatik Transmission Fluid A Esso: - ATF Type A Shell: - Donax TM DEA: - Fluid 684 N (ATF) 5.6 Dimensions...
- Page 14 Manual Optimas Paver Laying Machine S19 Maximum angle of inclination Respect max. angle of inclination! Driving up: max. gradient of 35% Driving down: max. slope 35% Driving sideways across a slope: max. slope 15% Attention at ateering! Respect safety advices when working across slopes and gradients!
- Page 15 Manual Optimas Paver Laying Machine S19 5.9 Boom outer dimensions 196 cm With short chain (3 links) 112cm Standard 97 cm 204 cm 30 cm...
- Page 16 Manual Optimas Paver Laying Machine S19 204 cm With short chain (3 links 112cm Standard 97 cm 382 cm 250 cm...
- Page 17 Manual Optimas Paver Laying Machine S19 6 Operation of S19 6.1 Start engine Adjust revolutions per minute (RPM) lever to middle position. Turn ignition key to „preglow“. As soon as preglow lamp goes out turn ignition key to start the engine.
- Page 18 Manual Optimas Paver Laying Machine S19 7 Transport 7.1 Minimum loading area size Weight: 1800 kg Note: Lashing straps should only be fastened at the points provided for Eyelets for this purpose! lashing straps Eyelets lashing straps 2x...
- Page 19 Manual Optimas Paver Laying Machine S19 7.2 Safely loading Attach the machine to the trailer with tension straps or chains. (see picture 1) Lower the boom completely and secure the clamp. Close and lock cabin doors and engine compartment cover ...
- Page 20 Manual Optimas Paver Laying Machine S19 8 Designations and functions in the cabin 8.1 Instrument panel 1. CE - Label 2. Radio (Optional) 3. Cooling water warning light / Air filter warning light 4. Batter charging control light / Engine oil warning light 5.
- Page 21 Manual Optimas Paver Laying Machine S19 8.2 Steering column and pedals The steering wheel (1) and the steering column (2) are adjustable. Release the handle (12) at the right side. Adjust the steering wheel and steering column to any position.
- Page 22 Manual Optimas Paver Laying Machine S19 8.3 Heating controler The heating control is located to the left of the driver's seat. By turning to the left or right, the temperature can be regulat easily in the cab. 8.4 Opening of engine hood...
- Page 23 Manual Optimas Paver Laying Machine S19 9 Paver laying 9.1 Operation of joystick 9.2 Work cycle „standard“ (without shifting) with semi automatic 1. Enable semi automatic. (Switch on switch 14 => light goes out) 2. Place the clamp on the stone package.
- Page 24 Optimas Paver Laying Machine S19 9.3 Work cycle „Automatic“ With the ’’Optimas Automatic’’ function, all clamp functions are performed fully automatically. Important: Only enable the automatic when the clamp is open. Before activating the "Automatic", do the gripping manually once.
- Page 25 Manual Optimas Paver Laying Machine S19 10 Designations engine compartment 10.1 Fuse-box The fuse-box is mounted on the right side of the engine compartment. 1. Ignition 2. Light 3. Heating 4. Warning light 5. Switch, box I 6. Switch, box II 7.
- Page 26 Manual Optimas Paver Laying Machine S19 10.3 Air filter and coolant reservoir The cooling water tank is mounted at the rear left side of the engine compartment. - The air filter is located on the front left side. It can be...
- Page 27 Manual Optimas Paver Laying Machine S19 Factory setting: Both valves are opened by 1.5 turns by turning them counterclockwise. This setting is secured at the valve by a set screw. This factory setting may be changed by a maximum of 1 turn to the left (counterclockwise) - for the purpose of adjusting the individual driving characteristics.
- Page 28 Manual Optimas Paver Laying Machine S19 12. Service and maintenance 12.1 Daily service The machine should be serviced and maintained as recommended. The following checks should be performed every time before starting. Check the following: Operating panel Cooling water level ...
- Page 29 Manual Optimas Paver Laying Machine S19 12.2 First inspection after 50 working hours Clean or replace the air filter Change the motor oil and oil filter Check water cooler fins for dirt and grime Check the cooling water level and antifreeze (every year before the first frost), refilling if necessary ...
- Page 30 Manual Optimas Paver Laying Machine S19 12.4 Continuing inspection after every 1000 working hours Change the motor oil and oil filter Check the hydraulic oil level, refilling if necessary (change the hydraulic oil every 1000 hours or once per year) ...
- Page 31 Manual Optimas Paver Laying Machine S19 13.2 Mounting Joint Filling Device respectively Clean-Sweeper The mounted equipment is fastened to the boom or to the cylinder mount, but the roller broom can only be mounted using an adapter. The hydraulic hoses are connected to the green and yellow connections.
- Page 32 Manual Optimas Paver Laying Machine S19 13.3 Attachments Hydraulic Clamp Hydraulic curb clamp Vacuum unit Hydraulic paving joint fill unit water wagon and water tank...
- Page 33 Manual Optimas Paver Laying Machine S19 14 Troubleshooting Problem Cause Solution Motor starts poorly or not at all, motor does - Wrong fuel - Use the right fuel not run smoothly - Check the generator - Low battery voltage - Recharge or install a new...
- Page 34 Manual Optimas Paver Laying Machine S19 Problem Cause Solution - Grab clamps before - Open width setting of - see the Operating the sideways pressing the grab is set too Instructions for the grab is finished small - Timing relay is...
- Page 35 Manual Optimas Paver Laying Machine S19 Problem Cause Solution Battery will not - Loose or corroded cable charge, discharges - Clean and tighten connection by itself - Recharge or replace - Battery voltage too low battery - Generator V-belt loose...
- Page 36 Manual Optimas Paver Laying Machine S19 Boom raises too fast - Pressure follow-up – layer of paving - Consult the valve not set or set stones is not grabbed manufacturer incorrectly (in Automatic mode) Front axle bearing - Front axle suspension...
- Page 37 Manual Optimas Paver Laying Machine S19 Seitliches Andrücken Automatik Funktion hydraulisch elektrisch...
