Kolpin 31-0060 Assembly / Spare Parts Manual

High rise blade (60”) kit
Hide thumbs

Advertisement

Quick Links

Download this manual

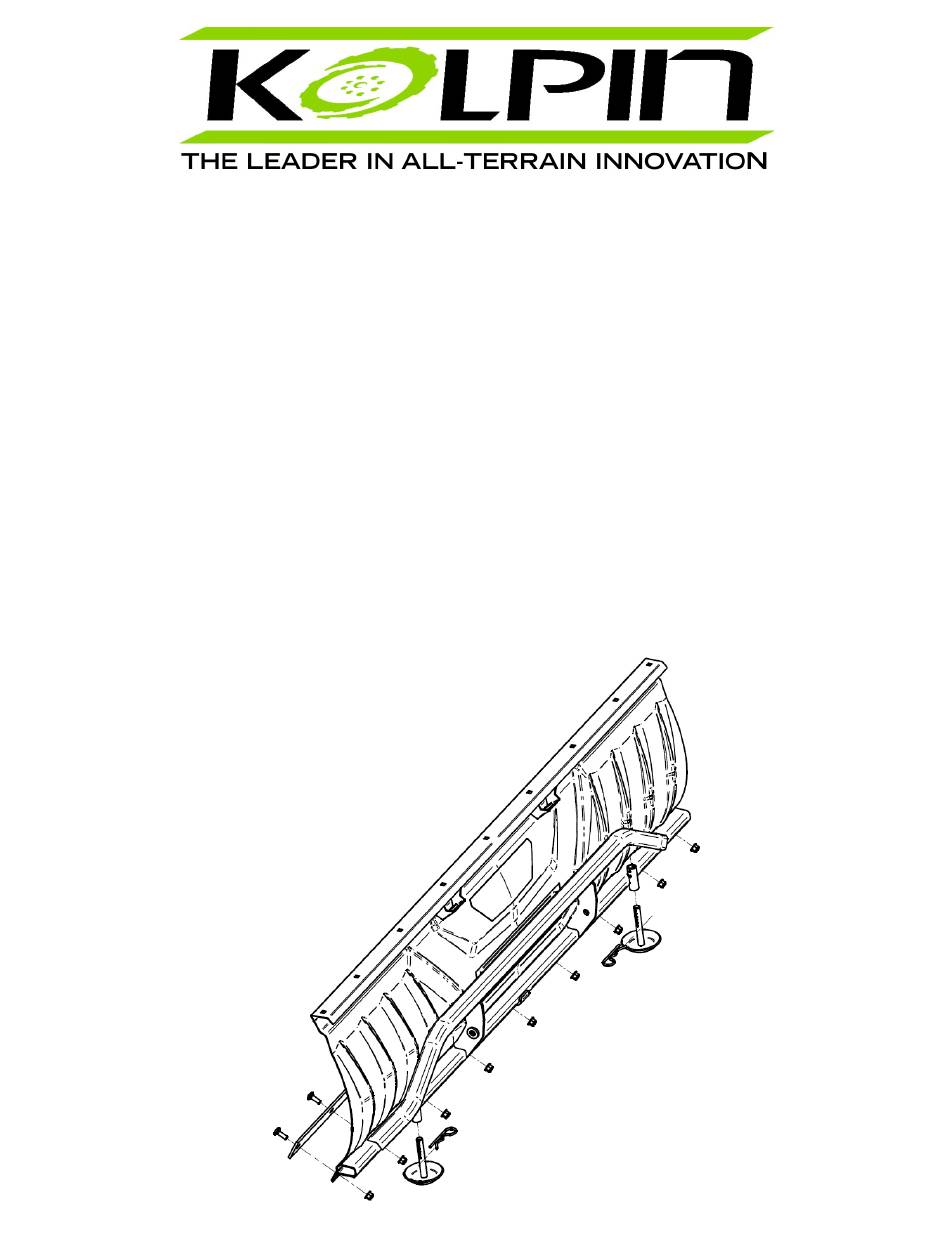

HIGH RISE BLADE (60") KIT
P/N 31-0060
ASSEMBLY / SPARE PARTS MANUAL
Application
PLOW PUSH FRAME NO. 33-0000
Before you begin, please read these instructions and check to be sure all parts and tools are
accounted for. The following instructions contain details required to install and service the contents
of this kit.
© 2015 Kolpin Outdoors Inc.
REV 00
