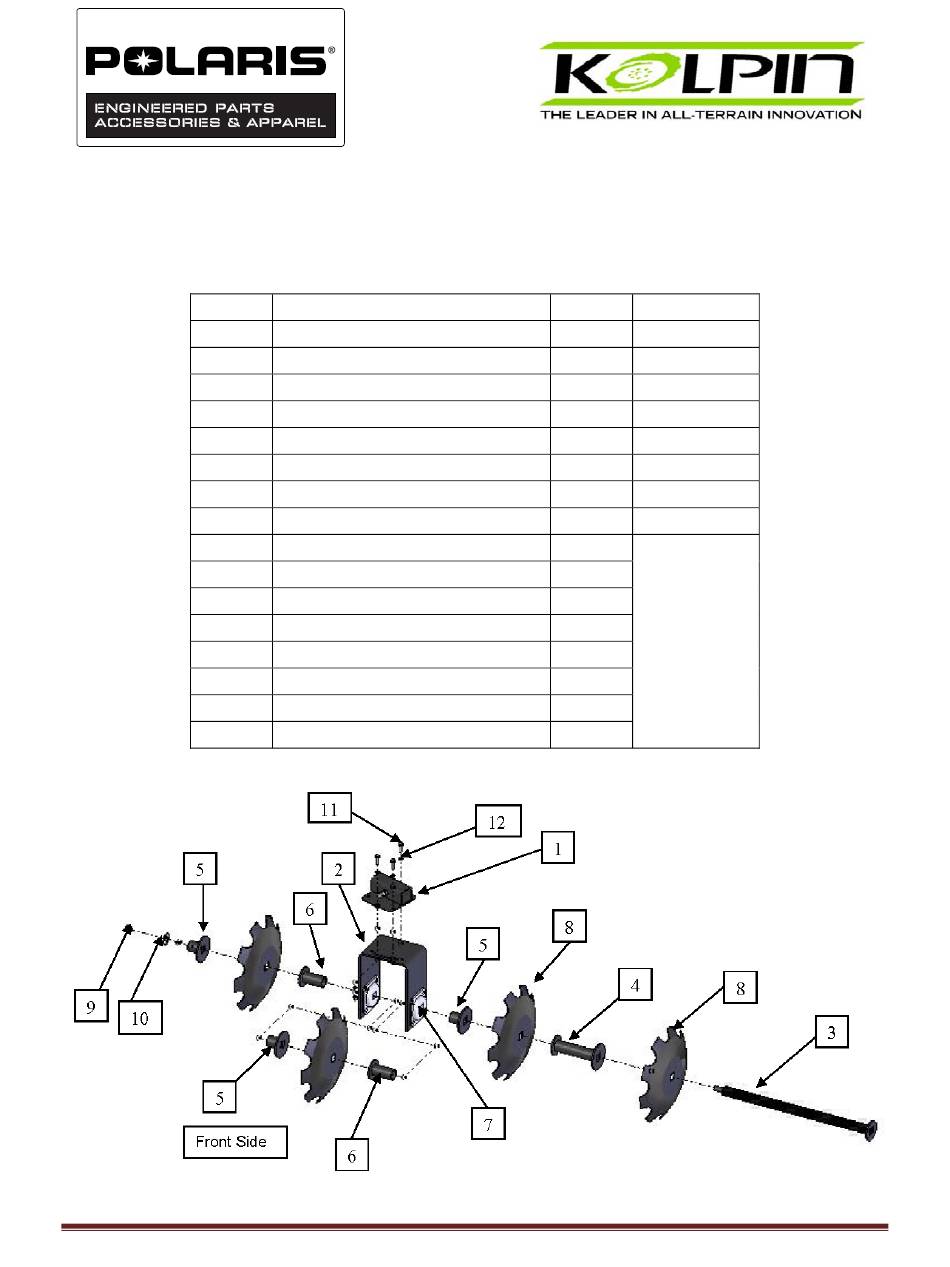

Polaris 54" Disc Plow Instruction Manual
REF
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Instr 9926678 Rev 01 06/15
P/N 2881569
PART DESCRIPTION
Top Swivel Bracket
Main Bearing Carrier
Main Axle
Full Spindle
Large Dia. Spindle
Small Dia. Spindle
Spindle Bearing
14" Notched Disc
¾" – 10 Nylock Nut
¾" I.D. x 2" O.D. Washer
3/8" – 16 x 1.25" Hex Bolt
3/8" Washer
3/8" – 16 Nylock Nut
½" – 13 x 1.50" Carriage Bolt
½" – 13 Nylock Nut
5/8" – 11 x 2" Hex Bolt
QTY
P/N
2
60003
2
60004
2
60005
2
60006
6
60007
4
60008
4
110011
8
110010
2
2
6
12
60009
6
16
16
2
Page 1 of 7
Advertisement
Table of Contents
Summary of Contents for Kolpin Polaris 2881569
- Page 1 Polaris 54” Disc Plow Instruction Manual P/N 2881569 PART DESCRIPTION Top Swivel Bracket 60003 Main Bearing Carrier 60004 Main Axle 60005 Full Spindle 60006 Large Dia. Spindle 60007 Small Dia. Spindle 60008 Spindle Bearing 110011 14” Notched Disc 110010 ¾” – 10 Nylock Nut ¾”...
- Page 2 Right Hand Orientation: This is a top view of the right hand side of the disc. NOTE: The side with the 2 – 3/8” hardware and the 5/8” bolt needs to be facing the front, towards your ATV/UTV/UTV as shown below. ASSEMBLY: 1.
- Page 3 4. Next, attach the swivel bracket to the top of the 7. Then, slide on a second disc. Main Bearing Carrier. Using the (3 of the 6) 3/8” Hex Bolts, along with the 3/8” Washers and Nylock Nuts, tighten the swivel bracket securely. The larger angle you choose to use the more aggressive the disc(s) will cut.
- Page 4 Next, the Small Diameter Spindle goes on so that the open end of the spindle is touching the bearing as shown. 11. Next, slide on the final Disc. Then place the final Large Diameter Spindle on the Disc so that the flange is touching the Disc as shown.
- Page 5 Warnings: Always use CAUTION when operating any ATV/UTV with accessories or additional implements secured to the ATV/UTV. DO NOT allow any passengers on the ATV/UTV. Excessive speeds can cause serious injuries or death. DO NOT exceed 5 mph when the “Polaris 3-Point Hitch”...
- Page 6 View Looking Towards the Rear Accessory Tool Bar Disk should be just touching Angle Adjustment Bracket Top View Top View Detail 3-Point Lift Arm Connection Point Locking Bolt to secure Angle Adjustment Bracket Disks should be Accessory Tool Bar in this position Side View Adjustments: Adjust Top Link on...
- Page 7 Disks MUST be angled to function properly! INCORRECT! CORRECT! Note the Following Items: Different soil types will require adjustment of the disk angle for optimal performance. The tow vehicle will also be affected by the proper adjustment of the Disk Angle. ...
