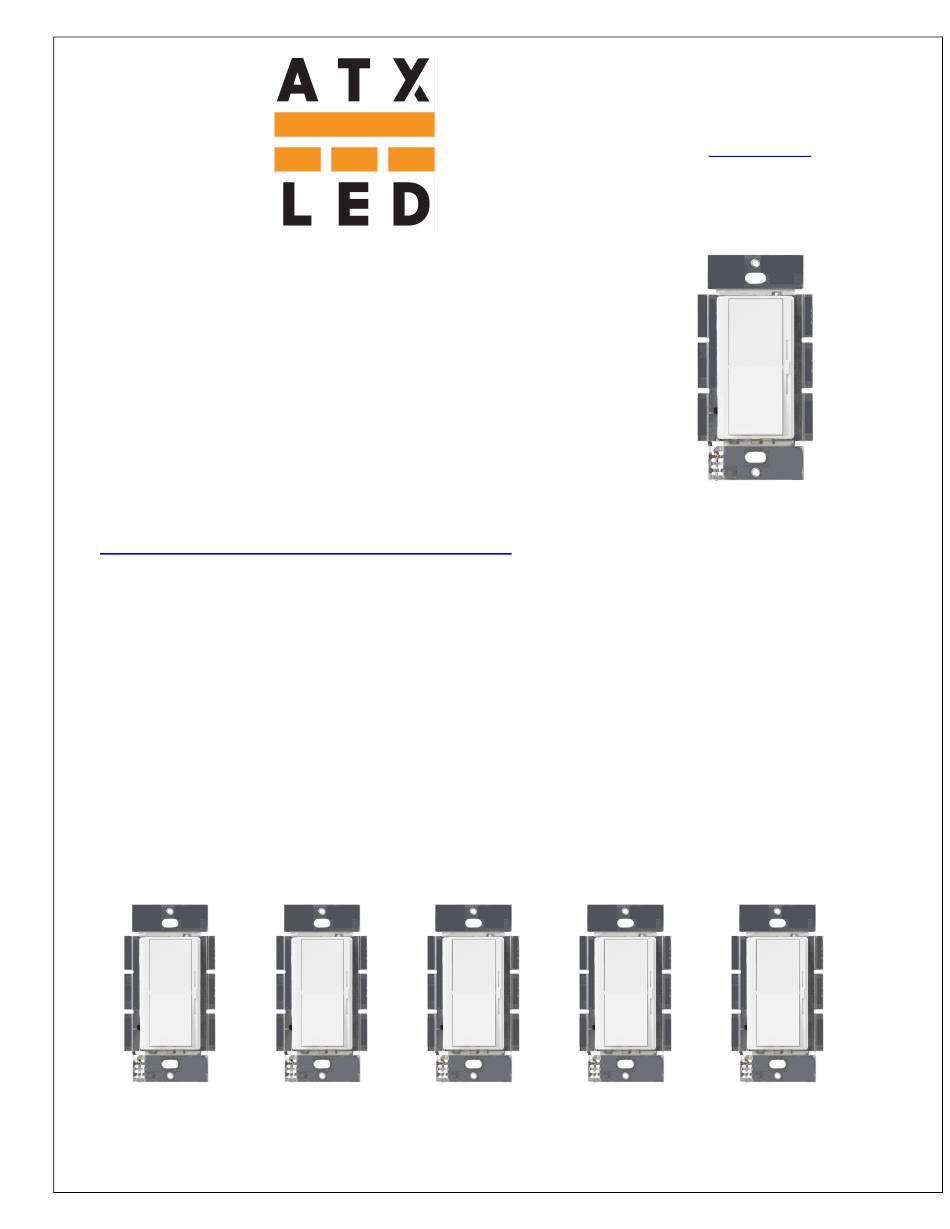

ATX LED AL-WS-DR2C v2 Manual

AL AL AL AL- - - - WS
Decorator Decora Decora Decora
Constant Current LED Constant Current LED / Fans
Constant Current LED Constant Current LED
driver and dimmer drive drive drive
56 56 56 56 watt watt watt 3 3 3 3- - - - Way watt
Product Description - AL-WS-DR2C wall switch
This switch operates just like any standard residential light switch – however it takes 48-54v DC instead of 120VAC, and directly drives
up to 56 watts of LED bulbs without additional drivers. This Decorator style switch in a standard residential style outline fits into any
home, looks like any switch yet meets NEC article 411 for Low Voltage lighting.
Stand alone it operates as a simple switch for up to 10 single color or 5 tunable white LED's. For example, 8 LEDs with 6 watts each
can be connected, 2 sets of 4 in series to each of the 2 outputs on this switch / dimmer device. Or 4 LEDs with tunable white. Use
AWG 20/2 to connect to your LEDs in series – no CAT-5e tools are required to wire this device. Use AWG 16/3 or 18/3 to bring 48v (
or 24 to 52 volts ) and earth ground from a central power supply over to the switches. Daisy chain up to 100 watts on one home run
– minimizes the number of home runs per project.
A proven rocker switch and brightness slider leverages mass production of decorator switches - now for Low voltage applications – a
casual user requires no training, no App, no Internet to use this switch. Perfect, flicker free dimming from off to 0.1% to 100%. No
network setup is required. Temperature feedback assures excellent dimming. Max current of 660 mA allows up to 28 watts per
channel – two channels are provided for 56 watts total in single color mode.
For 3-way operation – a simple 2 wire link with AWG24 or better allows 2, 3, or an unlimited number of switches to control one set of
LED's. Any single pole switch found at Home Depot can be used to add a 3-Way remote switch, or dual pole switch for an unlimited
number of switch points. Momentary or rocker switches can be used. The AL-WS family includes many switch options.
AL-WS-DR2
DALI bus and 56 watts
WS WS- - - - DR WS DR DR2 2 2 2 C C C C v2 v2 v2 v2 DR
tor switch tor tor switch switch style switch style style style
/ Fans
/ Fans / Fans
r and dimmer r and dimmer r and dimmer
Way Way DALI Way DALI CCT DALI DALI
AL-WS-010v AL-WS-Carro
DALI bus and 0-10v Ceiling Fan Motor
CCT CCT CCT
AL-WS-DR1
Low cost 24 watt driver
1108 Lavaca Ste 110-489
Austin TX, 78701
512 377 6052
http://atx- - - - led.com http://atx http://atx http://atx led.com led.com led.com
AL-WS-M
Switch for 3-way
Momentary
