Vericom VW8 Series Assembly Instructions

10. Install the Grounding Wire Kit
Assemble the Grounding Wire Kit (F) as
shown in the picture below. Attach one end
to the Front Door and the other end to the
Front Frame.
PART NUMBER DESCRIPTION HEIGHT
VW8-4061G 6U, Glass Door 14.6" (363MM)
VW8-4091G 9U, Glass Door 19.7" (500MM)
VW8-4121G 12U, Glass Door 25" (635MM)
VW8-4121M 12U, Mesh Door 25" (635MM)
2511 Wescott Blvd. Knoxville, TN 37931 - vericomsolutions.com - +1 (865) 671-4455
WIDTH DEPTH
22.4" (570MM) 17.7" (450MM)
22.4" (570MM) 17.7" (450MM)
22.4" (570MM) 17.7" (450MM)
22.4" (570MM) 17.7" (450MM)
CAUTION. Please thoroughly read this instruction manual to ensure you
understand the assembly process.
• Before starting assembly, check that all parts are included and undamaged. If any parts are missing or damaged, contact us for
F
replenishment. Do not use damaged parts! Vericom is not responsible for damage or injury caused by incorrect assembly.
• Save all packaging materials for later use. Shipping this cabinet without the original packing materials may result in damage and could void
the warranty.
• Loading capacity should not exceed 133lbs. (60 kgs) including all components and accessories.

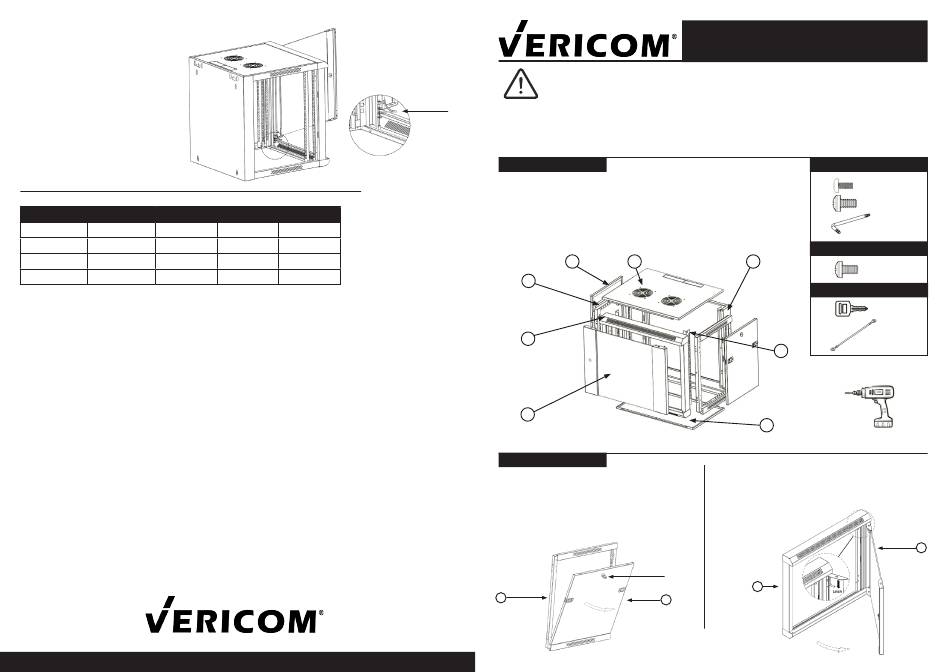

INCLUDED PARTS
5. Top Panel (qty. 1)
1. Front Door (qty. 1)
2. Front Frame (qty. 1) 6. Back Frame (qty. 1)
7. Rails (qty. 2)
3. Side Frames (qty. 2)
4. Side Panels (qty. 2) 8. Bottom Panel (qty. 1)
4
3
2
1
ASSEMBLY
1. Separation of Side Frames and Side Panels
Take out the Side Frames (3) and Side Panels
(4), insert the key (E) to open the Side Panel.
Then remove the Side Panels from the Side
Frames, keeping them separated.
3
VW8 SERIES WALL MOUNT CABINET
Assembly Instructions
5 6
7
8
2. Separation of Front Door and Front Frame
Open the Front Door (1) by key, pull the door
latch hinge pin downward, and remove the Front
Door from the Front Frame (2).
E
2
4
Cabinet Assembly
A
M5 Screws (qty.12)
B M6 Screws (qty.8)
Security Torx
C
Wrench (qty.1)
Equipment Installation
10-32 Screws with
D
washers (qty.10/20)
Others
E Keys (qty.3)
F
Grounding
Wire Kit (qty.1)
Tool Required
(not included)
Drill
1
