Step 1: Punching holes in the wall

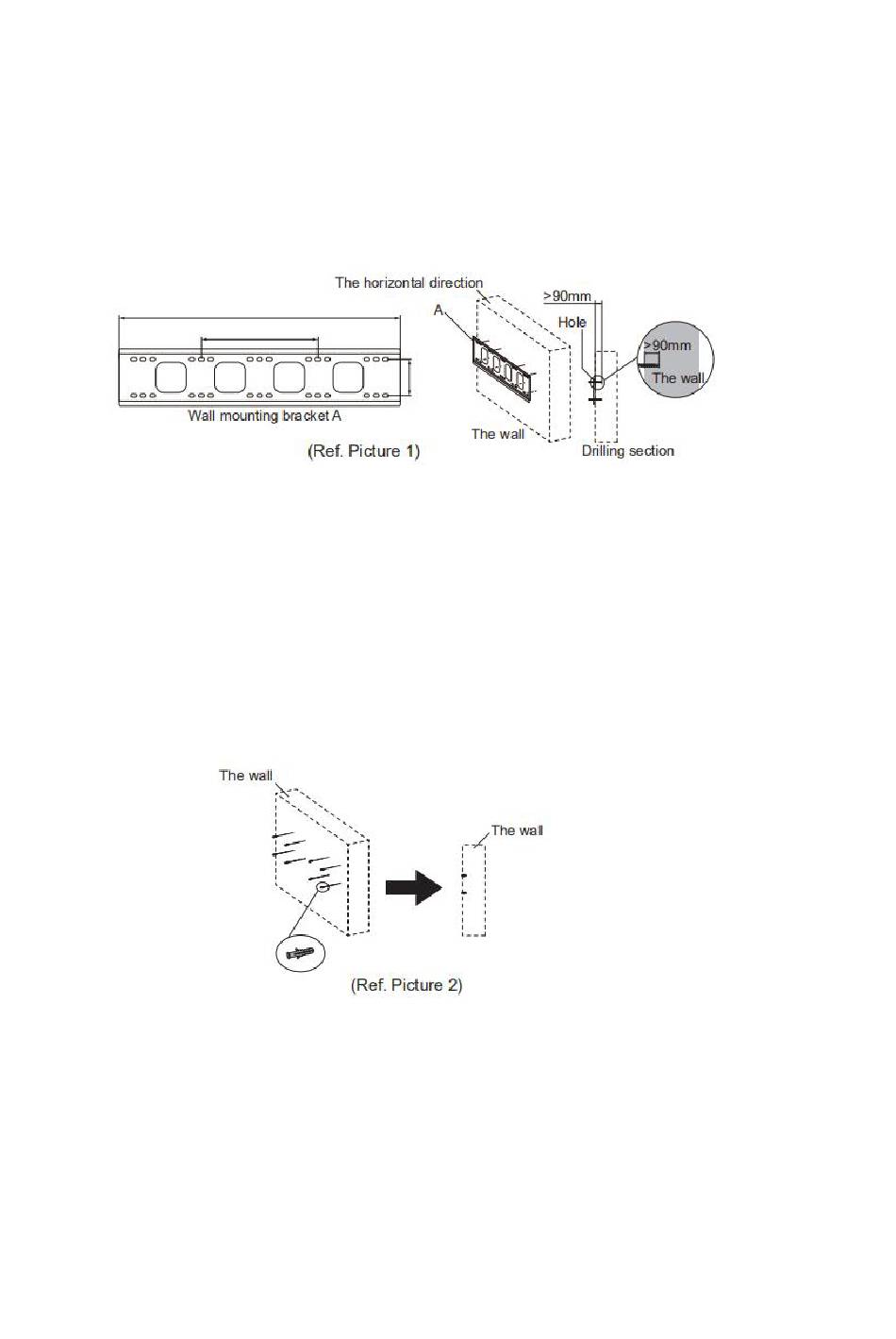

Mark 8 holes location on the wall according to wall mounting bracket A and use the drill bit to drill
the 8 holes. Depth of holes should not be less than 90mm (Ref. Picture 1)
Step 2: Expansion bolt installation
Press the wall anchors into 8 holes. (Ref. Picture 2)
Step 3:Wall mounting bracket A installation
Install the wall mounting bracket A with 8pcs screws and gaskets. Please ensure that the wall
mounting bracket A is installed horizontally. (Ref. Picture3)
