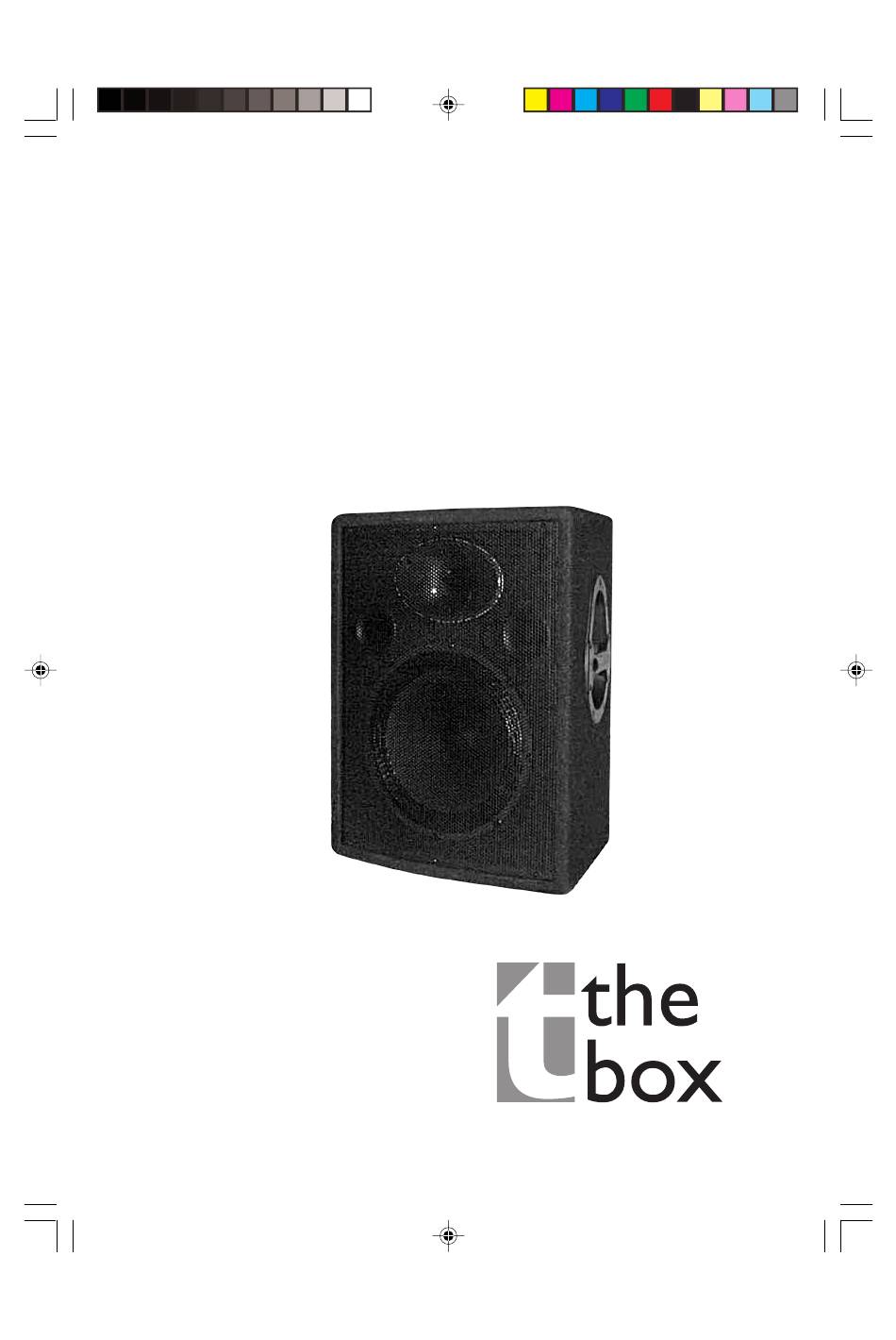

- Page 1 PA 12 ECO High-Performance 280-Watt PA Speaker with 12" Woofer and Dual Electro-Dynamic Drivers User’s manual DATA-MANFULL_PA12_ECO_ENG_Rev_A.PMD 20.02.2006, 14:56...
- Page 2 PA 12 ECO SAFETY INSTRUCTIONS 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this device near water. 6) Clean only with a dry cloth. 7) Be sure to mount your speakers on a solid, stable and level base or stand. Vibrating floors do not provide reliable support for speaker enclosures or stacks.
- Page 3 PA 12 ECO 1. CONNECTIONS Connections Two ¼“ loudspeaker inputs are wired in parallel. You can alternatively connect one of the connectors to the output on your power amp and tap into the signal from the amp once again on the second connector, in order to feed this signal into an additional loudspeaker. ¼"...
- Page 4 PA 12 ECO 2. POWER AMP RATING The power rating of your amp should be roughly twice the speaker load capacity. ATTENTION! When several loudspeakers are wired in parallel the overall impedance to be handled by the power amp can be calculated, as shown below, from the individual impedance values of the connected speakers: Your amplifier may be damaged if the actual impedance drops below its input impedance.
- Page 5 Shipping weight approx. 33.1 lbs. (15.0 kg) THOMANN MUSIKHAUS is constantly striving to maintain the highest professional standards. As a result of these efforts, modifications may be made from time to time to existing products without prior notice. Specifications and appearance may differ from those listed or illustrated.
