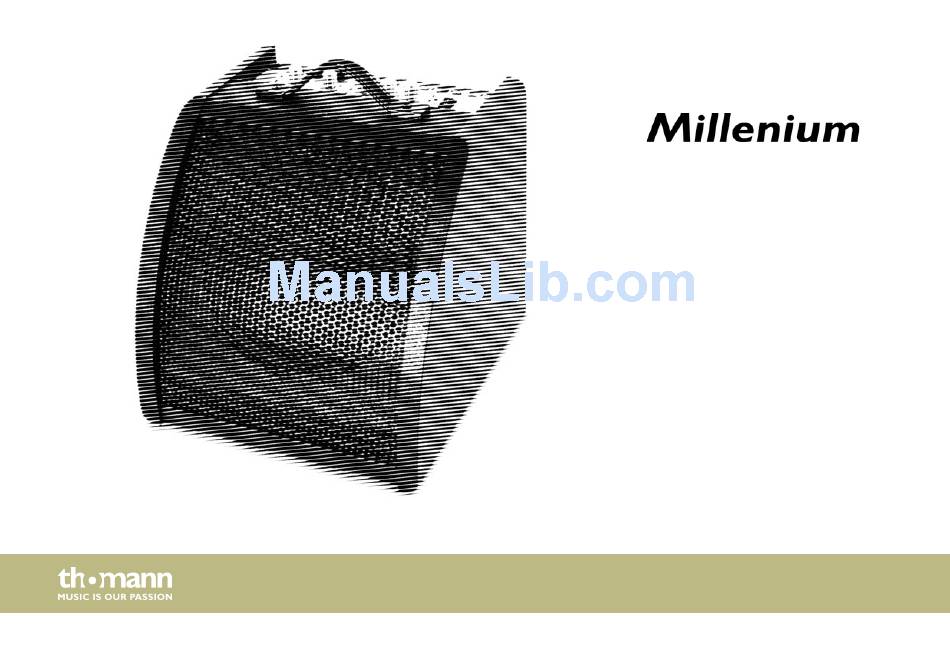

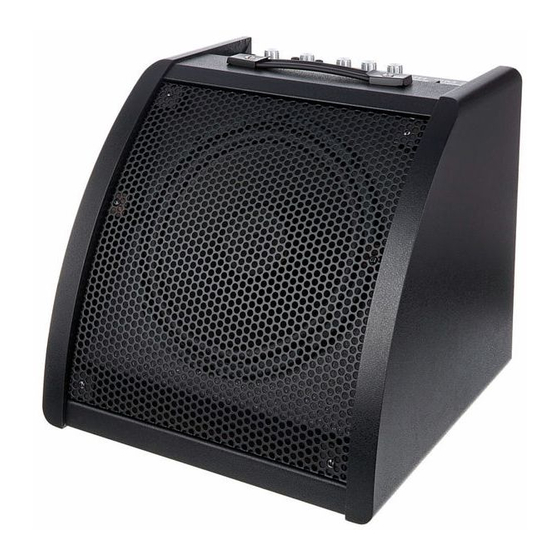

  • Page 1 DM-30 e-drum monitor user manual...
  • Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 20.07.2015, ID: 137566...

  • Page 3: Table Of Contents

    Table of contents Table of contents General notes............................... 4 1.1 Further information........................... 5 1.2 Notational conventions........................6 1.3 Symbols and signal words....................... 6 Safety instructions............................. 8 Features............................... 12 Installation and starting up ....................... 13 Connections and operating elements................... 14 Technical specifications........................19 Plug and connection assignment....................

  • Page 4: General Notes

    General notes General notes This manual contains important instructions for the safe operation of the unit. Read and follow the safety instructions and all other instructions. Keep the manual for future reference. Make sure that it is available to all those using the device. If you sell the unit please make sure that the buyer also receives this manual.

  • Page 5: Further Information

    General notes 1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download. Use the search function in the electronic version to find the topics of Keyword search interest for you quickly.

  • Page 6: Notational Conventions

    General notes 1.2 Notational conventions This manual uses the following notational conventions: Letterings The letterings for connectors and controls are marked by square brackets and italics. Examples: [VOLUME] control, [Mono] button. 1.3 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual.
  • Page 7 General notes Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. CAUTION! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in minor injury if it is not avoided.

  • Page 8: Safety Instructions

    Safety instructions Safety instructions Intended use This device is intended to be used to amplify and play back E-drums signals. Use the device only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or property damage.
  • Page 9 Safety instructions DANGER! Electric shock caused by high voltages inside Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts inside. DANGER! Electric shock caused by short-circuit Always use proper ready-made insulated mains cabling (power cord) with a pro‐ tective contact plug.
  • Page 10 Safety instructions CAUTION! Possible hearing damage The device can produce volume levels that may cause temporary or permanent hearing impairment. Over an extended period of time, even levels that seem to be uncritical can cause hearing damage. Decrease the volume level immediately if you experience ringing in your ears or hearing impairment.
  • Page 11 Safety instructions NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and strong vibrations. NOTICE! Power supply Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC outlet is protected by a residual current circuit breaker.

  • Page 12: Features

    Features Features Special features of the device: Inputs: – ‘Drum’: for the left and right outputs of an E-drum module – ‘AUX’: for source devices (e.g. MP3 player) or for the monitor mix of the rest of the band 10" two-way coaxial speakers Separate volume controls for ‘Drum’...

  • Page 13: Installation And Starting Up

    Installation and starting up Installation and starting up Unpack and carefully check that there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the device against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively.

  • Page 14: Connections And Operating Elements

    Connections and operating elements Connections and operating elements Top side e-drum monitor...
  • Page 15 Connections and operating elements 1 [DRUM IN L, R] 1/4" phone sockets to connect the E-drum module (left and right channel). 2 [AUX IN] 1/4" phone socket to connect a mixer or source device. 3 [DRUM VOLUME] Volume control for the E-drum channels. 4 [AUX VOLUME] Volume control for the AUX channel.
  • Page 16 Connections and operating elements 6 Power indicator LED Lights up when the device is switched on and operational. 7 [POWER] Mains switch. To turn on / off the device, keep the [POWER] button pressed in for a few seconds. If the device is not in use, it shuts off after 20 minutes automatically. To turn it back on, press the [POWER] button. e-drum monitor...
  • Page 17 Connections and operating elements Rear panel DM-30...
  • Page 18 Connections and operating elements 8 IEC chassis connector with fuse holder. Find technical specifications about replacement fuses and operating supply voltage beneath the fuse holder. e-drum monitor...

  • Page 19: Technical Specifications

    Technical specifications Technical specifications E-drum inputs 1/4" phone sockets ‘AUX’ input 1/4" phone socket Output power 30 W (RMS) Operating supply voltage AC 220 … 240 V , 50/60 Hz Fuse 1 A / 250 V, slow-blow Dimensions (W × D × H) 351 mm ×...

  • Page 20: Plug And Connection Assignment

    Plug and connection assignment Plug and connection assignment Introduction This chapter will help you select the right cables and plugs to connect your valuable equip‐ ment in such a way that a perfect sound experience is ensured. Please note these advices, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into the socket, an incorrect connection may result in a destroyed power amp, a short circuit or ‘just’...

  • Page 21: Protecting The Environment

    Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling.
  • Page 22 Notes e-drum monitor...
