Linortek Netbell-4K-C Wiring Instructions

1. Netbell-4K-C with Digital Clock Packing Lists
Netbell-4K Server
Digital Clock (01-880-00028) (1)
3M RJ45 Cable (01-390-00028) (1)
3M Power Cable (01-850-00029) (2)
12VAC Power Supply (01-850-00022) (1)
3M Bell Cables (01-850-00046) (4)
1 Set of Mounting Brackets
Netbell Setting Instructions
Packing Lists and Wiring Instruction
2. Wiring Instructions

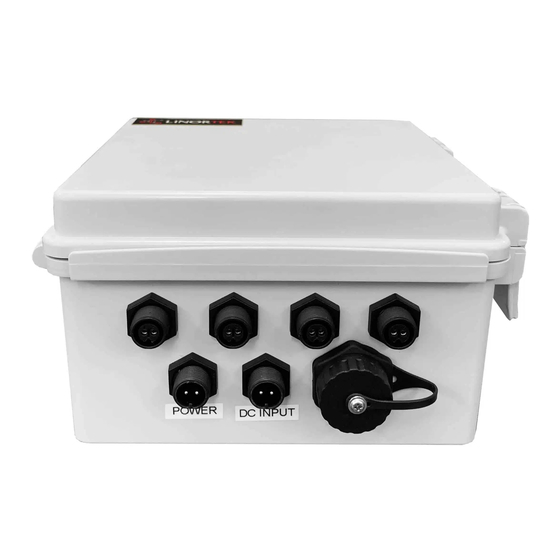

1) Install the Netbell-4K Server with the supplied mounting brackets.
2) Connect the digital clock to the clock connector labelled Clock.
3) Connect the power cable to the 12VAC power supply terminals and plug the power supply to a suitable AC
outlet, then connect the other side of the power cable CP connector into Server at the location labelled POWER.
4) Plug RJ45 cable into the NET connector, connect the other side of the RJ45 cable to the router or a network
switch or a computer Ethernet port.
5) Find the Netbell-4K IP address with the Discover Program. For details of how to find the IP address on your
network, please refer to the FIND THE IP ADDRESS ON YOUR NETWORK section on Netbell Setting Instructions.
Linor Technology, Inc.
Information subject to change without notice.
Packing Lists and Wiring Instructions

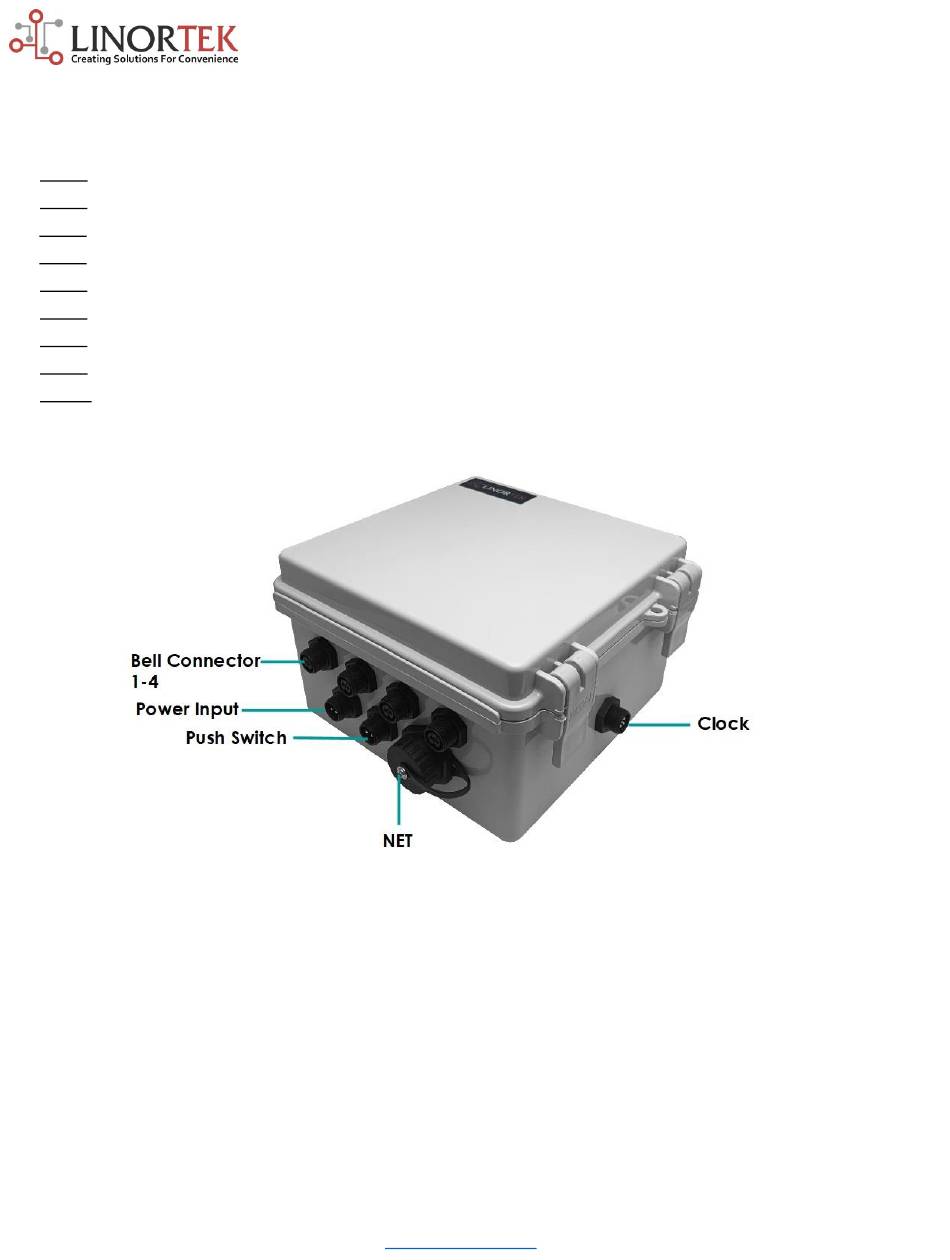

Netbell-4K Wiring Connector
www.linortek.com
102021 R002V001
Printed in U.S.A.
