NOTE:
•
Be very careful to prevent the unit (2.1kg) from falling when mounting on the wall.
•
Before mounting, check the wall strength and also if there a any Power cables behind
your drill point. (If you are unsure, ask a qualified technician for help)
•
Content of delivery does not include Screws and Dowels.
•
After screwed in the screws, check if they are tight
How to mount

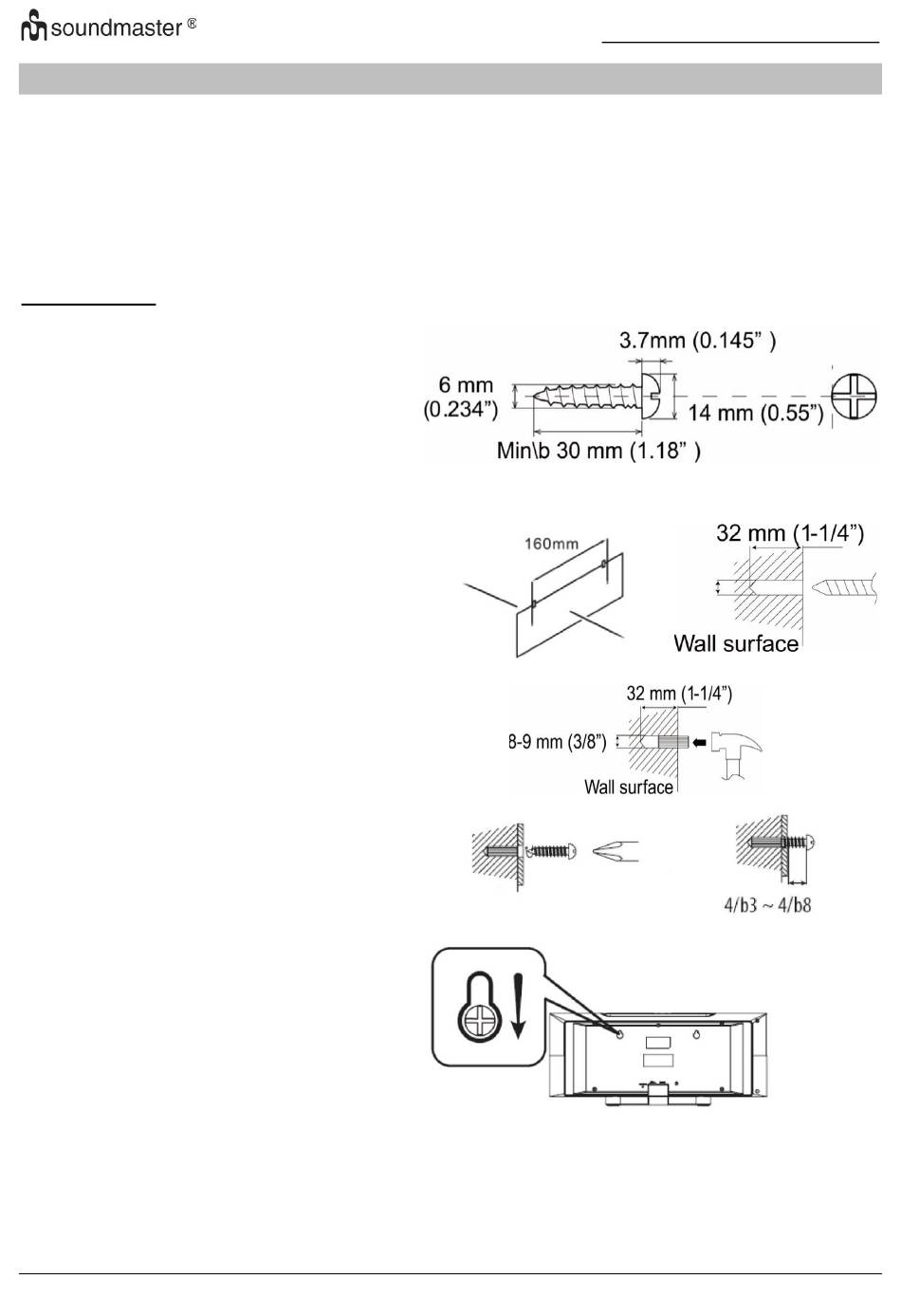

Use suitable screws and dowels for the
assembly. The dimensions of the screws
can be found in the graphic below.
Use a piece of paper as a drilling
template (not included) and mark the
holes approx. 160mm apart. Then attach
the drilling template to the wall in a
horizontal position. (As pictured)
Drill the two holes.
Attach the screws with proper dowels as
you can see in the pictures
Remove the base of the device by
pulling the two locks on the underside of
the base away from the device. Push the
stand foot back and pull it off. Now you
can hang up your device as shown in the
WALL MOUNTING
4
ICD1010 / English Instruction Manual
