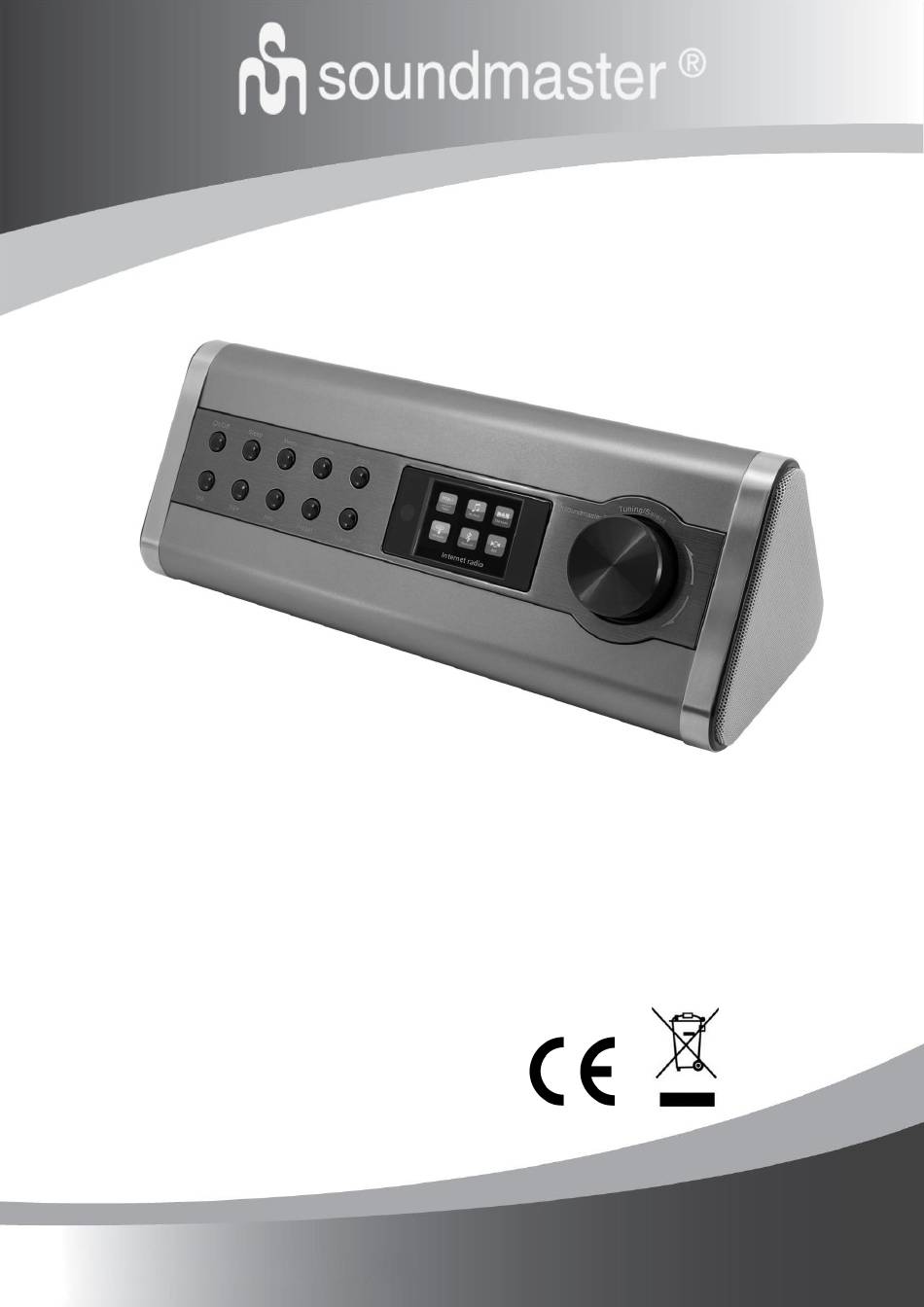

- Page 1 DEUTSCH ENGLISH FRANÇAIS Hersteller Wörlein GmbH Tel.: +49 9103/71670 Gewerbestrasse 12 Fax.: +49 9103/716712 D 90556 Cadolzburg Email. info@woerlein.com GERMANY Web: www.woerlein.com IR2023...
- Page 2 Safety, Environmental and Setup Instructions Use the device in dry indoor environments only. ENVIRONMENTAL PROTECTION Do not dispose of this product with the normal household Protect the device from humidity. waste at the end of its life cycle. Return it to a collection point for the recycling of electrical and electronic devices.
-
Page 3: Table Of Contents
IR2023 / English Instruction Manual Contents 1. Main Control Key List ………………………………………………………………… ……………………………………………………….. 1.1. Remote Control Key List ……………………………………………………………….. 2. Getting Started/Set up …………………………………………………………………… 2.1. Setup Wizard ………………………………………………………………………………. 3. Operation 3.1. Menu Navigation …………………………………………………………………… …………………………………………………………………………… 3.2. Presets ………………………………………………………………………………… 4. Settings ……………………………………………………………………….. - Page 4 IR2023 / English Instruction Manual ………………………………………………………. 22 6.10. Now playing information …………………………………………………………………… 22 6.11. USB Playback …………………………………………………………………… 22 7. DAB+ Radio Mode 7.1. Scanning for stations ……………………………………………………………… 22 ………………………………………………………………. 23 7.2. Selecting stations 7.3. Now playing information …………………………………………………………. 23 7.4. Settings …………………………………………………………………………… 23 8.
-
Page 5: Main Control Key List

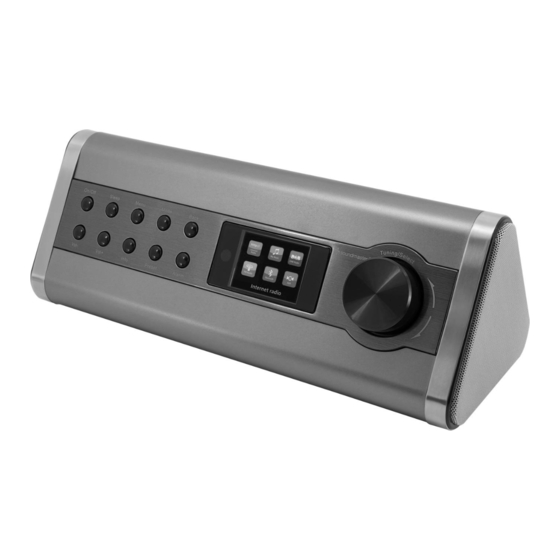

IR2023 / English Instruction Manual IR2023 Internet Radio 1. Main Control Key List Button Function/Usage On/Off Turn on or turn off the unit. Sleep When playing, standby after a set time. When alarm is sounding, snooze for a set time. -
Page 6: Remote Control Key List
IR2023 / English Instruction Manual Remote Control Key List The remote control operates in a similar way to the main unit control keys. Button Function Remote Control Photo Standby: Turn on or back to standby mode(showing clock and date).Cancel sleep function. -
Page 7: Getting Started/Set Up
IR2023 / English Instruction Manual 2. Getting Started/Set up The various listening modes have different requirements: Internet Radio requires a suitable internet broadband connection (usually via a local wired or wireless network). Music Player requires connection to a wired or wireless network. -
Page 8: Operation
IR2023 / English Instruction Manual 3. Operation To select a Mode, press Mode repeatedly until the required Mode splash screen is displayer. After a brief moment the unit switches to that mode. The last station or track previously used in that m ode is selected. - Page 9 IR2023 / English Instruction Manual My Favourites Internet Radio Menu Menu Local Germany Last Listened Menu Stations Station List > Podcasts System Settings My Added Stations Main Menu Help Music Player Menu <List of media libraries available on your network Menu Shared Media >...
-
Page 10: Presets
IR2023 / English Instruction Manual Normal|Flat|Jazz|Rock|Movie|Classic|Pop|News|My EQ|My EQ profile setup System Settings Network Menu Equaliser﹥ Network Wizard Network﹥ PBC Wlan Setup Time/Date﹥ View Settings Wlan region Language﹥ Manual settings Factory Reset Network profile Software Update Setup Wizard Info Set Time/Date Info Backlight﹥... -
Page 11: Settings
IR2023 / English Instruction Manual 4.Settings All the settings parameters for the unit are available on the Settings menu. Note: Settings included in the Setup Wizard are indicated w “wizard”. Settings menu options: Equaliser Network-wizard Time/Date-wizard Language Factory Reset Software update... -
Page 12: Network Wizard
IR2023 / English Instruction Manual To connect this unit to your network, you need one of the following: A WiFi wireless router, together with passphrase key if set. To select a network use either the Network wizard or Manual settings. -
Page 13: Pbc Setup (Wifi Protected Setup)
IR2023 / English Instruction Manual On Completion The unit connects to the selected network. If connecting fails, the unit returns to a previous screen to try again. To exit the process use the Back/Menu button If the network connection is lost, the unit automatically reconnects. -
Page 14: View Settings
IR2023 / English Instruction Manual 4.2.3 View Settings Displays the settings details for the current network setup, including: Active connections MAC Address Wlan region DHCP SSID IP Address Subnet mask Gateway address ... -
Page 15: Time/Date
IR2023 / English Instruction Manual 4.3. Time/Date Set Time/Date Auto Update Set Format 4.3.1 Set Time/Date (wizard) Set Time/Date The date and time are displayed as dd-mm-yyyy and 05-02-2013 hh:mm AM/PM with the first value, dd, active (flashing). -
Page 16: Language
IR2023 / English Instruction Manual 4.4. Language The default language is English. To change, select Menu > System settings > Language >then select your language. List of Language Language Language No. Language Language Language English Finish Italian Spanish Turkish Danish... -
Page 17: Info
IR2023 / English Instruction Manual Info Shows details of the current system including: SW Version: Software version number Radio ID: Unique code used to identify this particular radio device. Friendly name: (name by which the radio is identified on a network. -
Page 18: Last Listened
IR2023 / English Instruction Manual Last listened When Internet radio mode restarts, the last-listened station is selected. To select another recently used station, select Menu > Last listened then one of the stations listed. Most recent stations appear at the top of the list. -
Page 19: Search
IR2023 / English Instruction Manual Search You can also search through Internet broadcasts for stations or podcasts with particular keywords in their title. To search, select Menu > Station list>then either Search Stations > Enter a keyword by selecting characters then OK The search entry screens are similar in operation to the Wi-Fi passphrase entry screen. -
Page 20: Internet Radio Portal Registration
IR2023 / English Instruction Manual Internet radio portal registration The Frontier Silicon Internet radio portal website allows you to organise your favourites lists and also listen to Internet radio on a computer. Page 16... -
Page 21: Music Player Mode (Network)
IR2023 / English Instruction Manual To register your unit with the portal, switch to Internet radio mode as described in Section , and then obtain your radio's unique portal access code by selecting Menu >Station list > Help > Get access code>Write down the access code. -
Page 22: Shared Media
IR2023 / English Instruction Manual Shared media Select Menu > Shared media If you have set up shared media (see section 6.5 Setting up a music server for details), You should see an entry consisting of <computer name>\<Shared media name>, for example JB-Laptop: Audio . -
Page 23: Wake-On-Lan
IR2023 / English Instruction Manual 6.1.1 Wake-on-LAN When shared media is selected a list of available music servers is displayed. If a question mark appears before the server name, this indicates that the server has been seen before and supports Wake-on-LAN functionality, but cannot currently be found on the network. If a server with a question mark is selected by the user, the device will try to wake the server up and connect to it. -
Page 24: Setting Up A Music Server
In order for the unit to play music files from a computer, the computer must be set up to share files or media. UPnP media sharing allows devices like IR2023 to play music from a shared media library, navigating through tag menus such as Artist Album or Genre. If you are running a suitable server system such as a PC with Windows Media Player 10 or later (WMP), and your music l ibrary is well- tagged, then it is recommended to use media sharing Only the UPnP server needs to be set up. -
Page 25: Using The "Play To" Feature In Windows 7 To Stream Media
IR2023 / English Instruction Manual Using the “Play To” feature in Windows 7 to stream media One of the new Windows 7 features include a feature called “Play To” and this lets your PC running Windows 7 control the unit to push media and use as a universal remote control for your media collection. -
Page 26: Use "Play To" Elsewhere In Windows 7
IR2023 / English Instruction Manual Use “Play To” elsewhere in Windows 7 Outside of Windows Media Player, you can stream media to this unit with “Play To” by right -clicking music files. To select music files and stream them to this unit, follow these steps: 1. -
Page 27: Selecting Stations
IR2023 / English Instruction Manual To start a scan manually, select Menu > Scan. Once the scan is complete, the radio shows a list of available stations. A question mark before a station in a list indicates that the station is currently unavailable Depending on the cause of the loss of signal this may be only temporary. -
Page 28: Fm Radio Mode
IR2023 / English Instruction Manual Station order You can choose the order of the DAB station list to be either Alphanumeric,Ensemble or Valid. Ensemble lists groups of stations that are broadcast together on the same ensemble, for example BBC or South Wales local Valid lists valid stations first, alphanumerically, then off-air stations.. -
Page 29: Bluetooth Mode
Press mode>Bluetooth, The unit stays on Bluetooth condition and turn on music resource equipment with Bluetooth function. Then search for IR2023, if connecting successfully, the BT icon will be solid Press select to pause, press Select again to continue playing... -
Page 30: Sleep
IR2023 / English Instruction Manual Enable Off, Daily, Once, Weekends or Weekdays, Time: 12:00AM (adjust as necessary) Date:01-01-2007(adjust as necessary -this option is usually hidden and only required if “Once” is selected in the Enable field). Mode:: Buzzer, Internet radio, DAB or FM . -
Page 31: Undok - App
IR2023 / English Instruction Manual UNDOK – APP The IR2023 supports remote control from Apple iPhone, iPad and Android using the UNDOK app. The apps are available in Apple’s app store and Google’s android play. • Control all the modes of the IR4400, including internet radio, Media Player, USB playback, DAB, FM, Bluetooth and AUX-In;... - Page 32 IR2023 / English Instruction Manual Page 28...
-
Page 33: Technical Data
Cannot connect to Network down Check that network is working network B between a computer and the router Router restricts Obtain the IR2023 MAC address from access to listed Menu >System settings> MAC addresses Network >View settings and add to router list. -
Page 34: Glossary
IR2023 / English Instruction Manual Problem Cause Solutions Cannot connect to Internet connection Check that Internet is working for a Internet down computer connected to the same network Firewall preventing Check the following ports are open: access UDP and TCP ports 80 and 123;... - Page 35 Hiermit bestätigt Wörlein GmbH, dass sich dieses Gerät Härmed Wörlein GmbH deklarerar att denna enhet är i Übereinstimmung grundlegenden överensstämmelse med de grundläggande kraven och Anforderungen übrigen einschlägigen andra relevanta bestämmelser i direktiv 2014/53/EU. Bestimmungen der Richtlinie 2014/53/EU befindet. En kopia av försäkran om överensstämmelse kan erhållas Eine Kopie der Konformitätserklärung kann unter på...
