Carlon JSJ062 Installation And Operating Instructions

METER CAPACITIES
Model Size
⅝" X ½"
JSJ062
⅝" X ¾"
JSJ0621
¾" X ¾"
JSJ075
JSJ100 1" X 1"
JSJ150 1½"
JSJ200 2"
Note: ⅝" - 1" meter ends have straight threads, not tapered.
CARLON METER, INC. • PRODUCT WARRANTY
Carlon Meter, Inc.(hereinafter Carlon or "the company") warrants products of its manufacture to be free
of defects in material or workmanship. Liability under this warranty extends for twelve (12) months from
the date of purchase. Liability is limited to repair or replacement of any failed product or assembly
proven to be defective in material or workmanship upon manufacturer's examination. Removal and
installation costs are not included under this warranty. Manufacturer's liability shall never exceed selling
price of the meter or assembly in question. Carlon disclaims all liability for damage its products caused
as the result of improper installation, maintenance, use or attempts to operate products beyond their
intended functionality, intentionally or otherwise. Carlon is not responsible for damages, injuries or
expenses incurred through the use of its products. The above warranty is in lieu of all other warranties,
either expressed or implied. No agent of the company is authorized to alter or otherwise revise this
warranty.
*For complete specifications, visit our website
Normal Maximum
Flow Flow
10 GPM 20 GPM
10 GPM 20 GPM
15 GPM 30 GPM
25 GPM 50 GPM
50 GPM 100 GPM
80 GPM 160 GPM
01/16
www.carlonmeter.com
Installation and
Operating Instructions

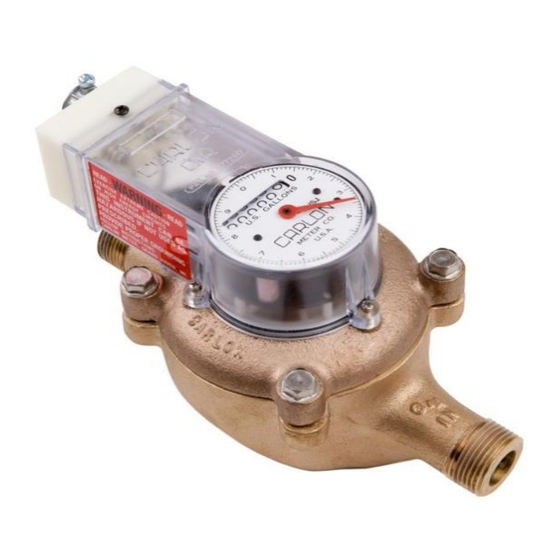

Model JSJ
Electric Contacting Meters
½" thru 2" sizes
Leaders in water measurement and control
1710 Eaton Drive
Grand Haven, MI 49417
Ph: (616) 842-0420
Fax: (616) 842-1265
E-mail: carlon@carlonmeter.com
Website: www.carlonmeter.com
®
